勞斯萊斯P625E柴油發電機配件CV14543凸輪軸

時間: 2016/7/20

勞斯萊斯P625E柴油發電機配件CV14543凸輪軸
序號 零配件號碼最近的部分號碼描述
1 CV14543 1 CV14543 凸輪軸
2 CV14544 1 CV14544 凸輪軸
3 CV13282 6 CV13282 螺拴
4 ST43057 6 2131 A010 墊圈
5 ST33298 1 ST33298 彈簧銷
6 CV17071 6 CV17071 固定螺釘
7 ST43056 6 2131 A008 墊圈
8 ST45778 1 ST45778 彈簧銷
12 CV19997 2 CV19997 推力板
13 ST47004 4 ST47004I 螺旋
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV14543 1 CV14543 CAMSHAFT
2 CV14544 1 CV14544 CAMSHAFT
3 CV13282 6 CV13282 BOLT
4 ST43057 6 2131A010 WASHER
5 ST33298 1 ST33298 SPRING PIN
6 CV17071 6 CV17071 SETSCREW
7 ST43056 6 2131A008 WASHER
8 ST45778 1 ST45778 SPRING PIN
12 CV19997 2 CV19997 THRUST PLATE
13 ST47004 4 ST47004I SCREW

序號 零配件號碼最近的部分號碼描述
3 CV398/1 1 CV398/1 半圓鍵
3 CV398/2 1 CV398/2 半圓鍵
3 CV398/3 1 CV398/3 半圓鍵
3 CV398/4 1 CV398/4 半圓鍵
3 CV398/5 1 CV398/5 半圓鍵
3 CV398 1 CV398 半圓鍵
5 CV5822 1 CV5822 墊片
6 CV19206 1 CV19206 密封 -油
7 ST44441 6 2314 C045 固定螺釘
8 ST43160 6 2134 A008 墊圈
9 ST43056 6 2131 A008 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
3 CV398/1 1 CV398/1 WOODRUFF KEY
3 CV398/2 1 CV398/2 WOODRUFF KEY
3 CV398/3 1 CV398/3 WOODRUFF KEY
3 CV398/4 1 CV398/4 WOODRUFF KEY
3 CV398/5 1 CV398/5 WOODRUFF KEY
3 CV398 1 CV398 WOODRUFF KEY
5 CV5822 1 CV5822 SHIM
6 CV19206 1 CV19206 SEAL - OIL
7 ST44441 6 2314C045 SETSCREW
8 ST43160 6 2134A008 WASHER
9 ST43056 6 2131A008 WASHER

序號 零配件號碼最近的部分號碼描述
1 CV1430 8 CV1430 板
2 CV9022 1 CV9022 凸緣
3 CV20110 1 CV20110 橋
4 CV1437 1 CV1437 夾合裝置
5 2314 J004 4 2314 J004 螺旋
6 CV1428 1 CV1428 飛輪
7 CV1430 8 CV1430 板
8 CV11619 6 CV11619 螺拴
9 CV17315 6 CV17315 螺帽
10 CV20737 2 CV20737 螺拴
11 CV2151 2 CV2151 螺帽
12 CV1433 16 CV1433 墊圈
13 CV9024 1 CV9024 螺帽
14 CV9023 1 CV9023 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV1430 8 CV1430 PLATE
2 CV9022 1 CV9022 FLANGE
3 CV20110 1 CV20110 SHAFT
4 CV1437 1 CV1437 CLAMPING DEVICE
5 2314J004 4 2314J004 SCREW
6 CV1428 1 CV1428 FLYWHEEL
7 CV1430 8 CV1430 PLATE
8 CV11619 6 CV11619 BOLT
9 CV17315 6 CV17315 NUT
10 CV20737 2 CV20737 BOLT
11 CV2151 2 CV2151 NUT
12 CV1433 16 CV1433 WASHER
13 CV9024 1 CV9024 NUT
14 CV9023 1 CV9023 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 1 GUARD
2 CV66737 1 CV66737 GUARD
3 CV66738 3 CV66738 BRACKET
4 2314C043 3 2314C043 SCREW
5 2131A008 3 2131A008 WASHER
6 2134A008 3 2134A008 WASHER

序號 零配件號 最近的零配件號 描述
1 1 凸輪軸傳動機構
2 1 凸輪軸傳動機構
3 1 凸輪軸傳動機構
4 1 燃油泵傳動機構
5 2 推拔軸承
6 CV70056 1 CV70056 混合傳動機構
6 CV7866 1 CV70056 混合傳動機構
7 CV7868 1 CV7868Z 混合傳動機構
10 CV17071 12 CV17071 固定螺釘
11 ST43056 12 2131 A008 墊圈
12 ST45778 1 ST45778 彈簧銷
13 CV13003 2 CV13003Z 車軸
16 CV8666 2 CV8666 鎖定板
17 CV11604 2 CV11604 推力板
18 CV430 4 CV430 止推片
19 CV1412 1 CV1412Z 惰輪傳動機構
22 CV12174 6 CV12174 螺拴
23 CV1414 1 CV1414Z 惰輪傳動機構
26 CV329 2 CV329 車軸
27 ST43058 2 2131 A012 墊圈
28 CV1415 1 CV1415 惰輪傳動機構
31 1 機機油泵傳動機構
32 CV1381 2 CV1381 止推片

1 CV14543 1 CV14543 凸輪軸
2 CV14544 1 CV14544 凸輪軸
3 CV13282 6 CV13282 螺拴
4 2131 A010 6 2131 A010 墊圈
5 ST45780 1 ST45780 合釘
6 CV17071 6 CV17071 固定螺釘
7 2131 A008 6 2131 A008 墊圈
8 ST45778 1 ST45778 彈簧銷
9 CV1214 1 CV1214 凸輪軸傳動機構
10 CV1215 1 CV1215 凸輪軸傳動機構
11 CV8563 1 CV8563 凸輪軸傳動機構

序號 零配件號 最近的零配件號 描述
1 CV6441 2 CV6441
4 CV20211 2 CV20211I 密封墊
5 OE46695 2 OE46695 TUBESTACK
6 2413695 4 2413695 密封O型圈
7 CV2863 2 CV2863 鎖定板
8 ST44407 2 ST44407 固定螺釘
9 2131 A008 2 2131 A008 墊圈
10 ST43502 28 ST43502 螺拴
11 2134 A008 28 2134 A008 墊圈
12 2131 A008 28 2131 A008 墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 ST47423 2 ST47423 INSERT
3 ST47453 41 ST47453 INSERT

序號 零配件號 最近的零配件號 描述
1 CV17244 1 CV17244 連接
2 ST91230 1 ST91230 水管
3 ST46411 2 ST46411 夾
4 ST43521 2 ST43521 螺拴
5 2134 A008 2 2134 A008 墊圈
6 2131 A008 2 2131 A008 墊圈
7 ST43507 4 ST43507 螺拴
8 2134 A008 4 2134 A008 墊圈
9 2131 A008 4 2131 A008 墊圈
10 CV17245 1 CV17245 連接
11 ST91642 1 ST91642 水管
12 ST46412 2 ST46412 夾
13 ST43515 1 ST43515 螺拴
14 2134 A008 1 2134 A008 墊圈
15 2131 A008 1 2131 A008 墊圈
16 CV600/M 1 CV600/M 線軸
17 ST10946 8 ST10946 密封O型圈
18 CV2976 1 CV2976 連接
19 ST43507 6 ST43507 螺拴
20 2134 A008 6 2134 A008 墊圈
21 2131 A008 6 2131 A008 墊圈
22 CV12708 1 CV12708 板
23 CV20218 1 CV20218 密封墊
24 ST20133 1 ST20133I 堵塞
25 ST49891 1 ST49891 墊圈
26 ST43506 4 ST43506 螺拴
27 2134 A008 4 2134 A008 墊圈
28 CV12689 2 CV12689 蓋
30 ST43513 4 ST43513 螺拴
31 2134 A008 4 2134 A008 墊圈
32 2131 A008 4 2131 A008 墊圈
33 ST43509 2 ST43509 螺拴
34 2134 A008 2 2134 A008 墊圈
35 2131 A008 2 2131 A008 墊圈
36 OE22105 2 OE22105 距離塊
37 ST43508 6 ST43508 螺拴
38 2134 A008 6 2134 A008 墊圈
39 2131 A008 6 2131 A008 墊圈

威爾遜Perkins發電機配件CV24559曲軸
序號 零配件號碼最近的部分號碼描述
1 CV13835 1 CV24559 曲軸總成 U965188B
2 CV24559 1 CV24559 曲軸 U965189B
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV13835 1 CV24559 CRANKSHAFT KIT U965188B
2 CV24559 1 CV24559 CRANKSHAFT U965189B
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV9183 1 CV24559 CRANKSHAFT U965188B
3 CV13458 6 CV13458 PLUG U965188B
4 CV1209 6 CV1209 SNAP RING U965188B
5 CV13830 3 CV13830 PLUG U965188B
6 ST10609 6 ST10609 SEAL - O RING U965188B

序號 零配件號 最近的零配件號 描述
1 CV14877/1 Z 1 CV14877/1 Z 缸體總成
11 KRP3106/010 1 KRP3106/010 曲軸瓦 -U/S
11 KRP3106/020 1 KRP3106/020 曲軸瓦 -U/S
11 KRP3106/030 1 KRP3106/030 曲軸瓦 -U/S
11 KRP3106/040 1 KRP3106/040 曲軸瓦 -U/S
11 KRP3106 1 KRP3106 曲軸瓦
12 KRP3203/013 1 KRP3203/013 止推片 -O/S
12 KRP3203 1 KRP3203 止推片組件
14 CV275 2 CV275 堵塞
24 CV9116 6 CV19408 活塞冷卻噴頭
26 2314 C045 12 2314 C045 固定螺釘
27 ST43160 12 2134 A008 墊圈
31 CV1418 1 CV1418 板
32 CV1419 1 CV1419 密封墊
33 CV12769 1 CV12769 板
34 CV1421 1 CV68115 密封墊
35 2314 C043 22 2314 C043 固定螺釘
36 ST20606 22 ST20606 墊圈
39 ST45779 8 ST45779 合釘
40 ST20704 5 ST20704 堵塞
41 OE7669 4 OE7669 密封O型圈
42 CV13080 4 CV13080 堵塞
43 ST43324 4 ST43324 堵塞
46 CV1470 4 CV1470 線軸
47 CV7789 45 CV7789 圖釘
48 CV7790 35 CV7790 圖釘
49 CV7788 80 CV7788 螺帽
50 OE46176 80 OE46176I 墊圈
51 CV2910 1 CV2910 堵塞
52 CV11756 2 CV20002 固定螺釘
53 ST43333 1 ST43333 堵塞
54 ST43330 1 ST43330 堵塞

序號 零配件號 最近的零配件號 描述
2 7 帽
3 CV270 1 CV270 合釘
4 CV278 8 CV24546 固定螺釘
5 ST20707 1 ST20707 堵塞
6 ST43706 8 ST43706 螺拴
7 ST43060 8 2131 A016 墊圈
8 ST43330 12 ST43330 堵塞
9 ST43326 10 ST43326 堵塞
10 ST33606 4 ST33606 堵塞
13 CV274 17 CV274 凸輪軸襯套
15 ST43322 20 ST43322 堵塞
16 ST43326 1 ST43326 堵塞
17 ST43657 6 ST43657 螺拴
18 CV9171 6 CV9171 墊圈
20 CV11572 1 CV11572 凸輪軸襯套
21 ST43328 2 ST43328 堵塞
22 ST20701 29 ST20701 堵塞
23 CV1271 12 固定螺釘
25 ST20702 2 ST20702 堵塞
28 ST43324 8 ST43324 堵塞
29 ST46076 1 ST46076I 堵塞
30 ST49851 1 ST49851 墊圈
37 ST20133 2 ST20133I 堵塞
38 ST49891 4 ST49891 墊圈

序號 零配件號 最近的零配件號 描述
ST20139 2 ST20139 堵塞
ST49860 2 ST49860 墊圈
1 CV5520 1 室
3 CV2124 8 CV2124 圖釘
4 2318 A208 8 2318 A208 螺帽
5 2134 A008 8 2134 A008 墊圈
6 2131 A008 8 2131 A008 墊圈
7 CV7210/1 2 CV7210/1 冷卻器回廊組件
7 CV7210/1 2 CV7210/1 冷卻器回廊組件
7 CV7210 2 CV7210/1 冷卻器回廊
10 CV20232 4 CV72181 密封墊
11 ST43502 48 ST43502 螺拴
12 2134 A008 48 2134 A008 墊圈
13 2131 A008 48 2131 A008 墊圈
14 CV8940 1 CV8940 室

序號 零配件號 最近的零配件號 描述
1 CV13835 1 CV24559 曲軸組件

序號 零配件號 最近的零配件號 描述
2 1 曲軸
3 CV13458 6 CV13458 堵塞
4 CV1209 6 CV1209 扣環
5 CV13830 3 CV13830 堵塞
6 ST10609 6 ST10609 密封O型圈

威爾遜P880E柴油發電機組配件CV19370/1缸體
序號 零配件號碼最近的部分號碼描述
1 CV19370/1 1 CV19370/1 缸體組件
22 ST20707 1 ST20707 栓塞
23 KRP3106 1 KRP3106 主軸瓦
(23) KRP3106/010 1 KRP3106/010 主軸瓦 -U/S
(23) KRP3106/020 1 KRP3106/020 主軸瓦 -U/S
(23) KRP3106/030 1 KRP3106/030 主軸瓦 -U/S
(23) KRP3106/040 1 KRP3106/040 主軸瓦 -U/S
24 KRP3203 1 KRP3203 止推片
(24) KRP3203/013 1 KRP3203/013 插入墊圈組件 -O/S
25 CV275 2 CV275 栓塞
26 CV9171 6 CV9171 墊圈
27 ST20702 2 ST20702 栓塞
28 CV19769 4 CV19769 套筒
29 OE2970 4 OE2970 螺旋
30 ST20133 1 ST20133I 栓塞
31 ST49891 1 ST49891 墊圈
32 CV1418 1 CV1418 板
33 CV19540 1 CV19540 切片密封墊的板
34 CV19785 1 CV19785 板
35 CV19542 1 CV19542 切片密封墊的板
36 ST44437 22 2314 C043 固定螺釘
37 OE48475 22 OE48475 墊圈
38 OE7669 4 OE7669 密封O圈
39 ST45779 8 ST45779 合釘
40 ST20704 5 ST20704 栓塞
41 2314 C045 24 2314 C045 固定螺釘
42 CV12198 3 CV12198 排泄栓塞
43 ST49891 3 ST49891 墊圈
44 2131 A008 22 2131 A008 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19370/1 1 CV19370/1 CYLINDER BLOCK ASSEMBLY
22 ST20707 1 ST20707 PLUG
23 KRP3106 1 KRP3106 MAIN BEARING KIT
(23) KRP3106/010 1 KRP3106/010 MAIN BEARING KIT - U/S
(23) KRP3106/020 1 KRP3106/020 MAIN BEARING KIT - U/S
(23) KRP3106/030 1 KRP3106/030 MAIN BEARING KIT - U/S
(23) KRP3106/040 1 KRP3106/040 MAIN BEARING KIT - U/S
24 KRP3203 1 KRP3203 THRUST WASHER KIT
(24) KRP3203/013 1 KRP3203/013 THRUST WASHER KIT - O/S
25 CV275 2 CV275 PLUG
26 CV9171 6 CV9171 WASHER
27 ST20702 2 ST20702 PLUG
28 CV19769 4 CV19769 SLEEVE
29 OE2970 4 OE2970 SCREW
30 ST20133 1 ST20133I PLUG
31 ST49891 1 ST49891 WASHER
32 CV1418 1 CV1418 PLATE
33 CV19540 1 CV19540 GASKET - BLANKING PLATE
34 CV19785 1 CV19785 PLATE
35 CV19542 1 CV19542 GASKET - BLANKING PLATE
36 ST44437 22 2314C043 SETSCREW
37 OE48475 22 OE48475 WASHER
38 OE7669 4 OE7669 SEAL - O RING
39 ST45779 8 ST45779 DOWEL
40 ST20704 5 ST20704 PLUG
41 2314C045 24 2314C045 SETSCREW
42 CV12198 3 CV12198 DRAIN PLUG
43 ST49891 3 ST49891 WASHER
44 2131A008 22 2131A008 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CV20811 12 CV20811 WASHER
2 7 CAP
2 7 CAP
3 CV270 1 CV270 DOWEL
4 CV24547 8 CV24547 BOLT
5 ST43706 8 ST43706 BOLT
6 ST43060 8 2131A016 WASHER
7 ST43330 12 ST43330 PLUG
8 ST43326 2 ST43326 PLUG
9 ST33606 4 ST33606 PLUG
10 CV72010 12 CV72010 LINER - SLIP FIT
10 CV19912 12 CV72010 LINER - SLIP FIT
(10) CV11401 12 CV11401 LINER - SLIP FIT
(10) CV11402 12 CV11402 LINER - OVERSIZE
11 CV274 17 CV274 CAMSHAFT BUSH
12 ST43322 20 ST43322 PLUG
13 ST43326 1 ST43326 PLUG
14 ST43657 6 ST43657 BOLT
15 CV11572 1 CV11572 CAMSHAFT BUSH
16 CV24547 12 CV24547 BOLT
16 ST43729 12 CV24547 BOLT
17 ST20701 29 ST20701 PLUG
18 ST43328 2 ST43328 PLUG
19 ST43324 16 ST43324 PLUG
20 CV13080 4 CV13080 PLUG
21 ST43324 4 ST43324 PLUG

威爾遜P800E柴油發電機組配件CV24521汽缸蓋組件
序號 零配件號碼最近的部分號碼描述
1 CV19938 4 CV24521 汽缸蓋組件
4 CV20815 6 CV20815 閥座氣門座圈
4 CV21070 1 CV21070 氣門座圈
29 CV13202 4 CV13202 密封墊 - 汽缸蓋
30 CV12853 40 CV69478 固定螺釘
31 CV1472 12 CV1472 固定螺釘
32 CV12855 36 CV69480 固定螺釘
33 OE43640 12 OE43640 栓塞
34 ST10603 12 ST10603 密封O圈
35 ST45778 8 ST45778 彈簧銷
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19938 4 CV24521 CYLINDER HEAD KIT
4 CV20815 6 CV20815 VALVE SEAT INSERT
4 CV21070 1 CV21070 INSERT
29 CV13202 4 CV13202 GASKET - CYLINDER HEAD
30 CV12853 40 CV69478 SETSCREW
31 CV1472 12 CV1472 SETSCREW
32 CV12855 36 CV69480 SETSCREW
33 OE43640 12 OE43640 PLUG
34 ST10603 12 ST10603 SEAL - O RING
35 ST45778 8 ST45778 SPRING PIN
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV18421/2 1 CV18421/2 CYLINDER HEAD KIT
7 CV17435 6 CV21058 INTAKE VALVE
8 OE43638 12 OE43638 SEAT
9 CV11403 12 CV11403 VALVE SPRING
10 OE43262 6 OE43262 SEAT
11 OE42571 12 OE42571 VALVE COLLET
12 CV17434 6 Check History EXHAUST VALVE
13 CV18761 6 CV18761 ROTATOR
14 OE42570 12 OE42570 VALVE COLLET
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
3 CV20814 6 CV20814 VALVE SEAT INSERT
3 CV21069 1 CV21069 INSERT
5 OE47572 6 OE47572 VALVE GUIDE
6 OE47573 6 OE47573 VALVE GUIDE
17 CV14134 3 CV14134 SLEEVE
18 OE43636 6 OE43636 VALVE GUIDE
19 ST20701 1 ST20701 PLUG
20 ST43322 9 ST43322 PLUG
21 ST43309 3 ST43309 PLUG
22 ST43317 10 ST43317 PLUG

威爾遜P750E柴油發電機組配件CV24526搖臂組件
序號 零配件號碼最近的部分號碼描述
1 CV19786 4 CV24526 搖臂組件
16 CV24523 24 CV24523 過橋
16 24 過橋 U964964B
16 OE52035 24 CV24523 過橋 U964963B
19 ST43612 12 ST43612 固定螺釘
20 2134 A012 12 2134 A012 墊圈
21 CV285 24 CV285 PUSHROD
22 CV5832 24 CV70122 挺桿
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19786 4 CV24526 ROCKER SHAFT ASSEMBLY
16 CV24523 24 CV24523 BRIDGE
16 24 BRIDGE U964964B
16 OE52035 24 CV24523 BRIDGE U964963B
19 ST43612 12 ST43612 SETSCREW
20 2134A012 12 2134A012 WASHER
21 CV285 24 CV285 PUSHROD
22 CV5832 24 CV70122 TAPPET

序號 零配件號碼最近的部分號碼描述
2 CV19764 1 CV19764 搖臂軸橋
3 CV18387 2 CV18387 栓塞
4 CV19765 3 托架
5 CV18389 1 CV18389 固定螺釘
6 0920053 1 0920053 墊圈
7 CV19767 2 CV19767 搖臂軸橋彈簧
8 CV18384/1 6 CV24478/1 搖臂
12 ST43506 6 ST43506 螺拴
13 0920053 6 0920053 墊圈
14 CV19768 1 CV19768 油管
15 ST10528 2 ST10528 封閉砂條
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV19764 1 CV19764 ROCKER SHAFT
3 CV18387 2 CV18387 PLUG
4 CV19765 3 Check History PEDESTAL
5 CV18389 1 CV18389 SETSCREW
6 0920053 1 0920053 WASHER
7 CV19767 2 CV19767 ROCKER SHAFT SPRING
8 CV18384/1 6 CV24478/1 ROCKER ARM
12 ST43506 6 ST43506 BOLT
13 0920053 6 0920053 WASHER
14 CV19768 1 CV19768 OIL PIPE
15 ST10528 2 ST10528 SEALING RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
9 CV18354 1 CV18354 ROCKER ARM BUSH
10 OE41699 1 OE41699 SCREW
11 OE42293 1 OE42293 LOCKNUT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
17 OE41798 1 OE41798 SCREW
18 OE42293 1 OE42293 LOCKNUT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV18907 4 CV18907 CYLINDER HEAD COVER
2 CV19094 4 CV19094 GASKET - ROCKER BOX COVER
3 2314H016 20 2314K166 SCREW
4 OE48475 28 OE48475 WASHER
5 2314H005 8 2314H005 SCREW

序號 零配件號碼最近的部分號碼描述
1 CV1214 1 CV1214 凸輪軸傳動機構
2 CV8563 1 CV8563 凸輪軸傳動機構
3 CV1215 1 CV1215 凸輪軸傳動機構
4 CV11560 1 CV11560 燃油泵傳動機構
5 CV8870 2 CV8870 推拔橋承
6 CV70056 1 CV70056 混合傳動機構
6 CV7866 1 CV70056 混合傳動機構
7 CV7868Z 1 CV7868Z 混合傳動機構
10 CV17071 12 CV17071 固定螺釘
11 ST43056 12 2131 A008 墊圈
12 ST45778 1 ST45778 彈簧銷
13 CV13003Z 2 CV13003Z 車橋
16 CV8666 2 CV8666 鎖定板
17 CV11604 2 CV11604 推力板
18 CV430 4 CV430 推力墊圈
19 CV1412Z 1 CV1412Z 惰輪傳動機構
22 CV12174 6 CV12174 螺拴
23 CV1414Z 1 CV1414Z 惰輪傳動機構
26 CV329 2 CV329 車橋
27 KU10010 2 KU10010 定位鍵墊圈 20/06/97
27 ST43058 2 2131 A012 墊圈 19/06/97
28 CV1415Z 1 CV1415 惰輪傳動機構
31 CV1274 1 CV1274 機油泵傳動機構
32 CV1381 2 CV1381 推力墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV1214 1 CV1214 CAMSHAFT GEAR
2 CV8563 1 CV8563 CAMSHAFT GEAR
3 CV1215 1 CV1215 CAMSHAFT GEAR
4 CV11560 1 CV11560 FUEL INJECTION PUMP GEAR
5 CV8870 2 CV8870 TAPER BEARING
6 CV70056 1 CV70056 COMPOUND GEAR
6 CV7866 1 CV70056 COMPOUND GEAR
7 CV7868Z 1 CV7868Z COMPOUND GEAR
10 CV17071 12 CV17071 SETSCREW
11 ST43056 12 2131A008 WASHER
12 ST45778 1 ST45778 SPRING PIN
13 CV13003Z 2 CV13003Z AXLE
16 CV8666 2 CV8666 LOCKING PLATE
17 CV11604 2 CV11604 THRUST PLATE
18 CV430 4 CV430 THRUST WASHER
19 CV1412Z 1 CV1412Z IDLER GEAR
22 CV12174 6 CV12174 BOLT
23 CV1414Z 1 CV1414Z IDLER GEAR
26 CV329 2 CV329 AXLE
27 KU10010 2 KU10010 TAB WASHER 20/06/97
27 ST43058 2 2131A012 WASHER 19/06/97
28 CV1415Z 1 CV1415 IDLER GEAR
31 CV1274 1 CV1274 OIL PUMP GEAR
32 CV1381 2 CV1381 THRUST WASHER

威爾遜柴油發電機組配件CVK523/3活塞及缸套組件
序號 零配件號碼最近的部分號碼描述
1 CVK523/3 1 CVK523/3 活塞及缸套組件
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CVK523/3 1 CVK523/3 PISTON AND LINER KIT

序號 零配件號 最近的零配件號 描述
1 CVK523/3 1 CVK523/3 活塞及缸套組件

序號 零配件號 最近的零配件號 描述
2 CV66887/1 1 CV66887/1 活塞組件
7 CVK564 1 CVK564 活塞環組件
8 CV72010 1 CV72010 汽缸套
8 CV19912 1 CV72010 汽缸套
(8) CV11401 1 CV11401 汽缸套
(8) CV11402 1 CV11402 缸套 -特大號

序號 零配件號 最近的零配件號 描述
2 1 活塞
3 1 軸頭銷
4 CV19330 1 CV19330 CIRCLIP
5 CV19330 1 CV19330 CIRCLIP

勞斯萊斯3012 704kw柴油發電機組活塞總成CV66887/1
序號 零配件號碼最近的部分號碼描述
2 CV66887/1 1 CV66887/1 活塞組件
7 CVK564 1 CVK564 活塞環組件
8 CV72010 1 CV72010 缸套
8 CV19912 1 CV72010 缸套
(8) CV11401 1 CV11401 缸套
(8) CV11402 1 CV11402 缸套 -特大號
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV66887/1 1 CV66887/1 PISTON KIT
7 CVK564 1 CVK564 PISTON RING KIT
8 CV72010 1 CV72010 LINER - SLIP FIT
8 CV19912 1 CV72010 LINER - SLIP FIT
(8) CV11401 1 CV11401 LINER - SLIP FIT
(8) CV11402 1 CV11402 LINER - OVERSIZE
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 PISTON
3 1 GUDGEON PIN
4 CV19330 1 CV19330 CIRCLIP
5 CV19330 1 CV19330 CIRCLIP

珀金斯PERKINS發電機配件CV6424/A1連桿直銷中心
珀金斯威爾遜3012柴油機配件CV6424/A1連桿
序號 零配件號碼最近的部分號碼描述
1 CV19327/1 12 活塞組件
5 CVK564 12 CVK564 活塞環組件
6 CV6424 12 連桿組件
(6) CV6424/A1 12 CV6424/A1 連桿組件 4.350-4.375 KG
(6) CV6424/A2 12 CV6424/A2 連桿組件 4.375-4.400 KG
(6) CV6424/A3 12 CV6424/A3 連桿組件 4.400-4.425 KG
(6) CV6424/A4 12 CV6424/A4 連桿組件 4.425-4.450 KG
(6) CV6424/B1 12 CV6424/B1 連桿組件 4.450-4.475 KG
(6) CV6424/B2 12 CV6424/B2 連桿組件 4.475-4.500 KG
(6) CV6424/B3 12 CV6424/B3 連桿組件 4.500-4.525 KG
(6) CV6424/B4 12 CV6424/B4 連桿組件 4.525-4.550 KG
(6) CV6424/C1 12 CV6424/C1 連桿組件 4.550-4.575 KG
(6) CV6424/C2 12 CV6424/C2 連桿組件 4.575-4.600 KG
(6) CV6424/C3 12 CV6424/C3 連桿組件 4.600-4.625 KG
(6) CV6424/C4 12 CV6424/C4 連桿組件 4.625-4.650 KG
(6) CV6424/D1 12 CV6424/D1 連桿組件 4.650-4.675 KG
(6) CV6424/D2 12 CV6424/D2 連桿組件 4.675-4.700 KG
(6) CV6424/D3 12 CV6424/D3 連桿組件 4.700-4.725 KG
(6) CV6424/D4 12 CV6424/D4 連桿組件 4.725-4.750 KG
(6) CV6424/E1 12 CV6424/E1 連桿組件 4.750-4.775 KG
(6) CV6424/E2 12 CV6424/E2 連桿組件 4.775-4.800 KG
(6) CV6424/E3 12 CV6424/E3 連桿組件 4.800-4.825 KG
(6) CV6424/E4 12 CV6424/E4 連桿組件 4.825-4.850 KG
(6) CV6424/Y1 12 CV6424/Y1 連桿組件 4.150-4.175 KG
(6) CV6424/Y2 12 CV6424/Y2 連桿組件 4.175-4.200 KG
(6) CV6424/Y3 12 CV6424/Y3 連桿組件 4.200-4.225 KG
(6) CV6424/Y4 12 CV6424/Y4 連桿組件 4.225-4.250 KG
(6) CV6424/Z1 12 CV6424/Z1 連桿組件 4.250-4.275 KG
(6) CV6424/Z2 12 CV6424/Z2 連桿組件 4.275-4.300 KG
(6) CV6424/Z3 12 CV6424/Z3 連桿組件 4.300-4.325 KG
(6) CV6424/Z4 12 CV6424/Z4 連桿組件 4.325-4.350 KG
12 KRP3007 3 KRP3007 連桿襯套
(12) KRP3007/010 3 KRP3007/010 連桿瓦組件 -U/S
(12) KRP3007/020 3 KRP3007/020 連桿瓦組件 -U/S
(12) KRP3007/030 3 KRP3007/030 連桿瓦組件 -U/S
(12) KRP3007/040 3 KRP3007/040 連桿瓦組件 -U/S
13 CV19408 6 CV19408 活塞冷卻噴頭
14 ST43502 12 ST43502 螺拴
15 0920053 12 0920053 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19327/1 12 Check History PISTON KIT
5 CVK564 12 CVK564 PISTON RING KIT
6 CV6424 12 Check History CON ROD ASSEMBLY
(6) CV6424/A1 12 CV6424/A1 CON ROD ASSEMBLY 4.350-4.375KG
(6) CV6424/A2 12 CV6424/A2 CON ROD ASSEMBLY 4.375-4.400KG
(6) CV6424/A3 12 CV6424/A3 CON ROD ASSEMBLY 4.400-4.425KG
(6) CV6424/A4 12 CV6424/A4 CON ROD ASSEMBLY 4.425-4.450KG
(6) CV6424/B1 12 CV6424/B1 CON ROD ASSEMBLY 4.450-4.475KG
(6) CV6424/B2 12 CV6424/B2 CON ROD ASSEMBLY 4.475-4.500KG
(6) CV6424/B3 12 CV6424/B3 CON ROD ASSEMBLY 4.500-4.525KG
(6) CV6424/B4 12 CV6424/B4 CON ROD ASSEMBLY 4.525-4.550KG
(6) CV6424/C1 12 CV6424/C1 CON ROD ASSEMBLY 4.550-4.575KG
(6) CV6424/C2 12 CV6424/C2 CON ROD ASSEMBLY 4.575-4.600KG
(6) CV6424/C3 12 CV6424/C3 CON ROD ASSEMBLY 4.600-4.625KG
(6) CV6424/C4 12 CV6424/C4 CON ROD ASSEMBLY 4.625-4.650KG
(6) CV6424/D1 12 CV6424/D1 CON ROD ASSEMBLY 4.650-4.675KG
(6) CV6424/D2 12 CV6424/D2 CON ROD ASSEMBLY 4.675-4.700KG
(6) CV6424/D3 12 CV6424/D3 CON ROD ASSEMBLY 4.700-4.725KG
(6) CV6424/D4 12 CV6424/D4 CON ROD ASSEMBLY 4.725-4.750KG
(6) CV6424/E1 12 CV6424/E1 CON ROD ASSEMBLY 4.750-4.775KG
(6) CV6424/E2 12 CV6424/E2 CON ROD ASSEMBLY 4.775-4.800KG
(6) CV6424/E3 12 CV6424/E3 CON ROD ASSEMBLY 4.800-4.825KG
(6) CV6424/E4 12 CV6424/E4 CON ROD ASSEMBLY 4.825-4.850KG
(6) CV6424/Y1 12 CV6424/Y1 CON ROD ASSEMBLY 4.150-4.175KG
(6) CV6424/Y2 12 CV6424/Y2 CON ROD ASSEMBLY 4.175-4.200KG
(6) CV6424/Y3 12 CV6424/Y3 CON ROD ASSEMBLY 4.200-4.225KG
(6) CV6424/Y4 12 CV6424/Y4 CON ROD ASSEMBLY 4.225-4.250KG
(6) CV6424/Z1 12 CV6424/Z1 CON ROD ASSEMBLY 4.250-4.275KG
(6) CV6424/Z2 12 CV6424/Z2 CON ROD ASSEMBLY 4.275-4.300KG
(6) CV6424/Z3 12 CV6424/Z3 CON ROD ASSEMBLY 4.300-4.325KG
(6) CV6424/Z4 12 CV6424/Z4 CON ROD ASSEMBLY 4.325-4.350KG
12 KRP3007 3 KRP3007 BIG END BEARING KIT
(12) KRP3007/010 3 KRP3007/010 BIG END BRG KIT - U/S
(12) KRP3007/020 3 KRP3007/020 BIG END BRG KIT - U/S
(12) KRP3007/030 3 KRP3007/030 BIG END BRG KIT - U/S
(12) KRP3007/040 3 KRP3007/040 BIG END BRG KIT - U/S
13 CV19408 6 CV19408 JET
14 ST43502 12 ST43502 BOLT
15 0920053 12 0920053 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 PISTON
3 1 GUDGEON PIN
4 CV19330 2 CV19330 CIRCLIP
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
7 1 CON ROD
8 1 BEARING CAP
9 CV6423 1 CV6423 SMALL END BUSH
10 CV999 4 CV999 CON ROD BOLT
11 CV206 4 CV206 CON ROD NUT

珀金斯PERKINS發電機配件KRP3007/010連桿瓦
序號 零配件號碼最近的部分號碼描述
1 CV19327/1 12 活塞組件
5 CVK564 12 CVK564 活塞環組件
6 CV24540 12 連桿組件
(6) CV24540/A1 12 CV24540/A1 連桿組件 4.350-4.375 KG
(6) CV24540/A2 12 CV24540/A2 連桿組件 4.375-4.400 KG
(6) CV24540/A3 12 CV24540/A3 連桿組件 4.400-4.425 KG
(6) CV24540/A4 12 CV24540/A4 連桿組件 4.425-4.450 KG
(6) CV24540/B1 12 CV24540/B1 連桿組件 4.450-4.475 KG
(6) CV24540/B2 12 CV24540/B2 連桿組件 4.475-4.500 KG
(6) CV24540/B3 12 CV24540/B3 連桿組件 4.500-4.525 KG
(6) CV24540/B4 12 CV24540/B4 連桿組件 4.525-4.550 KG
(6) CV24540/C1 12 CV24540/C1 連桿組件 4.550-4.575 KG
(6) CV24540/C2 12 CV24540/C2 連桿組件 4.575-4.600 KG
(6) CV24540/C3 12 CV24540/C3 連桿組件 4.600-4.625 KG
(6) CV24540/C4 12 CV24540/C4 連桿組件 4.625-4.650 KG
(6) CV24540/D1 12 CV24540/D1 連桿組件 4.650-4.675 KG
(6) CV24540/D2 12 CV24540/D2 連桿組件 4.675-4.700 KG
(6) CV24540/D3 12 CV24540/D3 連桿組件 4.700-4.725 KG
(6) CV24540/D4 12 CV24540/D4 連桿組件 4.725-4.750 KG
(6) CV24540/E1 12 CV24540/E1 連桿組件 4.750-4.775 KG
(6) CV24540/E2 12 CV24540/E2 連桿組件 4.775-4.800 KG
(6) CV24540/E3 12 CV24540/E3 連桿組件 4.800-4.825 KG
(6) CV24540/E4 12 CV24540/E4 連桿組件 4.825-4.850 KG
(6) CV24540/Y1 12 CV24540/Y1 連桿組件 4.150-4.175 KG
(6) CV24540/Y2 12 CV24540/Y2 連桿組件 4.175-4.200 KG
(6) CV24540/Y3 12 CV24540/Y3 連桿組件 4.200-4.225 KG
(6) CV24540/Y4 12 CV24540/Y4 連桿組件 4.225-4.250 KG
(6) CV24540/Z1 12 CV24540/Z1 連桿組件 4.250-4.275 KG
(6) CV24540/Z2 12 CV24540/Z2 連桿組件 4.275-4.300 KG
(6) CV24540/Z3 12 CV24540/Z3 連桿組件 4.300-4.325 KG
(6) CV24540/Z4 12 CV24540/Z4 連桿組件 4.325-4.350 KG
12 KRP3007 3 KRP3007 連桿襯套
(12) KRP3007/010 3 KRP3007/010 連桿瓦組件 -U/S
(12) KRP3007/020 3 KRP3007/020 連桿瓦組件 -U/S
(12) KRP3007/030 3 KRP3007/030 連桿瓦組件 -U/S
(12) KRP3007/040 3 KRP3007/040 連桿瓦組件 -U/S
13 CV19408 6 CV19408 活塞冷卻噴頭
14 ST43502 12 ST43502 螺拴
15 0920053 12 0920053 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19327/1 12 Check History PISTON KIT
5 CVK564 12 CVK564 PISTON RING KIT
6 CV24540 12 Check History CON ROD ASSEMBLY
(6) CV24540/A1 12 CV24540/A1 CON ROD ASSEMBLY 4.350-4.375KG
(6) CV24540/A2 12 CV24540/A2 CON ROD ASSEMBLY 4.375-4.400KG
(6) CV24540/A3 12 CV24540/A3 CON ROD ASSEMBLY 4.400-4.425KG
(6) CV24540/A4 12 CV24540/A4 CON ROD ASSEMBLY 4.425-4.450KG
(6) CV24540/B1 12 CV24540/B1 CON ROD ASSEMBLY 4.450-4.475KG
(6) CV24540/B2 12 CV24540/B2 CON ROD ASSEMBLY 4.475-4.500KG
(6) CV24540/B3 12 CV24540/B3 CON ROD ASSEMBLY 4.500-4.525KG
(6) CV24540/B4 12 CV24540/B4 CON ROD ASSEMBLY 4.525-4.550KG
(6) CV24540/C1 12 CV24540/C1 CON ROD ASSEMBLY 4.550-4.575KG
(6) CV24540/C2 12 CV24540/C2 CON ROD ASSEMBLY 4.575-4.600KG
(6) CV24540/C3 12 CV24540/C3 CON ROD ASSEMBLY 4.600-4.625KG
(6) CV24540/C4 12 CV24540/C4 CON ROD ASSEMBLY 4.625-4.650KG
(6) CV24540/D1 12 CV24540/D1 CON ROD ASSEMBLY 4.650-4.675KG
(6) CV24540/D2 12 CV24540/D2 CON ROD ASSEMBLY 4.675-4.700KG
(6) CV24540/D3 12 CV24540/D3 CON ROD ASSEMBLY 4.700-4.725KG
(6) CV24540/D4 12 CV24540/D4 CON ROD ASSEMBLY 4.725-4.750KG
(6) CV24540/E1 12 CV24540/E1 CON ROD ASSEMBLY 4.750-4.775KG
(6) CV24540/E2 12 CV24540/E2 CON ROD ASSEMBLY 4.775-4.800KG
(6) CV24540/E3 12 CV24540/E3 CON ROD ASSEMBLY 4.800-4.825KG
(6) CV24540/E4 12 CV24540/E4 CON ROD ASSEMBLY 4.825-4.850KG
(6) CV24540/Y1 12 CV24540/Y1 CON ROD ASSEMBLY 4.150-4.175KG
(6) CV24540/Y2 12 CV24540/Y2 CON ROD ASSEMBLY 4.175-4.200KG
(6) CV24540/Y3 12 CV24540/Y3 CON ROD ASSEMBLY 4.200-4.225KG
(6) CV24540/Y4 12 CV24540/Y4 CON ROD ASSEMBLY 4.225-4.250KG
(6) CV24540/Z1 12 CV24540/Z1 CON ROD ASSEMBLY 4.250-4.275KG
(6) CV24540/Z2 12 CV24540/Z2 CON ROD ASSEMBLY 4.275-4.300KG
(6) CV24540/Z3 12 CV24540/Z3 CON ROD ASSEMBLY 4.300-4.325KG
(6) CV24540/Z4 12 CV24540/Z4 CON ROD ASSEMBLY 4.325-4.350KG
12 KRP3007 3 KRP3007 BIG END BEARING KIT
(12) KRP3007/010 3 KRP3007/010 BIG END BRG KIT - U/S
(12) KRP3007/020 3 KRP3007/020 BIG END BRG KIT - U/S
(12) KRP3007/030 3 KRP3007/030 BIG END BRG KIT - U/S
(12) KRP3007/040 3 KRP3007/040 BIG END BRG KIT - U/S
13 CV19408 6 CV19408 JET
14 ST43502 12 ST43502 BOLT
15 0920053 12 0920053 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 PISTON
3 1 GUDGEON PIN
4 CV19330 2 CV19330 CIRCLIP
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
7 1 ROD
8 1 CAP
9 CV6423 1 CV6423 SMALL END BUSH
10 CV21258 4 CV21258 CON ROD BOLT
11 CV206 4 CV206 CON ROD NUT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
7 1 ROD
8 1 CAP
9 CV6423 1 CV6423 SMALL END BUSH
10 CV21258 4 CV21258 CON ROD BOLT
11 CV206 4 CV206 CON ROD NUT

珀金斯PERKINS發電機配件CV1445114R燃油泵
序號 零配件號碼最近的部分號碼描述
ST46004 3 ST46004 套筒
ST46007 1 ST46007 套筒
ST46029 3 ST46029 螺帽
ST46032 1 ST46032 螺帽
1 CV11445114R 1 CV1445114R 燃油泵
1 CV11445/114 1 CV1445114R 燃油泵
1 CV11445114Z 1 CV1445114R 燃油泵
2 CV19707 1 CV19707 油管
3 OD20292 1 OD20292
4 0920113 2 0920113 墊圈
5 CV20068 1 CV20068 金屬扣眼
6 CV1687 1 CV1687 油管
7 CV1952 1 CV1952 承接器
8 ST10563 4 ST10563 密封O圈
9 ST49206 1 ST49206 墊圈
10 CV19796 1 CV19796 墊板
11 CV19541 1 CV19541 密封墊
12 ST44456 6 ST44456 螺拴
13 2134 A010 6 2134 A010 墊圈
14 ST43558 2 ST43558I 螺拴
15 2134 A010 8 2134 A010 墊圈
16 2131 A010 8 2131 A010 墊圈
17 ST46633 2 ST46633 CAPSCREW
18 ST43580 2 ST43580 螺拴
19 ST43583 2 ST43583 螺拴
20 CV18123 1 CV18123 油管
23 ST46260 1 ST46260
24 ST46182 1 ST46182 TEEPIECE
25 CV20189 1 CV20189 油管
26 ST46269 1 ST46269
27 CV12673 1 CV12673
28 ST49167 2 ST49167 墊圈
29 CV13902 1 CV13902 油管
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
ST46004 3 ST46004 SLEEVE
ST46007 1 ST46007 SLEEVE
ST46029 3 ST46029 NUT
ST46032 1 ST46032 NUT
1 CV11445114R 1 CV1445114R FUEL INJECTION PUMP
1 CV11445/114 1 CV1445114R FUEL INJECTION PUMP
1 CV11445114Z 1 CV1445114R FUEL INJECTION PUMP
2 CV19707 1 CV19707 OIL PIPE
3 OD20292 1 OD20292 BANJO BOLT
4 0920113 2 0920113 WASHER
5 CV20068 1 CV20068 GROMMET
6 CV1687 1 CV1687 OIL PIPE
7 CV1952 1 CV1952 ADAPTOR
8 ST10563 4 ST10563 SEAL - O RING
9 ST49206 1 ST49206 WASHER
10 CV19796 1 CV19796 BASE PLATE
11 CV19541 1 CV19541 GASKET
12 ST44456 6 ST44456 BOLT
13 2134A010 6 2134A010 WASHER
14 ST43558 2 ST43558I BOLT
15 2134A010 8 2134A010 WASHER
16 2131A010 8 2131A010 WASHER
17 ST46633 2 ST46633 CAPSCREW
18 ST43580 2 ST43580 BOLT
19 ST43583 2 ST43583 BOLT
20 CV18123 1 CV18123 OIL PIPE
23 ST46260 1 ST46260 REDUCER
24 ST46182 1 ST46182 TEEPIECE
25 CV20189 1 CV20189 OIL PIPE
26 ST46269 1 ST46269 REDUCER
27 CV12673 1 CV12673 BANJO BOLT
28 ST49167 2 ST49167 WASHER
29 CV13902 1 CV13902 OIL PIPE

序號 零配件號碼最近的部分號碼描述
1 CV12937 1 CV12937 托架
2 CV11466 1 CV11466 操縱桿
3 CV13004 1 CV13004 螺旋
4 CV11465 1 CV11465 球窩關節
5 2318 A308 1 2318 A308I 螺帽
6 OE33278 2 OE33278 CIRCLIP
7 CV5353 1 CV5353 翼形螺帽
9 2314 C043 2 2314 C043 螺旋
10 2134 A008 2 2134 A008 墊圈
16 CV12906 1 CV12906 殼
17 CV12908 2 CV12908 調整螺釘
18 2318 A208 1 2318 A208 螺帽
19 CV18058 1 CV18058 橫斷橋
20 OE33278 1 OE33278 CIRCLIP
21 CV12905 1 CV12905 殼
22 CV12911 1 CV12911 桿
23 2314 C045 1 2314 C045 固定螺釘
24 2134 A008 1 2134 A008 墊圈
25 2318 A308 2 2318 A308I 螺帽
26 2134 A008 1 2134 A008 墊圈
32 ST17402 1 ST17402 推拔銷
33 CV19036 1 CV19036 桿
34 CV19776 1 CV19776 桿
35 CV12904 1 CV12904 操縱桿
36 UF4553 4 UF4553 鎖緊螺母
37 ST21282 4 ST21282 U 字
38 ST21292 3 ST21292 U 字銷
39 CV2524 3 0610031 CIRCLIP
40 CV7378 1 CV7378 操縱桿
41 2314 C045 4 2314 C045 固定螺釘
42 2134 A008 4 2134 A008 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV12937 1 CV12937 BRACKET
2 CV11466 1 CV11466 CONTROL ROD
3 CV13004 1 CV13004 SCREW
4 CV11465 1 CV11465 BALL JOINT
5 2318A308 1 2318A308I NUT
6 OE33278 2 OE33278 CIRCLIP
7 CV5353 1 CV5353 WING NUT
9 2314C043 2 2314C043 SCREW
10 2134A008 2 2134A008 WASHER
16 CV12906 1 CV12906 HOUSING
17 CV12908 2 CV12908 ADJUSTING SCREW
18 2318A208 1 2318A208 NUT
19 CV18058 1 CV18058 CROSS SHAFT
20 OE33278 1 OE33278 CIRCLIP
21 CV12905 1 CV12905 HOUSING
22 CV12911 1 CV12911 LEVER
23 2314C045 1 2314C045 SETSCREW
24 2134A008 1 2134A008 WASHER
25 2318A308 2 2318A308I NUT
26 2134A008 1 2134A008 WASHER
32 ST17402 1 ST17402 TAPER PIN
33 CV19036 1 CV19036 LEVER
34 CV19776 1 CV19776 LEVER
35 CV12904 1 CV12904 CONTROL ROD
36 UF4553 4 UF4553 LOCKNUT
37 ST21282 4 ST21282 CLEVIS
38 ST21292 3 ST21292 CLEVIS PIN
39 CV2524 3 0610031 CIRCLIP
40 CV7378 1 CV7378 CONTROL ROD
41 2314C045 4 2314C045 SETSCREW
42 2134A008 4 2134A008 WASHER

威爾遜勞斯萊斯發電機配件OE52318 停機電磁閥
序號 零配件號碼最近的部分號碼描述
1 OE52318 1 OE52318 停機電磁閥
2 CV14129 1 CV14129 操縱桿
3 UF4554 2 UF4554 鎖緊螺母
4 ST21283 1 ST21283 U 字
5 ST21293 1 ST21293 U 字銷
6 CV8488 1 0610005 CIRCLIP
7 2314 C043 4 2314 C043 螺旋
8 ST43160 4 2134 A008 墊圈 Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 OE52318 1 OE52318 SOLENOID
2 CV14129 1 CV14129 CONTROL ROD
3 UF4554 2 UF4554 LOCKNUT
4 ST21283 1 ST21283 CLEVIS
5 ST21293 1 ST21293 CLEVIS PIN
6 CV8488 1 0610005 CIRCLIP
7 2314C043 4 2314C043 SCREW
8 ST43160 4 2134A008 WASHER

序號 零配件號 最近的零配件號 描述
1 OE52318 1 OE52318 停機電磁閥
2 CV14129 1 CV14129 操縱桿
3 UF4554 2 UF4554 鎖緊螺母
4 ST21283 1 ST21283 U 字
5 ST21293 1 ST21293 U 字銷
6 CV8488 1 0610005 CIRCLIP
7 ST44435 4 ST44435 固定螺釘
8 2134 A008 4 2134 A008 墊圈

Perkins柴油發動機配件噴油器總成CV19736
序號 零配件號碼最近的部分號碼描述
1 CV19384 1 CV19384/Z 高壓燃油管 A1 CYL
2 CV19385 1 CV19385/Z 高壓燃油管 A2 CYL
3 CV19386 1 CV19386/Z 高壓燃油管 A3 CYL
4 CV19387 1 CV19387/Z 高壓燃油管 A4 CYL
5 CV19388 1 CV19388/Z 高壓燃油管 A5 CYL
6 CV19389 1 CV19389/Z 高壓燃油管 A6 CYL
7 CV19390 1 CV19390/Z 高壓燃油管 B1 CYL
8 CV19391 1 CV19391/Z 高壓燃油管 B2 CYL
9 CV19392 1 CV19392/Z 高壓燃油管 B3 CYL
10 CV19393 1 CV19393/Z 高壓燃油管 B4 CYL
11 CV19394 1 CV19394/Z 高壓燃油管 B5 CYL
12 CV19395 1 CV19395/Z 高壓燃油管 B6 CYL
13 CV19736 12 CV19736 噴油器
16 CV19937 12 CV19937 噴油器墊圈
17 CV11597 12 CV11597 固定夾
18 CV18392 12 螺拴
26 OD2735 4 OD2735 U950454A
27 OD11048 24 OD11048 擋板
28 OD2426 4 OD2426 U950454A
29 OD3634 4 OD3634 U950454A
30 ST43504 16 ST43504 螺拴
31 ST43160 16 2134 A008 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19384 1 CV19384/Z PIPE - FUEL INJ NO A1 CYL
2 CV19385 1 CV19385/Z PIPE - FUEL INJ NO A2 CYL
3 CV19386 1 CV19386/Z PIPE - FUEL INJ NO A3 CYL
4 CV19387 1 CV19387/Z PIPE - FUEL INJ NO A4 CYL
5 CV19388 1 CV19388/Z PIPE - FUEL INJ NO A5 CYL
6 CV19389 1 CV19389/Z PIPE - FUEL INJ NO A6 CYL
7 CV19390 1 CV19390/Z PIPE - FUEL INJ NO B1 CYL
8 CV19391 1 CV19391/Z PIPE - FUEL INJ NO B2 CYL
9 CV19392 1 CV19392/Z PIPE - FUEL INJ NO B3 CYL
10 CV19393 1 CV19393/Z PIPE - FUEL INJ NO B4 CYL
11 CV19394 1 CV19394/Z PIPE - FUEL INJ NO B5 CYL
12 CV19395 1 CV19395/Z PIPE - FUEL INJ NO B6 CYL
13 CV19736 12 CV19736 INJECTOR
16 CV19937 12 CV19937 INJECTOR WASHER
17 CV11597 12 CV11597 CLAMP
18 CV18392 12 Check History BOLT
26 OD2735 4 OD2735 SHROUD U950454A
27 OD11048 24 OD11048 DAMPER
28 OD2426 4 OD2426 SHROUD U950454A
29 OD3634 4 OD3634 SHROUD U950454A
30 ST43504 16 ST43504 BOLT
31 ST43160 16 2134A008 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
14 CV20414 1 CV20414 HOLDER
15 CV19995 1 CV19995 INJECTOR NOZZLE

序號 零配件號碼最近的部分號碼描述
4 CV10886 1 CV10886 彈簧
5 CV10887 1 CV10887 位子
6 CV10888 1 CV10888 承接器
8 CV10889 1 CV10889 螺帽 Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
4 CV10886 1 CV10886 SPRING
5 CV10887 1 CV10887 SEAT
6 CV10888 1 CV10888 ADAPTOR
8 CV10889 1 CV10889 NUT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19736 12 CV19736 INJECTOR

序號 零配件號碼最近的部分號碼描述
2 CV20414 1 CV20414 夾持工具
3 CV10863 1 CV10863 墊片
3 CV10864 1 CV10864 墊片
3 CV10865 1 CV10865 墊片
3 CV10866 1 CV10866 墊片
3 CV10867 1 CV10867 墊片
3 CV10868 1 CV10868 墊片
3 CV10869 1 CV10869 墊片
3 CV10870 1 CV10870 墊片
3 CV10871 1 CV10871 墊片
3 CV10872 1 CV10872 墊片
3 CV10873 1 CV10873 墊片
3 CV10874 1 CV10874 墊片
3 CV10875 1 CV10875 墊片
3 CV10876 1 CV10876 墊片
3 CV10877 1 CV10877 墊片
3 CV10878 1 CV10878 墊片
3 CV10879 1 CV10879 墊片
3 CV10880 1 CV10880 墊片
3 CV10881 1 CV10881 墊片
3 CV10882 1 CV10882 墊片
3 CV10883 1 CV10883 墊片
3 CV10884 1 CV10884 墊片
3 CV10885 1 CV10885 墊片
7 CV19995 1 CV19995 噴油器噴嘴
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV20414 1 CV20414 HOLDER
3 CV10863 1 CV10863 SHIM
3 CV10864 1 CV10864 SHIM
3 CV10865 1 CV10865 SHIM
3 CV10866 1 CV10866 SHIM
3 CV10867 1 CV10867 SHIM
3 CV10868 1 CV10868 SHIM
3 CV10869 1 CV10869 SHIM
3 CV10870 1 CV10870 SHIM
3 CV10871 1 CV10871 SHIM
3 CV10872 1 CV10872 SHIM
3 CV10873 1 CV10873 SHIM
3 CV10874 1 CV10874 SHIM
3 CV10875 1 CV10875 SHIM
3 CV10876 1 CV10876 SHIM
3 CV10877 1 CV10877 SHIM
3 CV10878 1 CV10878 SHIM
3 CV10879 1 CV10879 SHIM
3 CV10880 1 CV10880 SHIM
3 CV10881 1 CV10881 SHIM
3 CV10882 1 CV10882 SHIM
3 CV10883 1 CV10883 SHIM
3 CV10884 1 CV10884 SHIM
3 CV10885 1 CV10885 SHIM
7 CV19995 1 CV19995 INJECTOR NOZZLE
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
4 CV10886 1 CV10886 SPRING
5 CV10887 1 CV10887 SEAT
6 CV10888 1 CV10888 ADAPTOR
8 CV10889 1 CV10889 NUT

Perkins3012柴油發動機配件CV70194飛輪殼
序號 零配件號碼最近的部分號碼描述
1 CV70194 1 CV70194 飛輪殼
1 CV20435 1 CV20435 飛輪殼
4 CV20222 1 CV20222 密封墊
5 ST20104 1 ST20104 栓塞
6 ST49891 1 ST49891 墊圈
7 CV14445/1 1 CV14445/1 飛輪組件
10 ST46709 16 ST46709 CAPSCREW
11 CV6460 1 CV6460 銷
12 OG9462 1 OG9462 指針
13 CV2481 1 CV2481 圈
14 OE25649 2 OE25649 栓塞
15 ST49853 2 ST49853 墊圈
16 CV6461 2 CV6461 銷
17 ST20704 2 ST20704 栓塞
18 ST43652 1 ST43652 螺拴
19 ST43163 1 ST43163 墊圈
20 ST43603 8 ST43603 公制的螺拴
21 2134 A012 8 2134 A012 墊圈
22 ST43602 2 ST43602 螺拴
23 2134 A012 2 2134 A012 墊圈
24 ST43620 2 ST43620 螺拴
25 2134 A012 2 2134 A012 墊圈
26 ST43605 9 ST43605 螺拴
27 2134 A012 9 2134 A012 墊圈
28 2134 A008 2 2134 A008 墊圈
29 OE3525 1 OE3525 堵塞蓋
30 2314 C044 2 2314 C044 固定螺釘
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV70194 1 CV70194 FLYWHEEL HOUSING
1 CV20435 1 CV20435 FLYWHEEL HOUSING
4 CV20222 1 CV20222 GASKET
5 ST20104 1 ST20104 PLUG
6 ST49891 1 ST49891 WASHER
7 CV14445/1 1 CV14445/1 FLYWHEEL ASSEMBLY
10 ST46709 16 ST46709 CAPSCREW
11 CV6460 1 CV6460 PIN
12 OG9462 1 OG9462 POINTER
13 CV2481 1 CV2481 RING
14 OE25649 2 OE25649 PLUG
15 ST49853 2 ST49853 WASHER
16 CV6461 2 CV6461 PIN
17 ST20704 2 ST20704 PLUG
18 ST43652 1 ST43652 BOLT
19 ST43163 1 ST43163 WASHER
20 ST43603 8 ST43603 METRIC BOLT
21 2134A012 8 2134A012 WASHER
22 ST43602 2 ST43602 BOLT
23 2134A012 2 2134A012 WASHER
24 ST43620 2 ST43620 BOLT
25 2134A012 2 2134A012 WASHER
26 ST43605 9 ST43605 BOLT
27 2134A012 9 2134A012 WASHER
28 2134A008 2 2134A008 WASHER
29 OE3525 1 OE3525 BLANKING COVER
30 2314C044 2 2314C044 SETSCREW

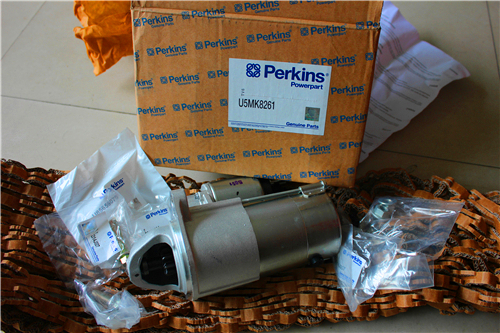

珀金斯威爾遜發電機3012啟動馬達CV65430
序號 零配件號碼最近的部分號碼描述
1 CV65430 1 CV65430 啟動馬達
2 ST44500 2 ST44500 固定螺釘
3 ST43164 2 ST43164 墊圈
4 ST44500 1 ST44500 固定螺釘
5 ST43164 1 ST43164 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV65430 1 CV65430 STARTER MOTOR
2 ST44500 2 ST44500 SETSCREW
3 ST43164 2 ST43164 WASHER
4 ST44500 1 ST44500 SETSCREW
5 ST43164 1 ST43164 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV5296 1 CV65430 STARTER MOTOR
(1) CV5296R 1 CV65430R STARTER MOTOR - EXCHANGE

序號 零配件號碼最近的部分號碼描述
2 OD17688 1 OD17688 鎖緊螺母
3 OD15391 1 OD15391 墊圈
4 OD15390 1 OD15390 螺帽
5 OD15400 1 OD15400 墊圈
6 CV3022 1 CV3022 鉛
7 OD19782 1 OD19782 墊圈
8 OD15396 2 OD15396 襯套
9 OD17266 1 OD17266 殼
10 OD15401 4 OD15401 固定螺釘
11 OD15402 4 OD15402 墊圈
12 OD15392 1 OD15392 栓塞
13 OD16762 1 OD16762 心
14 OD15404 12 OD15404 墊圈
15 OD17267 1 OD17267 連接
16 OD15400 1 OD15400 墊圈
17 OD15397 1 OD15397 CIRCLIP
18 OD17268 4 OD17268 夾持工具
19 OD15415 8 OD15415 刷
20 OD15408 4 OD15408 螺旋
21 OD15407 4 OD15407 墊圈
22 OD15406 4 OD15406 墊圈
23 OD15405 4 OD15405 襯套
24 CV4828 1 CV4828 連接
25 OD15412 8 OD15412 螺旋
26 OD15411 4 OD15411 板
27 OD15417 1 OD15417I 密封O圈
28 OD15399 1 OD15399 襯套
29 OD17269 1 OD17269 帶
30 OD17270 2 OD17270 螺旋
31 OD15419 2 OD15419 螺帽
32 OD15410 1 OD15410 墊圈
33 OD15409 1 OD15409 墊圈
34 OD21480 1 OD21480 電樞
35 OD15423 1 OD15423 墊圈
36 OD15424 1 OD21474 墊圈
37 CV3024 1 CV3024 箱組件
38 CV3027 1 CV3027 螺旋
39 OD20701 1 OD20701 絕緣體
40 CV3026 4 CV3026 磁石的板
41 CV3025 1 CV3025 線圈
42 OD16748 8 OD16748 螺旋
43 OD15422 2 OD15422 螺旋
44 CV3021 1 CV3021 連接
45 OD17688 3 OD17688 鎖緊螺母
46 CV3030 1 CV3030 墊圈
47 OD20703 1 OD20703 絕緣體
48 OD20544 1 OD15397 O 圈
49 OD20702 1 OD20702 絕緣體
50 OD15390 1 OD15390 螺帽
51 OD15392 1 OD15392 栓塞
52 OD16762 1 OD16762 心
53 OD19783 1 OD19783I 套筒
54 OD16755 1 OD16755 密封O圈
55 OD15417 1 OD15417I 密封O圈
56 OD17275 1 OD17275 殼
57 OD16754 5 OD16754 螺旋
58 OD15402 5 OD15402 墊圈
59 OD16753 1 桿
60 OD16752 1 OD16752 密封O圈
61 OD16751 1 OD16751 螺旋
62 OD17276 1 OD17276 墊圈
63 OD16765 1 OD16765 長靴
64 OD16756 1 OD16756 螺旋
65 CV3031 1 CV3031 桿
66 OD16747 1 OD16747I 軋輥銷
67 OD15424 2 OD21474 墊圈
68 OD16758 1 Y97/00032 駕駛
69 CV4838 1 CV4838 推力墊圈
70 CV3032 2 CV3032 臂
71 OD16759 1 OD16759 密封O圈
72 OD20704 1 OD20704 殼
73 OD16761 6 OD16761 螺旋
74 OD15399 1 OD15399 襯套
75 OD16764 1 OD16764 停機電磁閥
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 OD17688 1 OD17688 LOCKNUT
3 OD15391 1 OD15391 WASHER
4 OD15390 1 OD15390 NUT
5 OD15400 1 OD15400 WASHER
6 CV3022 1 CV3022 LEAD
7 OD19782 1 OD19782 WASHER
8 OD15396 2 OD15396 BUSH
9 OD17266 1 OD17266 HOUSING
10 OD15401 4 OD15401 SETSCREW
11 OD15402 4 OD15402 WASHER
12 OD15392 1 OD15392 PLUG
13 OD16762 1 OD16762 WICK
14 OD15404 12 OD15404 WASHER
15 OD17267 1 OD17267 CONNECTION
16 OD15400 1 OD15400 WASHER
17 OD15397 1 OD15397 CIRCLIP
18 OD17268 4 OD17268 HOLDER
19 OD15415 8 OD15415 BRUSH
20 OD15408 4 OD15408 SCREW
21 OD15407 4 OD15407 WASHER
22 OD15406 4 OD15406 WASHER
23 OD15405 4 OD15405 BUSH
24 CV4828 1 CV4828 CONNECTION
25 OD15412 8 OD15412 SCREW
26 OD15411 4 OD15411 PLATE
27 OD15417 1 OD15417I SEAL - O RING
28 OD15399 1 OD15399 BUSH
29 OD17269 1 OD17269 BAND
30 OD17270 2 OD17270 SCREW
31 OD15419 2 OD15419 NUT
32 OD15410 1 OD15410 WASHER
33 OD15409 1 OD15409 WASHER
34 OD21480 1 OD21480 ARMATURE
35 OD15423 1 OD15423 WASHER
36 OD15424 1 OD21474 WASHER
37 CV3024 1 CV3024 CASE ASSEMBLY
38 CV3027 1 CV3027 SCREW
39 OD20701 1 OD20701 INSULATOR
40 CV3026 4 CV3026 MAGNETIC PLATE
41 CV3025 1 CV3025 COIL
42 OD16748 8 OD16748 SCREW
43 OD15422 2 OD15422 SCREW
44 CV3021 1 CV3021 CONNECTION
45 OD17688 3 OD17688 LOCKNUT
46 CV3030 1 CV3030 WASHER
47 OD20703 1 OD20703 INSULATOR
48 OD20544 1 OD15397 O RING
49 OD20702 1 OD20702 INSULATOR
50 OD15390 1 OD15390 NUT
51 OD15392 1 OD15392 PLUG
52 OD16762 1 OD16762 WICK
53 OD19783 1 OD19783I SLEEVE
54 OD16755 1 OD16755 SEAL - O RING
55 OD15417 1 OD15417I SEAL - O RING
56 OD17275 1 OD17275 HOUSING
57 OD16754 5 OD16754 SCREW
58 OD15402 5 OD15402 WASHER
59 OD16753 1 Check History LEVER
60 OD16752 1 OD16752 SEAL - O RING
61 OD16751 1 OD16751 SCREW
62 OD17276 1 OD17276 WASHER
63 OD16765 1 OD16765 BOOT
64 OD16756 1 OD16756 SCREW
65 CV3031 1 CV3031 LEVER
66 OD16747 1 OD16747I ROLL PIN
67 OD15424 2 OD21474 WASHER
68 OD16758 1 Y97/00032 DRIVE
69 CV4838 1 CV4838 THRUST WASHER
70 CV3032 2 CV3032 ARM
71 OD16759 1 OD16759 SEAL - O RING
72 OD20704 1 OD20704 HOUSING
73 OD16761 6 OD16761 SCREW
74 OD15399 1 OD15399 BUSH
75 OD16764 1 OD16764 SOLENOID
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
77 OD17291 1 OD17291 MAGNET
78 OD17297 1 OD16764 PLUNGER
79 OD17282 1 OD17282 SPRING
80 OD18509 1 OD18509 SHAFT
81 OD17252 1 OD17252 WASHER
83 OD17283 1 OD17283 SPRING
84 OD17284 1 OD17284 CONTACT
85 OD17285 1 OD17285 BUSH
86 OD17287 1 OD17287 INSULATOR
87 OD17185 1 OD17185 WASHER
88 OD17288 1 OD17288 NUT
89 1 TERMINAL
90 1 TERMINAL
91 OD17286 1 OD17286 GUARD
92 2 TERMINAL
93 2 SCREW
94 OD17292 2 OD17292 INSULATOR
95 OD17279 2 OD17279 RING
96 OD17252 1 OD17252 WASHER
97 OD15402 1 OD15402 WASHER
98 OD17196 2 OD17196 NUT
99 OD17245 1 OD17245 BASE
100 OD17231 1 OD17231 SCREW
101 OD17298 1 OD17298 SCREW
102 OD17299 1 OD17299 SCREW
103 OE52575 2 OE52575 SEAL - O RING
104 OD17280 2 OD17280 WASHER
105 OD15391 2 OD15391 WASHER
106 OD15390 2 OD15390 NUT

勞斯萊斯珀金斯發電機配件CV19612 油底殼密封墊
序號 零配件號碼最近的部分號碼描述
1 CV19612 1 CV19612 油底殼
4 ST20107 1 ST20107 栓塞
5 ST49209 1 ST49209 墊圈
6 ST20106 1 ST20106 栓塞
7 ST49207 1 ST49207 墊圈
8 CV20213 1 CV20213 密封墊 -油底殼
9 ST43562 28 ST43562 螺拴
10 2134 A010 28 2134 A010 墊圈
11 2131 A010 28 2131 A010 墊圈
16 CV13282 5 CV13282 螺拴
17 2134 A010 5 2134 A010 墊圈
18 ST43576 4 ST43576 螺拴
19 2134 A010 4 2134 A010 墊圈
20 2131 A010 4 2131 A010 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19612 1 CV19612 SUMP
4 ST20107 1 ST20107 PLUG
5 ST49209 1 ST49209 WASHER
6 ST20106 1 ST20106 PLUG
7 ST49207 1 ST49207 WASHER
8 CV20213 1 CV20213 GASKET - SUMP
9 ST43562 28 ST43562 BOLT
10 2134A010 28 2134A010 WASHER
11 2131A010 28 2131A010 WASHER
16 CV13282 5 CV13282 BOLT
17 2134A010 5 2134A010 WASHER
18 ST43576 4 ST43576 BOLT
19 2134A010 4 2134A010 WASHER
20 2131A010 4 2131A010 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19621 1 CV19621/2 OIL FILLER
2 OE52128 1 OE52128 GASKET
3 ST43552 2 ST43552 BOLT
4 2134A010 2 2134A010 WASHER
5 1 OIL FILLER CAP
6 2415633 1 2415633 SEALING RING
12 CV19639 1 CV19639 DIPSTICK KIT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
13 CV19638 1 CV19638 SEAL - O RING
14 CV19630 1 CV19630 TUBE
15 ST46031 1 ST46031 NUT
16 ST46006 1 ST46006 SLEEVE

珀金斯威爾遜3012柴油機機油泵CV18292Z
序號 零配件號碼最近的部分號碼描述
2314 C044 2 2314 C044 固定螺釘
2314 C045 2 2314 C045 固定螺釘
CV17958 1 CV17958 托架
CV17959 1 CV17959 過濾器
CV18014 1 CV20398 密封墊
OE50547 1 OE50547 固定夾
ST44439 2 2314 C044 固定螺釘
1 CV69943 1 CV69943 機油泵
1 CV18292Z 1 機油泵
13 CV69957 1 CV69957 過濾器
13 CV18292Z 1 機油泵
14 CV69956 1 CV69956 U 固定夾
14 CV18292Z 1 機油泵
15 UF4353 2 UF4353 UNF 螺帽
16 CV69955 1 CV69955 托架
16 CV18292Z 1 機油泵
17 ST44443 2 ST44443 固定螺釘
17 CV18292Z 1 機油泵
18 OE4421 2 OE4421 銷
19 2134 A008 4 2134 A008 墊圈
19 0920053 4 0920053 墊圈
20 ST43557 4 ST43557 螺拴
21 ST43161 4 2134 A010 彈簧塾圈
22 1 過濾器
23 CV69962 1 CV69962 密封墊
23 CV18292Z 1 機油泵
24 ST44440 2 ST44440 固定螺釘
24 CV18292Z 1 機油泵
25 2134 A008 2 2134 A008 墊圈
25 ST16259 2 0920053 墊圈
26 CV70374 2 CV70374 墊圈
26 CV18292Z 1 機油泵
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2314C044 2 2314C044 SETSCREW
2314C045 2 2314C045 SETSCREW
CV17958 1 CV17958 BRACKET
CV17959 1 CV17959 STRAINER
CV18014 1 CV20398 GASKET
OE50547 1 OE50547 CLAMP
ST44439 2 2314C044 SETSCREW
1 CV69943 1 CV69943 OIL PUMP
1 CV18292Z 1 Check History OIL PUMP
13 CV69957 1 CV69957 STRAINER
13 CV18292Z 1 Check History OIL PUMP
14 CV69956 1 CV69956 U CLAMP
14 CV18292Z 1 Check History OIL PUMP
15 UF4353 2 UF4353 UNF NUT
16 CV69955 1 CV69955 BRACKET
16 CV18292Z 1 Check History OIL PUMP
17 ST44443 2 ST44443 SETSCREW
17 CV18292Z 1 Check History OIL PUMP
18 OE4421 2 OE4421 PIN
19 2134A008 4 2134A008 WASHER
19 0920053 4 0920053 WASHER
20 ST43557 4 ST43557 BOLT
21 ST43161 4 2134A010 SPRING WASHER
22 1 STRAINER
23 CV69962 1 CV69962 GASKET
23 CV18292Z 1 Check History OIL PUMP
24 ST44440 2 ST44440 SETSCREW
24 CV18292Z 1 Check History OIL PUMP
25 2134A008 2 2134A008 WASHER
25 ST16259 2 0920053 WASHER
26 CV70374 2 CV70374 WASHER
26 CV18292Z 1 Check History OIL PUMP
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV69847 1 CV69847 PUMP CASING
3 CV69863 1 CV69863 ROTOR
4 CV69864 1 CV69864 SHAFT
5 CV5671 1 CV5671 DOWEL
6 ST44632 1 ST44632 LOCKNUT
7 CV11803 1 CV11803 COVER
8 CV358 2 CV358 BUSH
9 CV69862 1 CV69862 SHAFT
10 ST43520 6 ST43520 BOLT
11 2134A008 6 2134A008 WASHER
12 CV334 1 CV334 TAB WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 CASING
3 CV2279 1 CV2279 OIL PUMP GEAR
4 CV5340 1 CV5340 SHAFT
9 CV5339 1 CV5339 SHAFT
10 ST43518 6 ST43518 BOLT
11 ST16259 6 0920053 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV7546 1 CV7546 PIPE - BREATHER
2 ST91215 1 ST91215 HOSE
3 ST46409 2 ST46409 CLIP
5 UF5330 1 UF5330 RUBBER STRAP
6 ST44458 1 2314C053 SETSCREW
7 ST43161 1 2134A010 SPRING WASHER
8 CV5521 2 CV5521 CLIP
9 CV5550 1 CV5550 BRACKET
10 ST44456 3 ST44456 BOLT
11 ST44606 3 2318A209 METRIC NUT
12 ST43161 3 2134A010 SPRING WASHER

序號 零配件號 最近的零配件號 描述
1 CV11804 1 CV11804 機機油泵
(1) CV11804R 1 CV11804R 機機油泵 -交換
13 OE4421 2 OE4421 銷
14 ST43557 4 ST43557 螺拴
15 2134 A010 4 2134 A010 墊圈
16 CV13176 1 CV13176 堵塞
17 ST10619 2 ST10619 密封O型圈
18 CV12722 1 CV12722 油管
19 CV12723 1 CV12723 線軸
20 ST10615 1 ST10615 密封O型圈
21 ST10616 1 ST10616 密封O型圈
22 CV1274 1 CV1274 機機油泵傳動機構

序號 零配件號 最近的零配件號 描述
2 CV11802 1 CV11802 套
3 CV2279 1 CV2279 機機油泵傳動機構
4 CV5340 1 CV5340 軸
5 CV11803 1 CV11803 蓋
6 CV358 2 CV358 襯套
7 CV5671 1 CV5671 合釘
8 CV5339 1 CV5339 軸
9 ST44632 1 ST44632 鎖緊螺母
10 CV334 1 CV334 定位鍵墊圈
11 ST43518 6 ST43518 螺拴
12 2134 A008 6 2134 A008 墊圈

序號 零配件號 最近的零配件號 描述
1 CV7755/1 Z 1 CV7755/1 Z 閥
12 CV5122 2 CV5122 線軸
13 ST10615 8 ST10615 密封O型圈
14 ST46077 1 ST46077 堵塞
15 ST49852 1 ST49852 墊圈
16 ST46078 1 ST46078I 堵塞
17 ST49853 1 ST49853 墊圈
18 ST43655 3 ST43655 螺拴
19 ST43163 3 ST43163 墊圈
20 ST43059 3 ST43059 墊圈
21 ST43657 3 ST43657 螺拴
22 ST43163 3 ST43163 墊圈
23 ST43059 3 ST43059 墊圈

序號 零配件號 最近的零配件號 描述
2 1 放泄閥
6 CV5121 1 CV5121 柱塞
7 CV1558 1 CV1558 彈簧
8 CV7719 1 CV7719 帽
9 ST49859 1 ST49859 墊圈
10 ST20106 2 ST20106 堵塞
11 ST49856 2 ST49856 墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
3 ST11412 3 ST11412 INSERT
4 ST11421 1 ST11421 INSERT
5 ST47474 6 ST47474 INSERT

序號 零配件號 最近的零配件號 描述
1 CV12724 1 CV12724 油填隙料
2 OE52128 1 OE52128 密封墊
3 ST43552 2 ST43552 螺拴
4 2134 A010 2 2134 A010 墊圈

威爾遜柴油發電機CV19652機油冷卻器
序號 零配件號碼最近的部分號碼描述
ST46077 2 ST46077 栓塞
ST49852 2 ST49852 墊圈
1 CV19652 1 CV19652 機油冷卻器
1 CV19652 1 CV19652 機油冷卻器
15 CV2473 3 CV2473 機油濾器
16 CV5122 1 CV5122 線橋
17 ST10615 4 ST10615 密封O圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
ST46077 2 ST46077 PLUG
ST49852 2 ST49852 WASHER
1 CV19652 1 CV19652 OIL COOLER
1 CV19652 1 CV19652 OIL COOLER
15 CV2473 3 CV2473 OIL FILTER
16 CV5122 1 CV5122 BOBBIN
17 ST10615 4 ST10615 SEAL - O RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 CASE
2 1 CASING
3 ST44424 2 ST44424 SETSCREW
4 ST43158 2 2134A006 WASHER
4 2134A006 2 2134A006 WASHER
5 CV17853 3 CV17853 ADAPTOR
6 CV5620 1 CV5620 TUBESTACK
8 CV7719 1 CV7719 CAP
9 ST20625 1 ST20625 WASHER
9 ST20619 1 ST20619 WASHER
10 CV1558 1 CV1558 SPRING
11 CV5121 1 CV5121 PLUNGER
12 2131A006 2 2131A006 WASHER
13 ST46077 1 ST46077 PLUG
13 ST46077 2 ST46077 PLUG
14 ST49852 1 ST49852 WASHER
14 ST49852 2 ST49852 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 CASE
2 1 CASING
3 ST44424 2 ST44424 SETSCREW
4 ST43158 2 2134A006 WASHER
4 2134A006 2 2134A006 WASHER
5 CV17853 3 CV17853 ADAPTOR
6 CV5620 1 CV5620 TUBESTACK
8 CV7719 1 CV7719 CAP
9 ST20625 1 ST20625 WASHER
9 ST20619 1 ST20619 WASHER
10 CV1558 1 CV1558 SPRING
11 CV5121 1 CV5121 PLUNGER
12 2131A006 2 2131A006 WASHER
13 ST46077 1 ST46077 PLUG
13 ST46077 2 ST46077 PLUG
14 ST49852 1 ST49852 WASHER
14 ST49852 2 ST49852 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV20181 1 CV20181 CONNECTION
2 ST43506 3 ST43506 BOLT
3 0920053 3 0920053 WASHER
4 CV20397 1 CV20397 GASKET
5 CV17861 1 CV17861 BOBBIN
6 ST10615 2 ST10615 SEAL - O RING
7 CV17859 1 CV17859 BOBBIN
8 ST10615 4 ST10615 SEAL - O RING
14 CV5413 1 CV5413 CONNECTION
15 ST91215 1 ST91215 HOSE
16 ST46409 2 ST46409 CLIP
18 CV20218 1 CV20218 GASKET
19 ST44443 4 ST44443 SETSCREW
20 2134A008 4 2134A008 WASHER
21 2131A008 4 2131A008 WASHER
27 CV20182 1 CV20182 THIMBLE
28 CV20183 1 CV20183 SPRING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
ST43056 2 2131A008 WASHER
ST44437 1 2314C043 SETSCREW
1 ST10614 4 ST10614 SEAL - O RING
2 CV19555 1 CV19555 CONNECTION
3 CV20335 1 CV20335 GASKET
4 ST43509 2 ST43509 BOLT
5 ST16259 2 0920053 WASHER
6 ST52762 1 ST52762 PLUG
7 2487A016 1 2487A016 PLUG
8 0920113 1 0920113 WASHER
8 ST49887 1 ST49887 WASHER
9 ST16259 1 0920053 WASHER
10 CV19557 1 CV19557 OIL PIPE

珀金斯Perkins3012柴油機cv19370缸體組件
項目零件的數量。新零件號 描述
1 / 1 1 / 1 cv19370 cv19370缸體組件
22 st20707 1 st20707插頭
23 krp3106 1 krp3106主軸承盒
（23）010 / 1 / 010 krp3106 krp3106主軸承盒U / S
（23）020 / 1 / 020 krp3106 krp3106主軸承盒U / S
（23）030 / 1 / 030 krp3106 krp3106主軸承盒U / S
（23）040 / 1 / 040 krp3106 krp3106主軸承盒U / S
24 krp3203 1 krp3203推力墊圈套件
（24）krp3203 / 013 1 krp3203 / 013止推墊圈套件- O / S
25 cv275 2 cv275插頭
26 cv9171 6 cv9171墊圈
27 st20702 2 st20702插頭
28 cv19769 4 cv19769套
29 oe2970 4 oe2970螺釘
30 st20133 1 st20133i插頭
31 st49891 1 st49891墊圈
32 cv1418 1 cv1418板
33 cv19540 1 cv19540墊片沖裁板
34 cv19785 1 cv19785板
35 cv19542 1 cv19542墊片沖裁板
36 st44437 22 2314c043固定螺絲
37 oe48475 22 oe48475墊圈
38 oe7669 4 oe7669密封O形環
39 st45779 8 st45779銷
40 st20704 5 st20704插頭
41 2314c045 24 2314c045固定螺絲
42 cv12198 3 cv12198塞
43 st49891 3 st49891墊圈
44 2131a008 22 2131a008墊圈
1 2止推墊圈
1 3止推墊圈
1 4止推墊圈
1 5止推墊圈
珀金斯柴油機CV12081進氣岐管
序號 零配件號 最近的零配件號 描述
1 CV12081/2 2 CV12081/2 進氣岐管
4 CV20233 4 CV20233 進氣管墊
5 CV507 12 CV507 線軸
6 ST10928 24 ST10928 密封O型圈
7 CV12997 2 CV12997 切片板
8 CV19492 2 CV72491 密封墊
9 2314 C045 4 2314 C045 固定螺釘
10 2134 A008 4 2134 A008 墊圈
11 ST20133 8 ST20133I 堵塞
12 ST49891 8 ST49891 墊圈
13 CV13201 2 CV13201 切片板 U11497X
14 CV20379 2 CV20379 密封墊 U11497X
15 ST43563 12 ST43563 螺拴
16 2134 A010 12 2134 A010 墊圈
17 2131 A010 12 2131 A010 墊圈
18 CV20379 1 CV20379 密封墊 U11497X
19 2314 C045 8 2314 C045 固定螺釘 U11497X
20 2134 A008 8 2134 A008 墊圈 U11497X
21 2131 A008 8 2131 A008 墊圈 U11497X
22 CV20379 1 CV20379 密封墊 U11497X
26 ST44452 2 ST44452 固定螺釘
27 ST49940 2 ST49940 墊圈
28 2314 C053 28 2314 C053 固定螺釘
29 2134 A010 28 2134 A010 墊圈
30 2131 A010 28 2131 A010 墊圈
31 CV13201 2 CV13201 切片板 U11497X U9736W
32 U5MH0050 1 U5MH0050 水管組件 U9735W

序號 零配件號 最近的零配件號 描述
1 CV13851 1 CV13851 進氣岐管
3 CV20211 2 CV20211I 密封墊
4 CV13852 1 CV13852 進氣岐管
6 ST20133 2 ST20133I 堵塞
7 ST49891 2 ST49891 墊圈
8 2314 C045 28 2314 C045 固定螺釘
9 2134 A008 28 2134 A008 墊圈
10 2131 A008 28 2131 A008 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV1430 8 CV1430 PLATE
2 CV9022 1 CV9022 FLANGE
3 CV20110 1 CV20110 SHAFT
4 CV1437 1 CV1437 CLAMPING DEVICE
5 2314J004 4 2314J004 SCREW
6 CV1428 1 CV1428 FLYWHEEL
7 CV1430 8 CV1430 PLATE
8 CV11619 6 CV11619 BOLT
9 CV17315 6 CV17315 NUT
10 CV20737 2 CV20737 BOLT
11 CV2151 2 CV2151 NUT
12 CV1433 16 CV1433 WASHER
13 CV9024 1 CV9024 NUT
14 CV9023 1 CV9023 WASHER

珀金斯勞斯萊斯3012柴油機CV70291充電發電機
序號 零配件號 最近的零配件號 描述
1 OD20798 1 CV70291 充電發電機

序號 零配件號 最近的零配件號 描述
2 OD20441 1 OD20441 螺帽
3 OD21655 1 OD21655 墊圈
3 OD17226 1 OD21655 墊圈
4 OD17253 1 OD17253 鍵
5 OD19835 1 OD19835 風扇
6 OD19797 1 OD19797 墊圈
7 OD20543 1 OD20543 距離塊
8 OD20838 4 OD20838 螺帽
9 OD20839 3 OD20839 固定螺釘
10 OD20841 1 OD20841 殼
11 OD20840 1 OD20840 襯套
12 OD19798 1 OD19798 滾珠軸承
13 OD20842 1 OD20842 承件
14 OD20843 1 OD20843 距離塊
15 OD19800 1 OD19800R 轉子
(15) OD19800R 1 OD19800R 轉子
16 OD20844 1 OD20844 距離塊
17 OD19799 1 OD19799 滾珠軸承
18 OD20845 1 OD20845 轉向裝置
19 OD20846 1 OD20846 圈
20 OD20847 1 OD20847 墊圈
21 OD20848 1 OD20848 固定螺釘
22 OD19778 1 OD19778 固定子
23 OD20895 1 OD20895 殼
24 OD20849 1 OD20849 密封O型圈
25 OD20850 2 OD20850 固定螺釘
26 OD20851 2 OD20851 絕緣體
27 OD20852 2 OD20852 間隔器
28 OD20847 1 OD20847 墊圈
29 OD20854 2 OD20854 終點
30 OD20855 2 OD20855 螺帽
31 OD20856 1 OD20856 終點
32 OD20857 2 OD20857 終點
33 OD19784 2 OD19784 螺帽
34 OD20858 1 OD20858 終點
35 OD20859 1 OD20859 守衛
36 OD20860 2 OD20860 終點
37 OD20861 1 OD20861 纜
38 OD20862 1 OD20862 纜
39 OD20863 1 OD20863 鞘
40 OD20864 1 OD20864 終點
41 OD20866 1 OD20866 守衛
42 OD20867 4 OD20867 螺拴
43 OD19785 6 OD19785 墊圈
44 OD20868 1 OD20868 夾持工具
45 OD19442 2 OD19442 刷
46 OD20869 2 OD20869 彈簧
47 OD20870 4 OD20870 固定螺釘
48 OD20847 4 OD20847 墊圈
49 OD20871 1 OD20871 整流器
50 OD20896 1 OD20896 調整器
51 OD20872 1 OD20872 蓋
52 OD20873 2 OD20873 固定螺釘
53 OD20874 2 OD20874 墊圈
54 OD20875 4 OD20875 螺帽
55 OD20876 3 OD20876 墊圈
56 OD20877 1 OD20877 電容器
57 OD20878 2 OD20878 終點
58 OD20879 2 OD20879 墊圈
59 OD20880 1 OD20880 振動乘用馬
60 OD20881 1 OD20881 固定螺釘
61 OD20897 1 OD20897 纜
62 OD20898 1 OD20898 鞘
63 OD20899 1 OD20899 襯套
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 OD20441 1 OD20441 NUT
3 OD17226 1 OD21655 WASHER
4 OD17253 1 OD17253 KEY
5 OD19835 1 OD19835 FAN
6 OD19797 1 OD19797 WASHER
7 OD20543 1 OD20543 DISTANCE PIECE
8 OD20838 4 OD20838 NUT
9 OD20839 3 OD20839 SCREW
10 OD20841 1 OD20841 HOUSING
11 OD20840 1 OD20840 BUSH
12 OD19798 1 OD19798 BALL BEARING
13 OD20842 1 OD20842 RETAINER
14 OD20843 1 OD20843 DISTANCE PIECE
15 OD19800 1 OD19800R ROTOR
(15) OD19800R 1 OD19800R ROTOR
16 OD20844 1 OD20844 DISTANCE PIECE
17 OD19799 1 OD19799 BALL BEARING
18 OD20845 1 OD20845 DEFLECTOR
19 OD20846 1 OD20846 RING
20 OD20847 1 OD20847 WASHER
21 OD20848 1 OD20848 SCREW
22 OD19778 1 OD19778 STATOR
23 OD20895 1 OD20895 HOUSING
24 OD20849 1 OD20849 SEAL - O RING
25 OD20850 2 OD20850 SCREW
26 OD20851 2 OD20851 INSULATOR
27 OD20852 2 OD20852 SPACER
28 OD20847 1 OD20847 WASHER
29 OD20854 2 OD20854 TERMINAL
30 OD20855 2 OD20855 NUT
31 OD20856 1 OD20856 TERMINAL
32 OD20857 2 OD20857 TERMINAL
33 OD19784 2 OD19784 NUT
34 OD20858 1 OD20858 TERMINAL
35 OD20859 1 OD20859 GUARD
36 OD20860 2 OD20860 TERMINAL
37 OD20861 1 OD20861 CABLE
38 OD20862 1 OD20862 CABLE
39 OD20863 1 OD20863 SHEATH
40 OD20864 1 OD20864 TERMINAL
41 OD20866 1 OD20866 GUARD
42 OD20867 4 OD20867 BOLT
43 OD19785 6 OD19785 WASHER
44 OD20868 1 OD20868 HOLDER
45 OD19442 2 OD19442 BRUSH
46 OD20869 2 OD20869 SPRING
47 OD20870 4 OD20870 SCREW
48 OD20847 4 OD20847 WASHER
49 OD20871 1 OD20871 RECTIFIER
50 OD20896 1 OD20896 REGULATOR
51 OD20872 1 OD20872 COVER
52 OD20873 2 OD20873 SCREW
53 OD20874 2 OD20874 WASHER
54 OD20875 4 OD20875 NUT
55 OD20876 3 OD20876 WASHER
56 OD20877 1 OD20877 CAPACITOR
57 OD20878 2 OD20878 TERMINAL
58 OD20879 2 OD20879 WASHER
59 OD20880 1 OD20880 VIBRATION MOUNT
60 OD20881 1 OD20881 SCREW
61 OD20897 1 OD20897 CABLE
62 OD20898 1 OD20898 SHEATH
63 OD20899 1 OD20899 BUSH
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 28710439 1 28710439 REGULATOR
3 28710446 1 28710446 HOLDER
4 28710445 1 28710445 STATOR
5 28710442 1 28710442 ROTOR
6 28710437 1 28710437 RING
7 28710443 1 28710443 HOUSING
8 28710460 1 28710460 FAN
9 28710461 1 28710461 WASHER
10 OD19798 1 OD19798 BALL BEARING
11 OD17216 1 OD17216 BALL BEARING
12 28710462 1 28710462 HOUSING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 OE49891 1 OE49891 BELT KIT
2 CV8202 1 CV8202 1 GROOVE ALTERNATOR PULLEY
5 OE46748 1 OE46748 LINK
6 ST43502 1 ST43502 BOLT
7 2318A208 1 2318A208 NUT
8 2134A008 1 2134A008 WASHER
9 ST43507 1 ST43507 BOLT
10 2318A208 1 2318A208 NUT
11 2131A008 2 2131A008 WASHER
12 2134A008 1 2134A008 WASHER
16 CV5082 1 CV5082 BOLT
17 CV19491 1 CV19491 BRACKET
18 ST43568 2 ST43568 BOLT
20 2134A010 2 2134A010 WASHER
21 ST44467 1 ST44467 SETSCREW
22 2134A012 1 2134A012 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 28710439 1 28710439 REGULATOR
4 28710446 1 28710446 HOLDER
5 28710445 1 28710445 STATOR
6 28710442 1 28710442 ROTOR
7 28710437 1 28710437 RING
8 28710443 1 28710443 HOUSING
9 28710460 1 28710460 FAN
10 28710461 1 28710461 WASHER
11 OD19798 1 OD19798 BALL BEARING
12 OD17216 1 OD17216 BALL BEARING
13 28710462 1 28710462 HOUSING

威爾遜發電機組CH12894油壓、CH12893溫度傳感器
序號 零配件號 最近的零配件號 描述
1 CV18339/2 1 CH12894 油壓傳感器
2 CV18444 1 CV18444 承接器
3 ST49852 1 ST49852 墊圈
4 CV18338/5 1 CH12893 溫度傳感器
5 0920113 1 0920113 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV13202 4 CV13202 GASKET - CYLINDER HEAD
3 CV20400 4 CV20400 SEAL - ROCKER BOX COVER
4 ST10603 36 ST10603 SEAL - O RING
5 ST10928 24 ST10928 SEAL - O RING
6 CV20230 4 CV20230 GASKET - CYL. HEAD COVER
7 CV20376 4 CV20376 GASKET
8 CV20233 4 CV20233 GASKET - IND MANIFOLD
9 CV20379 4 CV20379 GASKET
10 CV1494 12 CV1494 SEAL - INJECTOR
11 CV72491 2 CV72491 GASKET
12 CV20211I 2 CV20211I GASKET
12 CV20211 2 CV20211I GASKET
13 OE52128 1 OE52128 GASKET
14 OD18060 12 OD18060 WASHER
15 CV20234 2 CV20234 GASKET
16 CV20235 1 CV20235 GASKET
17 CV20236I 2 CV20236I GASKET
17 CV20236 2 CV20236I GASKET
18 2415D001 22 2415D001 WASHER
19 ST10563 12 ST10563 SEAL - O RING
20 2131A010 48 2131A010 WASHER
21 ST49297 2 ST49297 SEAL
22 ST49891 6 ST49891 WASHER
23 ST49938 26 ST49938 WASHER
24 CV19094 4 CV19094 GASKET - ROCKER BOX COVER
25 ST10528 2 ST10528 SEALING RING
26 CV70360 28 CV70360 WASHER

序號 零配件號 最近的零配件號 描述
1 CV7704/5 1 CV7704/5 水溫度開關
2 ST49891 1 ST49891 墊圈
9 CV7705/2 1 CV7705/2 油壓開關
10 ST49852 1 ST49852 墊圈

勞斯萊斯發電機3012發動機CV14543凸輪軸
序號 零配件號 最近的零配件號 描述
1 CV14543 1 CV14543 凸輪軸
2 CV14544 1 CV14544 凸輪軸
3 CV13282 6 CV13282 螺拴
4 2131 A010 6 2131 A010 墊圈
5 ST45780 1 ST45780 合釘
6 CV17071 6 CV17071 固定螺釘
7 2131 A008 6 2131 A008 墊圈
8 ST45778 1 ST45778 彈簧銷
9 CV1214 1 CV1214 凸輪軸傳動機構
10 CV1215 1 CV1215 凸輪軸傳動機構
11 CV8563 1 CV8563 凸輪軸傳動機構
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV14543 1 CV14543 CAMSHAFT
2 CV14544 1 CV14544 CAMSHAFT
3 CV13282 6 CV13282 BOLT
4 ST43057 6 2131A010 WASHER
5 ST33298 1 ST33298 SPRING PIN
6 CV17071 6 CV17071 SETSCREW
7 ST43056 6 2131A008 WASHER
8 ST45778 1 ST45778 SPRING PIN
12 CV19997 2 CV19997 THRUST PLATE
13 ST47004 4 ST47004I SCREW

Perkins 3012柴油機CV19260連桿、連桿瓦威爾遜發電機
序號 零配件號 最近的零配件號 描述
1 CV19260 12 連桿總成
7 KRP3010/010 1 KRP3010/010 連桿瓦 BRG 組件 -U/S
7 KRP3010/020 1 KRP3010/020 連桿瓦 BRG 組件 -U/S
7 KRP3010/030 1 KRP3010/030 連桿瓦 BRG 組件 -U/S
7 KRP3010/040 1 KRP3010/040 連桿瓦 BRG 組件 -U/S
7 KRP3010 3 KRP3010 連桿瓦軸承組件

序號 零配件號 最近的零配件號 描述
2 1 桿
3 1 帽
4 CV19259 1 CV19259 連桿襯套
5 CV999 4 CV999 連桿螺拴
6 CV206 4 CV206 連桿螺帽

威爾遜Perkins發電機CV14573/2水泵
序號 零配件號 最近的零配件號 描述
ST46076 1 ST46076I 堵塞
ST49851 1 ST49851 墊圈
1 CV14573/2 1 CV14573/2 水泵
25 CV1243 1 CV20206 密封墊
26 CVK533 1 CVK533 水泵修理組件
27 CVK534 1 CVK534 水泵修理組件
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
ST46076 1 ST46076I PLUG
ST49851 1 ST49851 WASHER
1 CV14573/2 1 CV14573/2 WATER PUMP
25 CV1243 1 CV20206 GASKET
26 CVK533 1 CVK533 REPAIR KIT - WATER PUMP
27 CVK534 1 CVK534 REPAIR KIT - WATER PUMP

序號 零配件號 最近的零配件號 描述
2 CV14576 1 CV14576 套
4 CV14309 1 CV20055 密封
5 CV14310 1 CV14310 計數器板
6 CV14574 1 CV14574 動葉輪
7 OE1376 2 OE1376 滾珠軸承
8 CV14575 1 CV14575 軸
9 CV1236 1 CV1236 間隔器
10 CV14053 1 CV14053 墊片
11 ST48993 1 2721351 CIRCLIP
12 CV2235 1 CV2235 螺帽
13 CV2234 1 CV2234 螺帽
14 CV1234 1 CV1234 密封
15 CV1233 1 CV1233 圓盤
16 ST10965 1 ST10965 密封O型圈
17 CV5515 1 CV5515 肘管
18 ST46955 1 ST46955 固定螺釘
19 ST43502 5 ST43502 螺拴
20 ST43160 5 2134 A008 墊圈
21 ST43056 5 2131 A008 墊圈
22 CV1227 1 CV1227 水泵傳動機構
23 ST46076 1 ST46076I 堵塞
24 ST49891 1 ST49891 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV14576 1 CV14576 CASING
4 CV14309 1 CV20055 SEAL
5 CV14310 1 CV14310 COUNTER PLATE
6 CV14574 1 CV14574 IMPELLER
7 OE1376 2 OE1376 BALL BEARING
8 CV14575 1 CV14575 SHAFT
9 CV1236 1 CV1236 SPACER
10 CV14053 1 CV14053 SHIM
11 ST48993 1 2721351 CIRCLIP
12 CV2235 1 CV2235 NUT
13 CV2234 1 CV2234 NUT
14 CV1234 1 CV1234 SEAL
15 CV1233 1 CV1233 DISC
16 ST10965 1 ST10965 SEAL - O RING
17 CV5515 1 CV5515 ELBOW
18 ST46955 1 ST46955 SCREW
19 ST43502 5 ST43502 BOLT
20 ST43160 5 2134A008 WASHER
21 ST43056 5 2131A008 WASHER
22 CV1227 1 CV1227 WATER PUMP GEAR
23 ST46076 1 ST46076I PLUG
24 ST49891 1 ST49891 WASHER

勞斯萊斯柴油發電機CV20747恒溫節溫器
Perkins3012柴油機CV20747恒溫節溫器
序號 零配件號 最近的零配件號 描述
1 CV14258 2 CV14258 恒溫節溫器殼
2 CV13582 2 CV13582 密封
3 CV20747 2 CV20747 恒溫節溫器
4 ST91232 1 ST91232 水管
5 ST46411 2 ST46411 夾
6 CV14269 1 CV14269 水管
7 ST43515 8 ST43515 螺拴
8 2134 A008 8 2134 A008 墊圈
9 CV18442 1 CV18442 承接器
10 ST91204 1 ST91204 水管
11 ST46408 2 ST46408 夾
12 CV14263 1 CV14263 水管
13 ST91239 1 ST91239 水管
14 ST46412 2 ST46412 夾
15 CV19492 2 CV72491 密封墊
16 CV20383 2 CV20383 密封墊
17 2314 C045 3 2314 C045 固定螺釘
18 2134 A008 3 2134 A008 墊圈
19 ST20106 2 ST20106 堵塞
20 ST49856 2 ST49856 墊圈
21 ST43502 8 ST43502 螺拴
22 2134 A008 8 2134 A008 墊圈
23 CV14273 1 CV14273 承接器
24 CV14261 1 CV14261 連接
25 ST43511 1 ST43511 螺拴
26 2134 A008 1 2134 A008 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV14258 2 CV14258 THERMOSTAT HOUSING
2 CV13582 2 CV13582 SEAL
3 CV20747 2 CV20747 THERMOSTAT
4 ST91232 1 ST91232 HOSE
5 ST46411 2 ST46411 CLIP
6 CV14269 1 CV14269 WATER PIPE
7 ST43515 8 ST43515 BOLT
8 ST43160 8 2134A008 WASHER
9 CV18442 1 CV18442 ADAPTOR
10 ST91204 1 ST91204 HOSE
11 ST46408 2 ST46408 CLIP
12 CV14263 1 CV14263 WATER PIPE
13 ST91239 1 ST91239 HOSE
14 ST46412 2 ST46412 CLIP
15 CV19492 2 CV72491 GASKET
16 CV20383 2 CV20383 GASKET
17 2314C045 3 2314C045 SETSCREW
18 ST43160 3 2134A008 WASHER
19 ST20106 2 ST20106 PLUG
20 ST49856 2 ST49856 WASHER
21 ST43502 8 ST43502 BOLT
22 ST43160 8 2134A008 WASHER
23 CV14273 1 CV14273 ADAPTOR
24 CV14261 1 CV14261 CONNECTION
25 ST43511 1 ST43511 BOLT
26 ST43160 1 2134A008 WASHER

珀金斯威爾遜3012柴油機KRP3106/010曲軸瓦、止推片
序號 零配件號 最近的零配件號 描述
1 CV14877/1 Z 1 CV14877/1 Z 缸體總成
11 KRP3106/010 1 KRP3106/010 曲軸瓦 -U/S
11 KRP3106/020 1 KRP3106/020 曲軸瓦 -U/S
11 KRP3106/030 1 KRP3106/030 曲軸瓦 -U/S
11 KRP3106/040 1 KRP3106/040 曲軸瓦 -U/S
11 KRP3106 1 KRP3106 曲軸瓦
12 KRP3203/013 1 KRP3203/013 止推片 -O/S
12 KRP3203 1 KRP3203 止推片
14 CV275 2 CV275 堵塞
24 CV9116 6 CV19408 活塞冷卻噴頭
26 ST44441 12 2314 C045 固定螺釘
27 ST43160 12 2134 A008 墊圈
31 CV1418 1 CV1418 板
32 CV20207 1 CV20207 切片密封墊的板
33 CV1420 1 CV1420 板
34 CV20208 1 CV68115 密封墊
35 ST44437 22 2314 C043 固定螺釘
36 ST20606 22 ST20606 墊圈
37 ST20133 1 ST20133I 堵塞
38 ST49891 1 ST49891 墊圈
39 ST45779 8 ST45779 合釘
40 ST20704 5 ST20704 堵塞
41 OE7669 4 OE7669 密封O型圈
42 CV13080 4 CV13080 堵塞
43 ST43324 4 ST43324 堵塞
44 ST20134 1 ST20134 堵塞
45 ST49206 1 ST49206 墊圈
46 CV1470 4 CV1470 線軸
47 CV7789 48 CV7789 圖釘
48 CV7790 32 CV7790 圖釘
49 CV7788 80 CV7788 螺帽
50 OE46176 80 OE46176I 墊圈
51 CV2910 1 CV2910 堵塞
52 CV20002 2 CV20002 固定螺釘
53 ST43333 1 ST43333 堵塞
54 ST43330 1 ST43330 堵塞
55 OE1647 1 OE1647 蓋
56 CV20236 1 CV20236I 密封墊
57 ST43556 2 ST43556 螺拴
58 2134 A010 2 2134 A010 墊圈
59 ST20103 1 ST46078I 堵塞
60 ST49853 1 ST49853 墊圈
61 ST20104 1 ST20104 堵塞
62 ST49891 1 ST49891 墊圈
63 ST20105 1 ST20105 堵塞
64 ST20107 1 ST20107 堵塞
65 ST49209 1 ST49209 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19370/1 1 CV19370/1 CYLINDER BLOCK ASSEMBLY
22 ST20707 1 ST20707 PLUG
23 KRP3106 1 KRP3106 MAIN BEARING KIT
(23) KRP3106/010 1 KRP3106/010 MAIN BEARING KIT - U/S
(23) KRP3106/020 1 KRP3106/020 MAIN BEARING KIT - U/S
(23) KRP3106/030 1 KRP3106/030 MAIN BEARING KIT - U/S
(23) KRP3106/040 1 KRP3106/040 MAIN BEARING KIT - U/S
24 KRP3203 1 KRP3203 THRUST WASHER KIT
(24) KRP3203/013 1 KRP3203/013 THRUST WASHER KIT - O/S
25 CV275 2 CV275 PLUG
26 CV9171 6 CV9171 WASHER
27 ST20702 2 ST20702 PLUG
28 CV19769 4 CV19769 SLEEVE
29 OE2970 4 OE2970 SCREW
30 ST20133 1 ST20133I PLUG
31 ST49891 1 ST49891 WASHER
32 CV1418 1 CV1418 PLATE
33 CV19540 1 CV19540 GASKET - BLANKING PLATE
34 CV19785 1 CV19785 PLATE
35 CV19542 1 CV19542 GASKET - BLANKING PLATE
36 ST44437 22 2314C043 SETSCREW
37 OE48475 22 OE48475 WASHER
38 OE7669 4 OE7669 SEAL - O RING
39 ST45779 8 ST45779 DOWEL
40 ST20704 5 ST20704 PLUG
41 2314C045 24 2314C045 SETSCREW
42 CV12198 3 CV12198 DRAIN PLUG
43 ST49891 3 ST49891 WASHER
44 2131A008 22 2131A008 WASHER

序號 零配件號 最近的零配件號 描述
2 7 帽
3 CV270 1 CV270 合釘
4 CV278 8 CV24546 固定螺釘
5 ST20707 1 ST20707 堵塞
6 ST43706 8 ST43706 螺拴
7 ST43060 8 2131 A016 墊圈
8 ST43330 12 ST43330 堵塞
9 ST43326 10 ST43326 堵塞
10 ST33606 4 ST33606 堵塞
13 CV274 17 CV274 凸輪軸襯套
15 ST43322 20 ST43322 堵塞
16 ST43326 1 ST43326 堵塞
17 ST43657 6 ST43657 螺拴
18 CV9171 6 CV9171 墊圈
20 CV11572 1 CV11572 凸輪軸襯套
21 ST43328 2 ST43328 堵塞
22 ST20701 29 ST20701 堵塞
23 CV1271 12 固定螺釘
25 ST20702 2 ST20702 堵塞
28 ST43324 8 ST43324 堵塞
29 ST46076 1 ST46076I 堵塞
30 ST49851 1 ST49851 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CV20811 12 CV20811 WASHER
2 7 CAP
2 7 CAP
3 CV270 1 CV270 DOWEL
4 CV24547 8 CV24547 BOLT
5 ST43706 8 ST43706 BOLT
6 ST43060 8 2131A016 WASHER
7 ST43330 12 ST43330 PLUG
8 ST43326 2 ST43326 PLUG
9 ST33606 4 ST33606 PLUG
10 CV72010 12 CV72010 LINER - SLIP FIT
10 CV19912 12 CV72010 LINER - SLIP FIT
(10) CV11401 12 CV11401 LINER - SLIP FIT
(10) CV11402 12 CV11402 LINER - OVERSIZE
11 CV274 17 CV274 CAMSHAFT BUSH
12 ST43322 20 ST43322 PLUG
13 ST43326 1 ST43326 PLUG
14 ST43657 6 ST43657 BOLT
15 CV11572 1 CV11572 CAMSHAFT BUSH
16 CV24547 12 CV24547 BOLT
16 ST43729 12 CV24547 BOLT
17 ST20701 29 ST20701 PLUG
18 ST43328 2 ST43328 PLUG
19 ST43324 16 ST43324 PLUG
20 CV13080 4 CV13080 PLUG
21 ST43324 4 ST43324 PLUG

序號 零配件號 最近的零配件號 描述
2 1 止推片
3 1 止推片
4 1 止推片
5 1 止推片

序號 零配件號 最近的零配件號 描述
ST20139 2 ST20139 堵塞
ST49860 2 ST49860 墊圈
1 CV5519 1 室
3 CV2124 8 CV2124 圖釘
4 ST44605 8 2318 A208 公制的螺帽
5 ST43160 8 2134 A008 墊圈
6 ST43056 8 2131 A008 墊圈
7 CV7210/1 1 CV7210/1 冷卻器回廊組件
7 CV7210/1 1 CV7210/1 冷卻器回廊組件
7 CV7210 1 CV7210/1 冷卻器回廊
10 CV20232 4 CV72181 密封墊
11 ST43502 48 ST43502 螺拴
12 ST43160 48 2134 A008 墊圈
13 ST43056 48 2131 A008 墊圈
14 CV7211/1 1 CV7211/1 冷卻器回廊組件
14 CV7211/1 1 CV7211/1 冷卻器回廊組件
14 CV7211 1 CV7211/1 冷卻器回廊
17 CV5595 1 CV5595 室
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV12081/2 1 CV12081/2 INDUCTION MANIFOLD
8 CV20233 4 CV20233 GASKET - IND MANIFOLD
9 CV12081/2 1 CV12081/2 INDUCTION MANIFOLD
17 CV507 12 CV507 BOBBIN
18 ST10928 24 ST10928 SEAL - O RING
19 CV12997 2 CV12997 BLANKING PLATE
20 CV19492 2 CV72491 GASKET
21 ST44441 4 2314C045 SETSCREW
22 ST43160 4 2134A008 WASHER
23 ST20133 8 ST20133I PLUG
24 ST49891 8 ST49891 WASHER
25 CV13201 2 CV13201 BLANKING PLATE
26 CV14062 2 CV20379 GASKET
27 CV8218 2 CV8218 PLATE
28 ST43504 4 ST43504 BOLT
29 ST43160 4 2134A008 WASHER
30 ST44452 2 ST44452 SETSCREW
31 ST49940 2 ST49940 WASHER
32 ST44458 28 2314C053 SETSCREW
33 ST43161 28 2134A010 SPRING WASHER
34 ST43057 28 2131A010 WASHER
35 U5MH0050 1 U5MH0050 HOSE KIT
37 ST43563 12 ST43563 BOLT
38 ST43161 12 2134A010 SPRING WASHER
39 ST43057 12 2131A010 WASHER
40 CV14062 1 CV20379 GASKET
41 ST44441 8 2314C045 SETSCREW
42 ST43160 8 2134A008 WASHER
43 ST43056 8 2131A008 WASHER
44 CV14062 1 CV20379 GASKET

勞斯萊斯威爾遜發電機組CV24559曲軸
Perkins3012柴油機CV24559曲軸
序號 零配件號 最近的零配件號 描述
1 CV13835 1 CV24559 曲軸組件
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV13835 1 CV24559 CRANKSHAFT KIT U965188B
2 CV24559 1 CV24559 CRANKSHAFT U965189B
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV9183 1 CV24559 CRANKSHAFT U965188B
3 CV13458 6 CV13458 PLUG U965188B
4 CV1209 6 CV1209 SNAP RING U965188B
5 CV13830 3 CV13830 PLUG U965188B
6 ST10609 6 ST10609 SEAL - O RING U965188B

序號 零配件號 最近的零配件號 描述
2 1 曲軸
3 CV13458 6 CV13458 堵塞
4 CV1209 6 CV1209 扣環
5 CV13830 3 CV13830 堵塞
6 ST10609 6 ST10609 密封O型圈

序號 零配件號 最近的零配件號 描述
1 CV7926 1 曲軸皮帶輪
3 CV12174 12 CV12174 螺拴
4 2134 A012 12 2134 A012 墊圈

威爾遜P880E發電機組CV24952汽缸蓋總成
Perkins3008 3012柴油機汽缸蓋總成
序號 零配件號 最近的零配件號 描述
1 CV19682/2 4 CV24952/3 汽缸蓋總成
13 OE43640 12 OE43640 堵塞
14 CV13202 4 CV13202 汽缸蓋墊
15 ST10603 12 ST10603 密封O型圈
16 ST45778 8 ST45778 彈簧銷
17 CV1472 12 CV1472 固定螺釘
18 CV12855 35 CV69480 固定螺釘
19 CV12853 40 CV69478 固定螺釘

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19938 4 CV24521 CYLINDER HEAD KIT
4 CV20815 6 CV20815 VALVE SEAT INSERT
4 CV21070 1 CV21070 INSERT
29 CV13202 4 CV13202 GASKET - CYLINDER HEAD
30 CV12853 40 CV69478 SETSCREW
31 CV1472 12 CV1472 SETSCREW
32 CV12855 36 CV69480 SETSCREW
33 OE43640 12 OE43640 PLUG
34 ST10603 12 ST10603 SEAL - O RING
35 ST45778 8 ST45778 SPRING PIN
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV18421/2 1 CV18421/2 CYLINDER HEAD KIT
7 CV17435 6 CV21058 INTAKE VALVE
8 OE43638 12 OE43638 SEAT
9 CV11403 12 CV11403 VALVE SPRING
10 OE43262 6 OE43262 SEAT
11 OE42571 12 OE42571 VALVE COLLET
12 CV17434 6 Check History EXHAUST VALVE
13 CV18761 6 CV18761 ROTATOR
14 OE42570 12 OE42570 VALVE COLLET

勞斯萊斯P80E發電機組CV20814氣門、OE47572氣門導管
Perkins3008 3012柴油機氣門、座圈、導管
序號 零配件號 最近的零配件號 描述
2 1 汽缸蓋
3 CV7699 6 CV20814 氣門座圈
3 CV14128 1 CV21069 氣門座圈
4 OE43633 6 CV20815 氣門座圈
4 OE47574 1 CV21070 氣門座圈
5 OE47572 6 OE47572 氣門導管
6 OE47573 6 OE47573 氣門導管
8 OE43636 6 OE43636 氣門導管
9 ST20701 1 ST20701 堵塞
10 ST43322 9 ST43322 堵塞
11 ST43309 3 ST43309 堵塞
12 ST43317 10 ST43317 堵塞
20 CV19679 3 CV19679 鎖定板
21 2314 J003 3 2314 J003 固定螺釘
22 ST43161 3 2134 A010 彈簧塾圈
23 ST43057 3 2131 A010 墊圈
24 CV19681 3 CV19681 套筒
25 ST10609 3 ST10609 密封O型圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
3 CV20814 6 CV20814 VALVE SEAT INSERT
3 CV21069 1 CV21069 INSERT
5 OE47572 6 OE47572 VALVE GUIDE
6 OE47573 6 OE47573 VALVE GUIDE
17 CV14134 3 CV14134 SLEEVE
18 OE43636 6 OE43636 VALVE GUIDE
19 ST20701 1 ST20701 PLUG
20 ST43322 9 ST43322 PLUG
21 ST43309 3 ST43309 PLUG
22 ST43317 10 ST43317 PLUG

威爾遜P750發電機配件CV11401汽缸套
Perkins3008 3012柴油機CV11401汽缸套
序號 零配件號 最近的零配件號 描述
1 CV72010 12 CV72010 汽缸套
1 CV19912 12 CV72010 汽缸套
(1) CV11401 12 CV11401 汽缸套
(1) CV11402 12 CV11402 汽缸套-特大號

Perkins3008 3012柴油機CV12310岐管
序號 零配件號 最近的零配件號 描述
1 CV12310 2 CV12310 岐管
3 CV12310 2 CV12310 岐管
5 ST43325 2 ST43325 堵塞
6 CV8927 4 CV8927 板
7 CV20227 4 CV20227 密封墊
8 ST44456 16 ST44456 螺拴
9 ST43161 16 2134 A010 彈簧塾圈
10 CV13396 2 CV13396 堵塞
11 ST10935 2 ST10935 封閉砂條
12 ST44441 2 2314 C045 固定螺釘
13 ST43160 2 2134 A008 墊圈
15 CV12311 12 CV12311 線軸
16 ST10890 24 ST10890 封閉砂條
17 ST44458 8 2314 C053 固定螺釘
18 ST44606 6 2318 A209 公制的螺帽
19 ST43161 8 2134 A010 彈簧塾圈
20 CV12560 2 CV12560 帽
21 ST43551 8 ST43551 螺拴
22 ST43161 8 2134 A010 彈簧塾圈
23 ST43574 48 ST43574 螺拴
24 ST43161 48 2134 A010 彈簧塾圈

序號 零配件號 最近的零配件號 描述
1 ST44441 6 2314 C045 固定螺釘
2 ST43160 6 2134 A008 墊圈
3 CV5822 1 CV5822 墊片
4 CV8871 1 CV8871 密封
5 ST43056 6 2131 A008 墊圈
6 CV398/1 1 CV398/1 半圓鍵
6 CV398/2 1 CV398/2 半圓鍵
6 CV398/3 1 CV398/3 半圓鍵
6 CV398/4 1 CV398/4 半圓鍵
6 CV398/5 1 CV398/5 半圓鍵
7 CV11560 1 CV11560 燃油泵傳動機構
8 CV8870 2 CV8870 推拔軸承
9 CV8663 1 CV8663 殼

序號 零配件號 最近的零配件號 描述
1 KRP1331 1 KRP1331 板組件
2 CV9022 1 CV9022 凸緣
3 CV20110 1 CV20110 軸
4 CV1437 1 CV1437 夾合裝置
5 2314 J004 4 2314 J004 固定螺釘
6 CV1428 1 CV1428 飛輪
8 CV20737 6 CV20737 螺拴
9 CV17315 6 CV17315 螺帽
10 CV20737 2 CV20737 螺拴
11 CV2151 2 CV2151 螺帽
13 CV9024 1 CV9024 螺帽
14 CV9023 1 CV9023 墊圈

序號 零配件號 最近的零配件號 描述
1 CV5539 1 CV5539 托架
2 CV5544 1 CV5544 附加的滑車
3 2722 A022 1 2722 A022 CIRCLIP
4 OE44687 1 OE44687 滾珠軸承
5 CV5541 1 CV5541 車軸
6 CV5543 1 CV5543 套筒
7 ST48985 1 ST48985 CIRCLIP
8 OE44687 1 OE44687 滾珠軸承
9 CV5324 1 CV5324 螺帽
10 ST43066 1 ST43066I 墊圈
11 CV19793 1 CV19793 螺拴
12 2318 A310 2 2318 A310 螺帽
13 ST43552 2 ST43552 螺拴
14 2134 A010 2 2134 A010 墊圈
15 2131 A010 2 2131 A010 墊圈

威爾遜P625E發電機CV17402曲軸油封
Perkins3008 3012柴油機CV17402曲軸油封
序號 零配件號 最近的零配件號 描述
1 CV9278/1 Z 1 CV9278/1 Z 殼
6 CV20362 1 CV20362 密封墊
9 ST49007 1 ST49007 CIRCLIP
14 ST49007 1 ST49007 CIRCLIP
15 CV5533 1 CV5533 墊圈
16 CV5324 1 CV5324 螺帽
17 CV17402 1 CV17402 曲軸前油封
18 CV1305 2 CV1305 合釘
19 CV1306 2 CV1306 密封O型圈
20 ST43712 5 ST43712 螺拴
21 ST43164 5 ST43164 墊圈
22 2131 A016 5 2131 A016 墊圈
23 ST43515 9 ST43515 螺拴
24 2134 A008 9 2134 A008 墊圈
25 2131 A008 9 2131 A008 墊圈
26 CV7617 1 CV7617 圖釘
27 2318 A222 1 2318 A222 螺帽
28 ST43164 2 ST43164 墊圈
29 2131 A016 2 2131 A016 墊圈
30 CV14151 2 CV14151 堵塞

Perkins 3012柴油機CV14445 CV14092飛輪、輪殼
序號 零配件號 最近的零配件號 描述
1 CV14445/1 1 CV14445/1 飛輪總成
4 CV6460 1 CV6460 銷
5 CV2481 1 CV2481 圈
6 ST46709 16 ST46709 CAPSCREW

序號 零配件號 最近的零配件號 描述
1 CV14092 1 飛輪殼
2 CV20222 1 CV20222 密封墊
3 CV17404 1 CV17404 密封 -背面端油
4 ST46079 1 ST46079 堵塞
5 ST49891 1 ST49891 墊圈
6 CV6461 2 CV6461 銷
7 OE25649 1 OE25649 堵塞
8 ST49853 1 ST49853 墊圈
9 ST20704 2 ST20704 堵塞
10 ST43652 1 ST43652 螺拴
11 ST43163 1 ST43163 墊圈
12 ST43603 8 ST43603 公制的螺拴
13 2134 A012 8 2134 A012 墊圈
14 ST43602 2 ST43602 螺拴
15 2134 A012 2 2134 A012 墊圈
16 ST43620 2 ST43620 螺拴
17 2134 A012 2 2134 A012 墊圈
18 ST43605 9 ST43605 螺拴
19 2134 A012 9 2134 A012 墊圈

序號 零配件號 最近的零配件號 描述
1 CV1499 1 CV1499 架設板
2 CV19541 1 CV19541 密封墊
3 ST43580 2 ST43580 螺拴
4 2134 A010 2 2134 A010 墊圈
5 2131 A010 2 2131 A010 墊圈
6 ST43552 2 ST43552 螺拴
7 2134 A010 2 2134 A010 墊圈
8 2131 A010 2 2131 A010 墊圈
9 ST44456 6 ST44456 螺拴
10 2134 A010 6 2134 A010 墊圈
11 ST43557 2 ST43557 螺拴
12 2134 A010 2 2134 A010 墊圈
13 2131 A010 2 2131 A010 墊圈
14 ST43583 2 ST43583 螺拴
15 2134 A010 2 2134 A010 墊圈
16 2131 A010 2 2131 A010 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV13851 1 CV13851 INDUCTION MANIFOLD
8 CV2025 2 CV20211I GASKET - IND MANIFOLD
9 CV13852 1 CV13852 INDUCTION MANIFOLD
16 ST20133 2 ST20133I PLUG
17 ST49891 2 ST49891 WASHER
18 ST44441 28 2314C045 SETSCREW
19 ST43160 28 2134A008 WASHER
20 ST43056 28 2131A008 WASHER

Perkins 3012柴油機CV70056凸輪軸傳動齒輪
序號 零配件號 最近的零配件號 描述
1 1 凸輪軸傳動機構
2 1 凸輪軸傳動機構
3 1 凸輪軸傳動機構
4 1 燃油泵傳動機構
5 2 推拔軸承
6 CV70056 1 CV70056 混合傳動機構
6 CV7866 1 CV70056 混合傳動機構
7 CV7868 1 CV7868Z 混合傳動機構
10 CV17071 12 CV17071 固定螺釘
11 ST43056 12 2131 A008 墊圈
12 ST45778 1 ST45778 彈簧銷
13 CV13003 2 CV13003Z 車軸
16 CV8666 2 CV8666 鎖定板
17 CV11604 2 CV11604 推力板
18 CV430 4 CV430 止推片
19 CV1412 1 CV1412Z 惰輪傳動機構
22 CV12174 6 CV12174 螺拴
23 CV1414 1 CV1414Z 惰輪傳動機構
26 CV329 2 CV329 車軸
27 ST43058 2 2131 A012 墊圈
28 CV1415 1 CV1415 惰輪傳動機構
31 1 機機油泵傳動機構
32 CV1381 2 CV1381 止推片

序號 零配件號 最近的零配件號 描述
14 CV12820 1 CV12820 車軸
15 CV2491 1 CV2491 間隔器

威爾遜勞斯萊斯柴油發電機配件CV13140Z機油冷卻器
序號 零配件號 最近的零配件號 描述
1 CV13140Z 1 CV13140Z 機油冷卻器
10 ST46078 1 ST46078I 堵塞
11 ST49853 1 ST49853 墊圈
12 ST43622 3 ST43622 螺拴
13 2134 A012 3 2134 A012 墊圈
14 2131 A012 3 2131 A012 墊圈
15 ST10616 1 ST10616 密封O型圈
16 ST10609 3 ST10609 密封O型圈
17 ST46077 1 ST46077 堵塞
18 ST49852 1 ST49852 墊圈
19 ST43620 3 ST43620 螺拴
20 2134 A012 3 2134 A012 墊圈
21 2131 A012 3 2131 A012 墊圈

序號 零配件號 最近的零配件號 描述
2 CV13139 1 CV13139 套
3 CV5620 1 CV5620 TUBESTACK
4 CV13136 3 CV13136 承接器
5 ST20134 1 ST20134 堵塞
6 ST49206 1 ST49206 墊圈
7 ST44424 2 ST44424 固定螺釘
8 2131 A012 2 2131 A012 墊圈
9 2131 A006 2 2131 A006 墊圈

序號 零配件號 最近的零配件號 描述
1 CV13140Z 1 CV13140Z 機油冷卻器
10 ST46078 1 ST46078I 堵塞
11 ST49853 1 ST49853 墊圈
12 ST43622 3 ST43622 螺拴
13 2134 A012 3 2134 A012 墊圈
14 2131 A012 3 2131 A012 墊圈
15 ST10616 1 ST10616 密封O型圈
16 ST10609 3 ST10609 密封O型圈
17 ST46077 1 ST46077 堵塞
18 ST49852 1 ST49852 墊圈
19 ST43620 3 ST43620 螺拴
20 2134 A012 3 2134 A012 墊圈
21 2131 A012 3 2131 A012 墊圈

序號 零配件號 最近的零配件號 描述
2 CV13139 1 CV13139 套
3 CV5620 1 CV5620 TUBESTACK
4 CV13136 3 CV13136 承接器
5 ST20134 1 ST20134 堵塞
6 ST49206 1 ST49206 墊圈
7 ST44424 2 ST44424 固定螺釘
8 2131 A012 2 2131 A012 墊圈
9 2131 A006 2 2131 A006 墊圈

威爾遜柴油發電機CV11804機機油泵
序號 零配件號 最近的零配件號 描述
1 CV11804 1 CV11804 機機油泵
(1) CV11804R 1 CV11804R 機機油泵 -交換
13 OE4421 2 OE4421 銷
14 ST43557 4 ST43557 螺拴
15 2134 A010 4 2134 A010 墊圈
16 CV13176 1 CV13176 堵塞
17 ST10619 2 ST10619 密封O型圈
18 CV12722 1 CV12722 油管
19 CV12723 1 CV12723 線軸
20 ST10615 1 ST10615 密封O型圈
21 ST10616 1 ST10616 密封O型圈
22 CV1274 1 CV1274 機機油泵傳動機構

序號 零配件號 最近的零配件號 描述
2 ST10614 4 ST10614 密封O型圈
3 CV18919 1 肘管
4 CV20335 1 CV20335 密封墊
5 ST43509 2 ST43509 螺拴
6 2134 A008 2 2134 A008 墊圈
7 2131 A008 2 2131 A008 墊圈
13 CV11762 1 CV11762 油管

序號 零配件號 最近的零配件號 描述
2 CV11802 1 CV11802 套
3 CV2279 1 CV2279 機機油泵傳動機構
4 CV5340 1 CV5340 軸
5 CV11803 1 CV11803 蓋
6 CV358 2 CV358 襯套
7 CV5671 1 CV5671 合釘
8 CV5339 1 CV5339 軸
9 ST44632 1 ST44632 鎖緊螺母
10 CV334 1 CV334 定位鍵墊圈
11 ST43518 6 ST43518 螺拴
12 2134 A008 6 2134 A008 墊圈

序號 零配件號 最近的零配件號 描述
1 CV7755/1 Z 1 CV7755/1 Z 閥
12 CV5122 2 CV5122 線軸
13 ST10615 8 ST10615 密封O型圈
14 ST46077 1 ST46077 堵塞
15 ST49852 1 ST49852 墊圈
16 ST46078 1 ST46078I 堵塞
17 ST49853 1 ST49853 墊圈
18 ST43655 3 ST43655 螺拴
19 ST43163 3 ST43163 墊圈
20 ST43059 3 ST43059 墊圈
21 ST43657 3 ST43657 螺拴
22 ST43163 3 ST43163 墊圈
23 ST43059 3 ST43059 墊圈

序號 零配件號 最近的零配件號 描述
2 1 放泄閥
6 CV5121 1 CV5121 柱塞
7 CV1558 1 CV1558 彈簧
8 CV7719 1 CV7719 帽
9 ST49859 1 ST49859 墊圈
10 ST20106 2 ST20106 堵塞
11 ST49856 2 ST49856 墊圈

序號 零配件號 最近的零配件號 描述
1 CV12724 1 CV12724 油填隙料
2 OE52128 1 OE52128 密封墊
3 ST43552 2 ST43552 螺拴
4 2134 A010 2 2134 A010 墊圈

威爾遜發電機配件CV19976活塞、CVK564活塞環組件
序號 零配件號 最近的零配件號 描述
1 CV19976/1 12 CV19976/1 活塞組件
5 CVK564 12 CVK564 活塞環組件
10 CVK502 12 CVK502 活塞環組件

序號 零配件號 最近的零配件號 描述
2 1 活塞
3 1 軸頭銷
4 CV565 2 CV565 CIRCLIP
4 CV19330 2 CV19330 CIRCLIP

序號 零配件號 最近的零配件號 描述
1 CV285 24 CV285 PUSHROD
2 CV70122 24 CV70122 挺桿
2 CV65451 24 CV70122 挺桿

威爾遜奧林匹亞發電機CV19169 搖臂室總成
序號 零配件號 最近的零配件號 描述
1 CV19169 4 CV19169 搖臂室總成
15 ST46614 32 ST46614 CAPSCREW
16 CV20376 4 CV20376 密封墊
17 OE52035 24 CV24523 結軸
20 ST43563 32 ST43563 螺拴
21 2134 A010 32 2134 A010 墊圈
22 2131 A010 32 2131 A010 墊圈

序號 零配件號 最近的零配件號 描述
2 CV8160/2 Z 1 CV8160/2 Z 搖臂軸 ASSY-未成年人
2 1 砂箱
5 ST47452 10 ST47452 氣門座圈
6 CV2255 8 CV2255 墊圈
7 CV1619 2 CV1619 密封O型圈
8 CV593 1 CV593 固定螺釘
9 2131 A008 1 2131 A008 墊圈
9 2134 A008 1 2134 A008 墊圈
10 OE43641 3 OE43641 搖臂軸彈簧
11 CV1913 6 CV1913 搖臂總成

序號 零配件號 最近的零配件號 描述
1 結軸
OE42556 1 OE42556 鈕扣
18 OE41798 1 OE41798 固定螺釘
19 OE42293 1 OE42293 鎖緊螺母

珀金斯發電機配件CV19148搖臂室蓋
序號 零配件號 最近的零配件號 描述
1 CV19148 4 CV19148 搖臂室蓋
2 CV20400 4 CV20400 搖臂室蓋墊片
3 2314 C045 16 2314 C045 固定螺釘
4 2134 A008 16 2134 A008 墊圈
5 2131 A008 16 2131 A008 墊圈
6 ST43502 8 ST43502 螺拴
7 2134 A008 8 2134 A008 墊圈
8 2131 A008 8 2131 A008 墊圈
9 ST43504 16 ST43504 螺拴
10 2134 A008 16 2134 A008 墊圈
11 2131 A008 16 2131 A008 墊圈

威爾遜珀金斯3012發電機CV21058 CV17434氣門
珀金斯柴油機3012 V21058 CV17434氣門
序號 零配件號 最近的零配件號 描述
1 CV19716 4 CV24952/3 汽缸蓋總成

序號 零配件號 最近的零配件號 描述
2 1 汽缸蓋
3 CV7699 6 CV20814 氣門座圈
3 CV14128 1 CV21069 氣門座圈
4 OE43633 6 CV20815 氣門座圈
4 OE47574 1 CV21070 氣門座圈
5 OE47572 6 OE47572 氣門導管
6 OE47573 6 OE47573 氣門導管
8 OE43636 6 OE43636 氣門導管
9 ST20701 1 ST20701 堵塞
10 ST43322 9 ST43322 堵塞
11 ST43309 3 ST43309 堵塞
12 ST43317 10 ST43317 堵塞
13 CV17435 6 CV21058 進氣門
14 CV19281 6 CV19281 密封 - 閥轉桿
15 CV11403 6 CV11403 氣門彈簧
16 OE43262 6 OE43262 位子
17 OE42571 12 OE42571 氣門鎖夾
18 CV17434 6 排氣門閥
19 CV19282 6 密封
20 CV11403 6 CV11403 氣門彈簧
21 CV19269 6 帽
22 OE42570 12 OE42570 氣門鎖夾
23 CV19679 3 CV19679 鎖定板
24 2314 J003 3 2314 J003 固定螺釘
25 ST43161 3 2134 A010 彈簧塾圈
26 ST43057 3 2131 A010 墊圈
27 CV19681 3 CV19681 套筒
28 ST10609 3 ST10609 密封O型圈
29 OE43640 3 OE43640 堵塞
30 ST10603 3 ST10603 密封O型圈
31 ST45778 2 ST45778 彈簧銷

序號 零配件號 最近的零配件號 描述
1 CV17435 24 CV21058 進氣門
2 OE43638 24 OE43638 位子
3 CV11403 24 CV11403 氣門彈簧
4 OE43262 24 OE43262 位子
5 OE42571 48 OE42571 氣門鎖夾
6 CV17434 24 排氣門閥
7 OE43638 24 OE43638 位子
8 CV11403 24 CV11403 氣門彈簧
9 CV18761 24 CV18761 回轉的人
10 OE42570 48 OE42570 氣門鎖夾

威爾遜信奧林匹亞發電機CV65430啟動馬達
Perkins珀金斯3012啟動馬達
序號 零配件號 最近的零配件號 描述
1 CV5296 1 CV65430 啟動馬達
(1) CV5296R 1 CV65430R 啟動馬達
2 ST44500 2 ST44500 固定螺釘
3 ST43164 2 ST43164 墊圈
4 ST44500 1 ST44500 固定螺釘
5 ST43164 1 ST43164 墊圈

序號 零配件號 最近的零配件號 描述
2 OD17688 1 OD17688 鎖緊螺母
3 OD15391 1 OD15391 墊圈
4 OD15390 1 OD15390 螺帽
5 OD15400 1 OD15400 墊圈
6 CV3022 1 CV3022 鉛
7 OD19782 1 OD19782 墊圈
8 OD15396 2 OD15396 襯套
9 OD17266 1 OD17266 殼
10 OD15401 4 OD15401 固定螺釘
11 OD15402 4 OD15402 墊圈
12 OD15392 1 OD15392 堵塞
13 OD16762 1 OD16762 心
14 OD15404 12 OD15404 墊圈
15 OD17267 1 OD17267 連接
16 OD15400 1 OD15400 墊圈
17 OD15397 1 OD15397 CIRCLIP
18 OD17268 4 OD17268 夾持工具
19 OD15415 8 OD15415 刷
20 OD15408 4 OD15408 固定螺釘
21 OD15407 4 OD15407 墊圈
22 OD15406 4 OD15406 墊圈
23 OD15405 4 OD15405 襯套
24 CV4828 1 CV4828 連接
25 OD15412 8 OD15412 固定螺釘
26 OD15411 4 OD15411 板
27 OD15417 1 OD15417I 密封O型圈
28 OD15399 1 OD15399 襯套
29 OD17269 1 OD17269 帶
30 OD17270 2 OD17270 固定螺釘
31 OD15419 2 OD15419 螺帽
32 OD15410 1 OD15410 墊圈
33 OD15409 1 OD15409 墊圈
34 OD21480 1 OD21480 電樞
35 OD15423 1 OD15423 墊圈
36 OD15424 1 OD21474 墊圈
37 CV3024 1 CV3024 箱總成
38 CV3027 1 CV3027 固定螺釘
39 OD20701 1 OD20701 絕緣體
40 CV3026 4 CV3026 磁石的板
41 CV3025 1 CV3025 線圈
42 OD16748 8 OD16748 固定螺釘
43 OD15422 2 OD15422 固定螺釘
44 CV3021 1 CV3021 連接
45 OD17688 3 OD17688 鎖緊螺母
46 CV3030 1 CV3030 墊圈
47 OD20703 1 OD20703 絕緣體
48 OD15397 1 OD15397 CIRCLIP
49 OD20702 1 OD20702 絕緣體
50 OD15390 1 OD15390 螺帽
51 OD15392 1 OD15392 堵塞
52 OD16762 1 OD16762 心
53 OD19783 1 OD19783I 套筒
54 OD16755 1 OD16755 密封O型圈
55 OD15417 1 OD15417I 密封O型圈
56 OD17275 1 OD17275 殼
57 OD16754 5 OD16754 固定螺釘
58 OD15402 5 OD15402 墊圈
59 OD16753 1 桿
60 OD16752 1 OD16752 密封O型圈
61 OD16751 1 OD16751 固定螺釘
62 OD17276 1 OD17276 墊圈
63 OD16765 1 OD16765 長靴
64 OD16756 1 OD16756 固定螺釘
65 CV3031 1 CV3031 桿
66 OD16747 1 OD16747I 軋輥銷
67 OD15424 2 OD21474 墊圈
68 OD16758 1 Y97/00032 駕駛
69 CV4838 1 CV4838 止推片
70 CV3032 2 CV3032 臂
71 OD16759 1 OD16759 密封O型圈
72 OD20704 1 OD20704 殼
73 OD16761 6 OD16761 固定螺釘
74 OD15399 1 OD15399 襯套
75 OD16764 1 OD16764 停機電磁閥

序號 零配件號 最近的零配件號 描述
77 OD17291 1 OD17291 磁石
78 OD17297 1 OD16764 柱塞
79 OD17282 1 OD17282 彈簧
80 OD18509 1 OD18509 軸
81 OD17252 3 OD17252 墊圈
83 OD17283 1 OD17283 彈簧
84 OD17284 1 OD17284 接觸
85 OD17285 1 OD17285 襯套
86 OD17287 1 OD17287 絕緣體
87 OD17185 1 OD17185 墊圈
88 OD17288 1 OD17288 螺帽
89 1 終點
90 1 終點
91 OD17286 1 OD17286 守衛
92 2 終點
93 2 固定螺釘
94 OD17292 2 OD17292 絕緣體
95 OD17279 2 OD17279 圈
96 OD17252 1 OD17252 墊圈
98 OD17196 2 OD17196 螺帽
99 OD17245 1 OD17245 底座
100 OD17231 1 OD17231 固定螺釘
101 OD17298 1 OD17298 固定螺釘
102 OD17299 1 OD17299 固定螺釘
103 OE52575 4 OE52575 密封O型圈
104 OD17280 2 OD17280 墊圈
105 OD15391 2 OD15391 墊圈
106 OD15390 2 OD15390 螺帽

勞斯萊斯柴油發電機P750E油底殼墊片CV20214I
Perkins3012柴油發動機CV20214I油底殼墊片
序號 零配件號 最近的零配件號 描述
1 CV2852/1 1 CV12350 油底殼
4 CV20214 1 CV20214I 油底殼墊片
5 ST43586 4 ST43586 螺拴
6 2134 A010 4 2134 A010 墊圈
7 2131 A010 4 2131 A010 墊圈
8 ST43561 20 ST43561 螺拴
9 2134 A010 20 2134 A010 墊圈
10 2131 A010 20 2131 A010 墊圈
11 CV985 1 CV985 堵塞
12 ST49206 1 ST49206 墊圈
13 CV2874 1 CV2874 過濾器
14 CV1275 7 CV1275 自己的出鐵固定螺釘

序號 零配件號 最近的零配件號 描述
1 CV13339 1 CV13339 油底殼承接器
5 CV20213 1 CV20213 油底殼
6 ST43502 2 ST43502 螺拴
7 2134 A008 2 2134 A008 墊圈
8 2131 A008 2 2131 A008 墊圈
9 ST10619 1 ST10619 密封O型圈
10 ST46633 2 ST46633 CAPSCREW
11 2134 A010 2 2134 A010 墊圈
12 2131 A010 2 2131 A010 墊圈
13 ST43561 12 ST43561 螺拴
14 2134 A010 12 2134 A010 墊圈
15 2131 A010 12 2131 A010 墊圈
16 ST46633 5 ST46633 CAPSCREW
17 2134 A010 5 2134 A010 墊圈
18 ST43558 14 ST43558I 螺拴
19 2134 A010 14 2134 A010 墊圈
20 2131 A010 14 2131 A010 墊圈

序號 零配件號 最近的零配件號 描述
1 CV5656 1 CV5656 導管
2 CV20332 2 CV20332 密封墊
3 ST91002 2 ST91002 水管
4 ST46411 4 ST46411 夾
5 ST46078 4 ST46078I 堵塞
6 ST49853 4 ST49853 墊圈
7 ST43512 6 ST43512 螺拴
8 2134 A008 6 2134 A008 墊圈
9 2131 A008 6 2131 A008 墊圈
10 ST43502 8 ST43502 螺拴
11 2134 A008 8 2134 A008 墊圈
12 2131 A008 8 2131 A008 墊圈
13 CV5657 1 CV5657 導管
14 ST43507 2 ST43507 螺拴
15 2134 A008 2 2134 A008 墊圈
16 2131 A008 2 2131 A008 墊圈

威爾信勞斯萊斯柴油發電機組550KW連桿
序號 零配件號 最近的零配件號 描述
1 CV6424/A1 1 CV6424/A1 連桿總成對 4.375 KG 4.350 的 4.350 KG-4.375 KG
1 CV6424/A2 1 CV6424/A2 連桿總成對 4.400 KG 4.375 的 4.375 KG-4.400 KG
1 CV6424/A3 1 CV6424/A3 連桿總成對 4.425 KG 4.400 的 4.400 KG-4.425 KG
1 CV6424/A4 1 CV6424/A4 連桿總成對 4.450 KG 4.425 的 4.425 KG-4.450 KG
1 CV6424/B1 1 CV6424/B1 連桿總成對 4.475 KG 4.450 的 4.450 KG-4.475 KG
1 CV6424/B2 1 CV6424/B2 連桿總成對 4.500 KG 4.475 的 4.475 KG-4.500 KG
1 CV6424/B3 1 CV6424/B3 連桿總成對 4.525 KG 4.500 的 4.500 KG-4.525 KG
1 CV6424/B4 1 CV6424/B4 連桿總成對 4.550 KG 4.525 的 4.525 KG-4.550 KG
1 CV6424/C1 1 CV6424/C1 連桿總成對 4.575 KG 4.550 的 4.550 KG-4.575 KG
1 CV6424/C2 1 CV6424/C2 連桿總成對 4.600 KG 4.575 的 4.575 KG-4.600 KG
1 CV6424/C3 1 CV6424/C3 連桿總成對 4.625 KG 4.600 的 4.600 KG-4.625 KG
1 CV6424/C4 1 CV6424/C4 連桿總成對 4.650 KG 4.625 的 4.625 KG-4.650 KG
1 CV6424/D1 1 CV6424/D1 連桿總成對 4.675 KG 4.650 的 4.650 KG-4.675 KG
1 CV6424/D2 1 CV6424/D2 連桿總成對 4.700 KG 4.675 的 4.675 KG-4.700 KG
1 CV6424/D3 1 CV6424/D3 連桿總成對 4.725 KG 4.700 的 4.700 KG-4.725 KG
1 CV6424/D4 1 CV6424/D4 連桿總成對 4.750 KG 4.725 的 4.725 KG-4.750 KG
1 CV6424/E1 1 CV6424/E1 連桿總成對 4.775 KG 4.750 的 4.750 KG-4.775 KG
1 CV6424/E2 1 CV6424/E2 連桿總成對 4.800 KG 4.775 的 4.775 KG-4.800 KG
1 CV6424/E3 1 CV6424/E3 連桿總成對 4.825 KG 4.800 的 4.800 KG-4.825 KG
1 CV6424/E4 1 CV6424/E4 連桿總成對 4.850 KG 4.825 的 4.825 KG-4.850 KG
1 CV6424/Y1 1 CV6424/Y1 連桿總成對 4.175 KG 4.150 的 4.150 KG-4.175 KG
1 CV6424/Y2 1 CV6424/Y2 連桿總成對 4.200 KG 4.175 的 4.175 KG-4.200 KG
1 CV6424/Y3 1 CV6424/Y3 連桿總成對 4.225 KG 4.200 的 4.200 KG-4.225 KG
1 CV6424/Y4 1 CV6424/Y4 連桿總成對 4.250 KG 4.225 的 4.225 KG-4.250 KG
1 CV6424/Z1 1 CV6424/Z1 連桿總成對 4.275 KG 4.250 的 4.250 KG-4.275 KG
1 CV6424/Z2 1 CV6424/Z2 連桿總成對 4.300 KG 4.275 的 4.275 KG-4.300 KG
1 CV6424/Z3 1 CV6424/Z3 連桿總成對 4.325 KG 4.300 的 4.300 KG-4.325 KG
1 CV6424/Z4 1 CV6424/Z4 連桿總成對 4.350 KG 4.325 的 4.325 KG-4.350 KG
1 CV6424 8 連桿總成
7 KRP3007/010 1 KRP3007/010 連桿瓦 BRG 組件 -U/S
7 KRP3007/020 1 KRP3007/020 連桿瓦 BRG 組件 -U/S
7 KRP3007/030 1 KRP3007/030 連桿瓦 BRG 組件 -U/S
7 KRP3007/040 1 KRP3007/040 連桿瓦 BRG 組件 -U/S
7 KRP3007 3 KRP3007 連桿瓦軸承組件

威爾信勞斯萊斯柴油發電機組550KW連桿襯套
序號 零配件號 最近的零配件號 描述
2 1 桿
3 1 帽
4 CV6423 1 CV6423 連桿襯套
5 CV999 4 CV999 連桿螺拴
6 CV206 4 CV206 連桿螺帽

序號 零配件號 最近的零配件號 描述
1 CV18058 1 CV18058 橫斷軸
2 CV19036 1 CV19036 桿
3 ST17402 1 ST17402 推拔銷
4 CV19776 1 CV19776 桿
5 CV2524 3 0610031 CIRCLIP
6 CV12904 1 CV12904 操縱桿
7 UF4553 4 UF4553 鎖緊螺母
8 ST21282 4 ST21282 U 字
9 ST21292 3 ST21292 U 字銷
10 CV7378 1 CV7378 操縱桿
11 CV12906 1 CV12906 殼
12 CV12908 2 CV12908 調整螺釘
13 2318 A208 1 2318 A208 螺帽
14 2314 C045 2 2314 C045 固定螺釘
15 2134 A008 2 2134 A008 墊圈
16 CV12905 1 CV12905 殼
17 CV12911 1 CV12911 桿
18 2314 C045 1 2314 C045 固定螺釘
19 2314 C045 2 2314 C045 固定螺釘
20 2318 A308 2 2318 A308I 螺帽
21 2134 A008 4 2134 A008 墊圈
22 CV11465 1 CV11465 球窩關節
23 CV11466 1 CV11466 操縱桿
24 2318 A308 1 2318 A308I 螺帽
25 OE33278 3 OE33278 CIRCLIP
26 CV12937 1 CV12937 托架
27 CV13004 1 CV13004 固定螺釘
28 CV5353 1 CV5353 翼形螺帽
29 2314 C043 2 2314 C043 固定螺釘
30 2134 A008 2 2134 A008 墊圈

序號 零配件號 最近的零配件號 描述
ST46076 1 ST46076I 堵塞
ST49851 1 ST49851 墊圈
1 CV14573/3 1 CV14573/3 水泵
27 CV20206 1 CV20206 密封墊
28 CVK533 1 CVK533 水泵修理組件
29 CVK534 1 CVK534 水泵修理組件

序號 零配件號 最近的零配件號 描述
2 CV14732 1 CV14732 套
4 CV20055 1 CV20055 密封 -軸
5 CV14310 1 CV14310 計數器板
6 CV14574 1 CV14574 動葉輪
7 OE1376 2 OE1376 滾珠軸承
8 CV14575 1 CV14575 軸
9 CV1236 1 CV1236 間隔器
10 CV14053 1 CV14053 墊片
11 2721351 1 2721351 CIRCLIP
12 CV2235 1 CV2235 螺帽
13 CV2234 1 CV2234 螺帽
14 CV1234 1 CV1234 密封
15 CV1233 1 CV1233 圓盤
16 ST10965 1 ST10965 密封O型圈
16 2134 A008 5 2134 A008 墊圈
17 CV9217 1 CV9217 肘管
17 2131 A008 5 2131 A008 墊圈
18 ST46955 1 ST46955 固定螺釘
19 ST43502 5 ST43502 螺拴
20 ST43160 5 2134 A008 墊圈
20 CV12545 1 CV12545 管
21 ST43056 5 2131 A008 墊圈
21 OE1882 1 OE1882 夾
22 ST20133 1 ST20133I 堵塞
23 ST49891 1 ST49891 墊圈
24 CV1227 1 CV1227 水泵傳動機構
25 ST46076 1 ST46076I 堵塞
26 ST49851 1 ST49851 墊圈

序號 零配件號 最近的零配件號 描述
1 CV7548 1 CV7548 水管
3 CV5102 1 CV5102 板
4 ST43507 2 ST43507 螺拴
5 CV1726 2 CV1726 距離塊
7 ST43509 2 ST43509 螺拴
8 2131 A008 2 2131 A008 墊圈
9 2134 A008 2 2134 A008 墊圈
10 ST91248 1 ST91248 水管
11 ST46412 2 ST46412 夾
12 CV5518 1 CV5518 水管
13 ST91248 1 ST91248 水管
14 ST46412 2 ST46412 夾
42 CV17246 1 CV17246 水管
43 CV20231 1 CV20231 密封墊 - 水的出口
44 ST43504 4 ST43504 螺拴
45 2134 A008 4 2134 A008 墊圈
46 2131 A008 4 2131 A008 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV14258 2 CV14258 THERMOSTAT HOUSING
2 CV13582 2 CV13582 SEAL
3 CV20747 2 CV20747 THERMOSTAT
4 ST91232 1 ST91232 HOSE
5 ST46411 2 ST46411 CLIP
6 CV14269 1 CV14269 WATER PIPE
7 ST43515 8 ST43515 BOLT
8 ST43160 8 2134A008 WASHER
9 CV18442 1 CV18442 ADAPTOR
10 ST91204 1 ST91204 HOSE
11 ST46408 2 ST46408 CLIP
12 CV14263 1 CV14263 WATER PIPE
13 ST91239 1 ST91239 HOSE
14 ST46412 2 ST46412 CLIP
15 CV19492 2 CV72491 GASKET
16 CV20383 2 CV20383 GASKET
17 2314C045 3 2314C045 SETSCREW
18 ST43160 3 2134A008 WASHER
19 ST20106 2 ST20106 PLUG
20 ST49856 2 ST49856 WASHER
21 ST43502 8 ST43502 BOLT
22 ST43160 8 2134A008 WASHER
23 CV14273 1 CV14273 ADAPTOR
24 CV14261 1 CV14261 CONNECTION
25 ST43511 1 ST43511 BOLT
26 ST43160 1 2134A008 WASHER

序號 零配件號 最近的零配件號 描述
1 CV14258 2 CV14258 恒溫節溫器殼
2 CV13582 2 CV13582 密封
3 CV20747 2 CV20747 恒溫節溫器
4 ST91232 1 ST91232 水管
5 ST46411 2 ST46411 夾
6 CV14269 1 CV14269 水管
7 ST43515 8 ST43515 螺拴
8 2134 A008 8 2134 A008 墊圈
9 CV14272 1 CV14272 承接器
10 ST91204 1 ST91204 水管
11 ST46408 2 ST46408 夾
12 CV14263 1 CV14263 水管
13 ST91239 1 ST91239 水管
14 ST46412 2 ST46412 夾
15 CV19492 2 CV72491 密封墊
16 CV20383 2 CV20383 密封墊
17 2314 C045 3 2314 C045 固定螺釘
18 2134 A008 3 2134 A008 墊圈
19 ST20106 2 ST20106 堵塞
20 ST49856 2 ST49856 墊圈
21 ST43502 8 ST43502 螺拴
22 2134 A008 8 2134 A008 墊圈
23 CV14273 1 CV14273 承接器
24 CV14261 1 CV14261 連接
25 ST43511 1 ST43511 螺拴
26 2134 A008 1 2134 A008 墊圈
27 ST46079 2 ST46079 堵塞
28 ST49891 2 ST49891 墊圈

序號 零配件號 最近的零配件號 描述
1 CV14098Z 4 CV17509Z 汽缸蓋組件
13 OE43640 12 OE43640 堵塞
14 CV13202 4 CV13202 密封墊 - 汽缸蓋
15 ST10603 12 ST10603 密封O型圈
16 ST45778 8 ST45778 彈簧銷
17 CV1472 12 CV1472 固定螺釘

序號 零配件號 最近的零配件號 描述
2 1 汽缸蓋
3 CV20814 6 CV20814 閥座氣門座圈
3 CV21069 1 CV21069 氣門座圈
4 CV20815 6 CV20815 閥座氣門座圈
4 CV21070 1 CV21070 氣門座圈
5 OE47572 6 OE47572 氣門導管
6 OE47573 6 OE47573 氣門導管
7 CV14134 3 CV14134 套筒
8 OE43636 6 OE43636 氣門導管
9 ST20701 1 ST20701 堵塞
10 ST43322 9 ST43322 堵塞
11 ST43309 3 ST43309 堵塞
12 ST43317 9 ST43317 堵塞

序號 零配件號 最近的零配件號 描述
1 CV19417 2 CV19417 排氣岐管
3 OE42321 4 OE42321 堵塞
4 CV19419 1 CV19419 排氣岐管
5 CV19029 48 CV19029 螺拴
6 CV19418 1 CV19418 排氣岐管

序號 零配件號 最近的零配件號 描述
ST43563 6 ST43563 螺拴 U11497X U11467X
ST46633 6 ST46633 CAPSCREW U11498X
1 KRP1625 1 KRP1625 組件
1 CV20738 1 KRP1625 風扇
3 ST43561 6 ST43561 螺拴 U11466X
4 CV19909 1 CV19909 風扇駕駛滑車
5 2134 A010 6 2134 A010 墊圈
6 CV5530 1 CV5530 鍵
7 CV5324 1 CV5324 螺帽
8 CV5532 1 CV5532 墊圈
9 2318 A209 6 2318 A209 螺帽 U11467X

序號 零配件號 最近的零配件號 描述
1 CV9278/1 Z 1 CV9278/1 Z 殼
6 CV20362 1 CV20362 密封墊
7 CV5528 1 CV5528 軸
8 CV5531 1 CV5531 密封
9 ST49007 1 ST49007 CIRCLIP
10 CV5536 1 CV5536 輥軸承
11 CV5534 1 CV5534 距離塊
12 CV8963 1 CV8963 套筒
13 CV5137 1 CV5137 滾珠軸承
14 ST49007 1 ST49007 CIRCLIP
15 CV5533 1 CV5533 墊圈
16 CV5324 1 CV5324 螺帽
17 CV17402 1 CV17402 曲軸前油封
18 CV1305 2 CV1305 合釘
19 CV1306 2 CV1306 密封O型圈
20 ST43712 5 ST43712 螺拴
21 ST43164 5 ST43164 墊圈
22 2131 A016 5 2131 A016 墊圈
23 ST43515 9 ST43515 螺拴
24 2134 A008 9 2134 A008 墊圈
25 2131 A008 9 2131 A008 墊圈
26 CV7617 1 CV7617 圖釘
27 2318 A222 1 2318 A222 螺帽
28 ST43164 2 ST43164 墊圈
29 2131 A016 2 2131 A016 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CV5137 1 CV5137 BALL BEARING
CV5324 1 CV5324 NUT
CV5528 1 CV5528 SHAFT
CV5531 1 CV5531 SEAL
CV5533 1 CV5533 WASHER
CV5534 1 CV5534 DISTANCE PIECE
CV5536 1 CV5536 ROLLER BEARING
CV8963 1 CV8963 SLEEVE
CV17402 1 CV17402 SEAL - FRONT END OIL
ST49007 1 ST49007 CIRCLIP
1 CV20574 1 CV20574 FAN DRIVE HOUSING
1 CV9278/1Z 1 CV9278/1Z HOUSING
20 CV12340 1 CV20362 GASKET
21 CV24528 2 CV24528 DOWEL
22 CV1306 2 CV1306 SEAL - O RING
23 ST43712 5 ST43712 BOLT
24 ST43164 5 ST43164 WASHER
25 ST43060 5 2131A016 WASHER
26 ST43515 9 ST43515 BOLT
27 ST43160 9 2134A008 WASHER
28 ST43056 9 2131A008 WASHER
29 CV7617 1 CV7617 STUD
30 ST44609 1 2318A222 NUT
31 ST43164 2 ST43164 WASHER
32 ST43060 2 2131A016 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV9278/1Z 1 CV9278/1Z HOUSING
7 CV5528 1 CV5528 SHAFT
8 CV5531 1 CV5531 SEAL
9 ST49007 1 ST49007 CIRCLIP
10 CV5536 1 CV5536 ROLLER BEARING
11 CV5534 1 CV5534 DISTANCE PIECE
12 CV8963 1 CV8963 SLEEVE
13 CV5137 1 CV5137 BALL BEARING
14 ST49007 1 ST49007 CIRCLIP
15 CV5533 1 CV5533 WASHER
16 CV5324 2 CV5324 NUT
17 CV17402 1 CV17402 SEAL - FRONT END OIL
18 CV5530 1 CV5530 KEY
19 CV5532 1 CV5532 WASHER

威爾遜柴油發電機高壓油泵CV1445/35 R 燃油泵
序號 零配件號 最近的零配件號 描述
CV11445/35 Z 1 CV1445/35 R 燃油泵
CV11445/35 1 CV1445/35 R 燃油泵
() CV11445/35 R 1 CV1445/35 R 燃油泵

序號 零配件號 最近的零配件號 描述
ST46004 3 ST46004 套筒
ST46007 2 ST46007 套筒
ST46029 3 ST46029 螺帽
ST46032 2 ST46032 螺帽
1 CV1687 1 CV1687 油管
2 CV1952 1 CV1952 承接器
3 ST10563 4 ST10563 密封O型圈
4 ST49206 1 ST49206 墊圈
5 CV18123 1 CV18123 油管
8 ST46260 1 ST46260
9 CV13902 1 CV13902 油管
12 ST46182 1 ST46182 TEEPIECE
13 CV12673 1 CV12673
14 ST49947 2 ST49947 墊圈
15 CV13903 1 CV13903 油管
16 ST46269 1 ST46269
17 OD20320 1 OD20320 油管
18 CV19707 1 CV19707 油管
19 CV13019 1 CV13019 密封
20 CV20068 1 CV20068 金屬扣眼
21 OD20292 1 OD20292
22 0920113 2 0920113 墊圈

勞斯萊斯柴油發電機配件珀金斯3012柴油機CV17009/1 Z噴油器
序號 零配件號 最近的零配件號 描述
1 CV17009/1 Z 12 CV17009/1 Z 噴油器
4 ST10563 12 ST10563 密封O型圈
5 CV11597 12 CV11597 固定夾
6 CV18392 12 螺拴
7 CV1328 12 CV1328 墊圈
9 CV1494 12 CV1494 密封 -噴油器

序號 零配件號 最近的零配件號 描述
2 CV17010 1 CV17009/1 Z 夾持工具
3 OD19115 1 OD19115 噴油器噴嘴
8 OD19060 1 OD19060 連接
10 OD18060 1 OD18060 墊圈

序號 零配件號 最近的零配件號 描述
1 CV20524 2 CV20524
2 ST49938 6 ST49938 墊圈
3 CV20523 10 CV20523
4 ST49938 20 ST49938 墊圈
5 CV12984 1 CV12984 管 - 漏走開
8 CV13906 1 CV13906 管 - 漏走開
9 ST46004 2 ST46004 套筒
11 ST49432 1 ST49432 承接器
12 ST49851 1 ST49851 墊圈
13 CV1965 1 CV1965 夾
14 ST44436 1 ST44436 固定螺釘
15 ST44605 1 2318 A208 公制的螺帽
16 ST43160 1 2134 A008 墊圈
17 ST49432 1 ST49432 承接器
18 ST49851 1 ST49851 墊圈
19 CV9009 1 CV9009 連接
23 ST43502 2 ST43502 螺拴
24 ST43160 2 2134 A008 墊圈
25 ST49432 1 ST49432 承接器
26 ST49851 1 ST49851 墊圈
27 CV12870 1 CV12870 燃料管
28 ST46004 2 ST46004 套筒
29 ST46029 2 ST46029 螺帽
29 ST46029 2 ST46029 螺帽
30 ST11259 1 ST11259 肘管
31 ST11202 1 ST11202 螺帽
32 ST11227 1 ST11227 墊圈
33 CV12865 1 CV12865 管
34 CV7353 1 CV7353 夾
35 OD6039 1 OD6039 襯套
36 CV12990 1 CV12990 燃料管
39 ST49458 1 ST49458 承接器
40 ST49884 1 ST49851 墊圈
41 CV1615 1 OE9691 夾
42 OE9692 1 OE9692 襯套
43 ST46107 1 ST46107 肘管
44 CV12983 1 CV12983 燃料管
45 ST46007 2 ST46007 套筒
46 ST46032 2 ST46032 螺帽
47 ST11268 1 ST11268 肘管
48 ST11204 1 ST11204 螺帽
49 ST11229 1 ST11229 墊圈
50 CV12982 1 CV12982 燃料管
53 ST49449 1 ST49449 承接器
54 ST49853 1 ST49853 墊圈
55 CV11614 1 CV11614 承接器
56 0920113 2 0920113 墊圈
56 OD17531 2 0920113 墊圈
57 CV6843 1 CV6843 承接器
58 ST20528 1 ST20528 承接器
59 ST49853 1 ST49853 墊圈
60 OD14434 1 OD14434 閥
61 OD14433 1 OD14433 螺帽
62 OD3681 1 OD3681 班卓琴裝配
63 OD14432 1 OD14432 體
64 ST49891 1 ST49891 墊圈
65 ST46006 1 ST46006 套筒
66 ST46031 1 ST46031 螺帽
67 CV1595 2 CVK563 管
68 CV12718 1 CV12718 管
69 ST46004 2 ST46004 套筒
70 ST46029 2 ST46029 螺帽
71 ST46181 1 ST46181 TEEPIECE
72 ST46259 2 ST46259
73 ST46004 2 ST46004 套筒
74 ST46029 2 ST46029 螺帽
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV19668 2 CV19668 PIPE - LEAK OFF
2 CV20524 2 CV20524 BANJO BOLT
3 ST49938 4 ST49938 WASHER
4 CV20523 10 CV20523 BANJO BOLT
5 ST49938 22 ST49938 WASHER
6 CV20052 1 CV20052 PIPE - LEAK OFF
7 ST46004 2 ST46004 SLEEVE
8 ST46029 2 ST46029 NUT
9 CV20053 1 CV20053 PIPE - LEAK OFF
10 ST46004 2 ST46004 SLEEVE
11 ST46029 2 ST46029 NUT
12 CV1965 1 CV1965 CLIP
13 ST44436 1 ST44436 SETSCREW
14 ST44605 1 2318A208 METRIC NUT
15 ST43160 1 2134A008 WASHER
16 ST49432 2 ST49432 ADAPTOR
17 ST49851 2 ST49851 WASHER
18 CV9009 1 CV9009 CONNECTION
22 ST43502 2 ST43502 BOLT
23 ST43160 2 2134A008 WASHER
24 ST49432 1 ST49432 ADAPTOR
25 ST49851 1 ST49851 WASHER
26 CV12870 1 CV12870 FUEL PIPE
27 ST46004 2 ST46004 SLEEVE
28 ST46029 2 ST46029 NUT
29 ST11259 1 ST11259 ELBOW
30 ST11202 1 ST11202 NUT
31 ST11227 1 ST11227 WASHER
32 CV19010 1 CV19010 PIPE - LEAK OFF
33 ST46006 1 ST46006 SLEEVE
34 ST46031 1 ST46031 NUT
35 CV7353 1 CV7353 CLIP
36 OD6039 1 OD6039 BUSH
37 ST49458 1 ST49458 ADAPTOR
38 ST49891 2 ST49891 WASHER
39 OE9691 1 OE9691 CLIP
40 OE9692 1 OE9692 BUSH
41 CV19347 1 CV19347 FUEL PIPE
42 ST46007 2 ST46007 SLEEVE
43 ST46032 2 ST46032 NUT
44 ST49458 1 ST49458 ADAPTOR
45 CV12869 1 CV12869 FUEL PIPE
46 ST46007 2 ST46007 SLEEVE
47 ST46032 2 ST46032 NUT
48 ST49449 1 ST49449 ADAPTOR
49 ST49853 1 ST49853 WASHER
50 CV11614 1 CV11614 ADAPTOR
51 0920113 2 0920113 WASHER
51 OD17531 2 0920113 WASHER
52 CV6843 1 CV6843 ADAPTOR
53 ST20528 1 ST20528 ADAPTOR
54 ST49853 1 ST49853 WASHER
55 OD14434 1 OD14434 VALVE
56 OD14433 1 OD14433 NUT
57 OD3681 1 OD3681 BANJO FITTING
58 OD14432 1 OD14432 BODY
59 ST49884 1 ST49851 WASHER
60 OE22105 2 OE22105 DISTANCE PIECE

序號 零配件號 最近的零配件號 描述
1 CV14591 1 CV14591 高壓燃油管 A1 CYL
2 CV14592 1 CV14592 高壓燃油管 A2 CYL
3 CV14593 1 CV14593 高壓燃油管 A3 CYL
4 CV14594 1 CV14594 高壓燃油管 A4 CYL
5 CV14595 1 CV14595 高壓燃油管 A5 CYL
6 CV14596 1 CV14596 高壓燃油管 A6 CYL
7 CV14597 1 CV14597 高壓燃油管 B1 CYL
8 CV14598 1 CV14598 高壓燃油管 B2 CYL
9 CV14599 1 CV14599 高壓燃油管 B3 CYL
10 CV14600 1 CV14600 高壓燃油管 B4 CYL
11 CV14601 1 CV14601 高壓燃油管 B5 CYL
12 CV14602 1 CV14602 高壓燃油管 B6 CYL
21 OD3634 8 OD3634
22 OD11048 24 OD11048 擋板
23 ST43502 16 ST43502 螺拴
24 2134 A008 16 2134 A008 墊圈

威爾遜發電機配件OE52601 燃料過濾器總成
序號 零配件號 最近的零配件號 描述
1 CV12651 1 燃料過濾器座
4 ST43514 3 ST43514 螺拴
5 2134 A008 3 2134 A008 墊圈
6 2131 A008 3 2131 A008 墊圈
7 ST46077 1 ST46077 堵塞
8 ST49852 1 ST49852 墊圈
9 CV5594 1 CV5594 HEATSHIELD
10 ST43506 3 ST43506 螺拴
11 2134 A008 3 2134 A008 墊圈
12 CV7039 3 CV7039 距離塊
13 OD19596 2 OD19596 燃料過濾器
14 OD19444 1 OD19444 密封O型圈

威爾遜發電機配件OE52601 燃料過濾器總成
序號 零配件號 最近的零配件號 描述
1 OD19525 1 OE52601 燃料過濾器總成

序號 零配件號 最近的零配件號 描述
2 OD19718 1 OD19718 體
3 OD19723 1 OE52601 圈
4 OD19720 1 OD19720 錐形
5 1 接合
6 OD19724 3 OD19724 固定螺釘
7 OD19719 1 OE52601 手提澆斗
8 OD19724 3 OD19724 固定螺釘
9 1 密封
10 OD19722 1 26560134 堵塞
11 KRP1244 1 KRP1244 修理組件 - 燃料的過濾器
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
KRP1244 1 KRP1244 REPAIR KIT - FUEL FILTER
KRP1342 1 KRP1342 REPAIR KIT - FUEL FILTER
OD19723 1 OE52601 RING
OD19724 3 OD19724 SCREW
OD21469 3 OD21469 SCREW
2 1 BODY
2 1 BODY
3 OD21256 1 OD21256 SEAL - O RING
3 1 SEAL
4 OD21261 1 OD19720 CONE
4 OD19720 1 OD19720 CONE
5 1 BOWL
5 26560135 1 OE52601 BOWL
5 OD21552 1 OE52601 BOWL
6 26560134 1 26560134 PLUG
7 1 SEAL
7 1 SEAL
8 26560136 1 26560136 PLUG
9 OD21262 1 OD21262 CLIP
10 OD21258 1 OD21258 BOLT
11 OD21259 1 2131A010 WASHER
12 1 SEAL
12 1 SEAL

威爾遜勞斯萊斯600KW發電機配件OD17308手油泵
序號 零配件號 最近的零配件號 描述
1 OD17308 1 OD17308 提升泵
(1) OD17308R 1 OD17308R 提升泵 -交換
22 CV8843 1 CV8843 殼
23 OD19655 1 OD19655 密封墊 - 提升泵
24 CV7853 1 CV7853 PUSHROD
25 CV7854 1 CV7854 轉向裝置
26 ST10545 1 ST10545I 封閉砂條
27 ST44424 3 ST44424 固定螺釘
28 2131 A012 3 2131 A012 墊圈
29 CV20220 1 CV20220 密封墊 - 提升泵
30 ST45778 2 ST45778 彈簧銷
31 ST44630 1 ST44630 螺帽
32 ST43164 1 ST43164 墊圈
33 ST17031 1 ST17031 半圓鍵
34 CV5455 1 CV5455 電腦輔助制造
35 ST43511 4 ST43511 螺拴
36 CV18437 1 CV18437 燃料管
37 ST46260 1 ST46260
38 ST46004 2 ST46004 套筒
39 ST46029 2 ST46029 螺帽
40 ST49458 1 ST49458 承接器
41 ST49891 1 ST49891 墊圈
46 KRP1209 1 KRP1209 修補組件 - 提升泵
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 OD17308 1 OD17308 LIFT PUMP
(1) OD17308R 1 OD17308R LIFT PUMP - EXCHANGE
22 CV8843 1 CV8843 HOUSING
23 OD19655 1 OD19655 GASKET - LIFT PUMP
24 CV7853 1 CV7853 PUSHROD
25 CV7854 1 CV7854 DEFLECTOR
26 ST10545 1 ST10545I SEALING RING
27 ST44424 3 ST44424 SETSCREW
28 ST43158 3 2134A006 WASHER
29 CV20220 1 CV20220 GASKET - LIFT PUMP
30 ST45778 2 ST45778 SPRING PIN
31 ST44630 1 ST44630 NUT
32 ST43164 1 ST43164 WASHER
33 ST17031 1 ST17031 WOODRUFF KEY
34 CV5455 1 CV5455 CAM
35 ST43511 4 ST43511 BOLT
36 CV18437 1 CV18437 FUEL PIPE
37 ST46260 1 ST46260 REDUCER
38 ST46004 2 ST46004 SLEEVE
39 ST46029 2 ST46029 NUT
40 ST49458 1 ST49458 ADAPTOR
41 ST49891 1 ST49891 WASHER
47 KRP1209 1 KRP1209 REPAIR KIT - LIFT PUMP

序號 零配件號 最近的零配件號 描述
2 OD17701 1 OD17701 殼
3 OD20513 1 OD20513 汽酒共騰泵
4 OD17712 1 OD17712 扣環
5 OD17717 1 OD17717 閥
6 OD17715 1 OD17715 密封墊
7 OD17706 1 OD17706 堵塞
8 OD17707 1 OD17707 密封墊
9 OD17705 1 OD17705 彈簧
10 OD17703 1 OD17703 柱塞
11 OD17704 1 OD17704 旋刮板心軸
12 OD17702 1 OD17702 密封O型圈
13 OD17714 3 OD17714 堵塞
14 OD17715 3 OD17715 密封墊
15 OD17713 4 OD17713 彈簧
16 OD17717 3 OD17717 閥
17 OD17753 1 OD17753 挺桿
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 OD17701 1 OD17701 HOUSING
3 OD20513 1 OD20513 PRIMING PUMP
4 OD17712 1 OD17712 SNAP RING
5 OD17717 1 OD17717 VALVE
6 OD17715 1 OD17715 GASKET
7 OD17706 1 OD17706 PLUG
8 OD17707 1 OD17707 GASKET
9 OD17705 1 OD17705 SPRING
10 OD17703 1 OD17703 PLUNGER
11 OD17704 1 OD17704 SPINDLE
12 OD17702 1 OD17702 SEAL - O RING
13 OD17714 3 OD17714 PLUG
14 OD17715 3 OD17715 GASKET
15 OD17713 4 OD17713 SPRING
16 OD17717 3 OD17717 VALVE
17 OD17753 1 OD17753 TAPPET

序號 零配件號 最近的零配件號 描述
18 OD17708 1 OD17708 挺桿
19 OD17709 1 OD17709 位子
20 OD17710 1 OD17710 銷
21 OD17711 2 OD17711 臺
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
18 OD17708 1 OD17708 TAPPET
19 OD17709 1 OD17709 SEAT
20 OD17710 1 OD17710 PIN
21 OD17711 2 OD17711 BLOCK

序號 零配件號 最近的零配件號 描述
1 CV19327/1 12 活塞組件
5 CVK564 12 CVK564 活塞環組件
10 CVK502 12 CVK502 活塞環組件

序號 零配件號 最近的零配件號 描述
2 1 活塞
3 1 軸頭銷
4 CV19330 2 CV19330 CIRCLIP

序號 零配件號 最近的零配件號 描述
1 CV285 24 CV285 PUSHROD
2 CV70122 24 CV70122 挺桿
2 CV65451 24 CV70122 挺桿

Perkins柴油發動機CV24620水箱散熱器
序號 零配件號 最近的零配件號 描述
1 CV21206 1 CV24620 散熱器
2 CV17913 1 CV17913 守衛
3 CV17912 1 CV17912 守衛
4 2314 C044 12 2314 C044 固定螺釘
5 0920053 12 0920053 墊圈
6 CV69938 1 CH12541 開關
6 OD20769 1 CH12541 冷卻器水平開關
7 ST15902 12 ST15902 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV17101 1 CV17101 WATER PIPE
2 ST91216 1 ST91216 HOSE
3 ST46409 2 ST46409 CLIP
4 ST91232 1 ST91232 HOSE
5 CV69440 2 CV69440 HOSE CLIP
5 CV20900 2 CV69440 CLAMP
6 CV69440 2 CV69440 HOSE CLIP
6 CV20900 2 CV69440 CLAMP
7 CV17102 1 CV17102 WATER PIPE
8 ST91216 1 ST91216 HOSE
9 ST46409 2 ST46409 CLIP
10 ST91232 1 ST91232 HOSE
11 ST91216 2 ST91216 HOSE
12 ST46409 4 ST46409 CLIP
13 CV17103 1 CV17103 WATER PIPE
14 ST91247 1 ST91247 HOSE
15 CV69441 2 CV69441 HOSE CLIP
15 CV20901 2 CV69441 CLAMP
16 CV17109 1 CV17109 BRACKET
17 CV17108 1 CV17108 CLIP
18 ST44439 4 2314C044 SETSCREW
19 ST44605 4 2318A208 METRIC NUT
20 ST43160 4 2134A008 WASHER
21 ST43056 4 2131A008 WASHER

序號 零配件號 最近的零配件號 描述
1 CV17595 1 CV17595 水管
2 ST91216 2 ST91216 水管
3 ST46409 4 ST46409 夾
4 ST91232 2 ST91232 水管
5 ST46411 4 ST46411 夾
6 CV17596 1 CV17596 水管
7 CV17103 1 CV17103 水管
8 ST91247 1 ST91247 水管
9 ST46412 2 ST46412 夾
10 ST91216 2 ST91216 水管
11 ST46409 4 ST46409 夾
12 CV17109 1 CV17109 托架
13 CV17108 1 CV17108 夾
14 2314 C044 4 2314 C044 固定螺釘
15 2318 A208 4 2318 A208 螺帽
16 2134 A008 4 2134 A008 墊圈
17 2131 A008 4 2131 A008 墊圈
18 CV17910 2 CV17910 水管
19 ST46005 4 ST46005 套筒
20 ST46030 4 ST46030 螺帽
21 ST49439 4 ST49439 承接器
22 ST49852 4 ST49852 墊圈

珀金斯3012柴油機配件CV18695搖臂室總成
序號 零配件號 最近的零配件號 描述
1 CV18695 4 CV18695 搖臂室總成
15 ST46614 32 ST46614 CAPSCREW
16 CV14055 4 CV20376 密封墊
17 OE52035 24 CV24523 結軸
20 ST43563 32 ST43563 螺拴
21 ST43161 32 2134 A010 彈簧塾圈
22 ST43057 32 2131 A010 墊圈

序號 零配件號 最近的零配件號 描述
1 搖臂室
ST43160 1 2134 A008 墊圈
2 CV2255 8 CV2255 墊圈
3 ST47452 8 ST47452 氣門座圈
4 CV1619 2 CV1619 密封O型圈
5 CV8160/2 1 CV8160/2 Z 搖臂軸總成
8 CV1913 6 CV1913 搖臂總成
12 OE43641 3 OE43641 搖臂軸彈簧
13 CV593 1 CV593 固定螺釘
14 ST43056 1 2131 A008 墊圈

序號 零配件號 最近的零配件號 描述
6 1 搖臂軸
7 ST43305 2 ST43305 堵塞

序號 零配件號 最近的零配件號 描述
9 OE28549 1 OE28549 襯套
10 OE41699 1 OE41699 固定螺釘
11 OE42293 1 OE42293 鎖緊螺母

序號 零配件號 最近的零配件號 描述
1 CV2170 4 CV2170 搖臂室蓋
2 CV20230 4 CV20230 密封墊 -CYL。座蓋
3 2314 C045 16 2314 C045 固定螺釘
4 2134 A008 16 2134 A008 墊圈
5 2131 A008 16 2131 A008 墊圈
9 ST43504 16 ST43504 螺拴
10 2134 A008 16 2134 A008 墊圈
11 2131 A008 16 2131 A008 墊圈

威爾遜勞斯萊斯660KW發電機組氣門座圈CV21070
序號 零配件號 最近的零配件號 描述
1 CV14447 4 CV17509Z 汽缸蓋總成
(1) CV14447R 4 CV14447R 汽缸蓋組件 -EXCH

序號 零配件號 最近的零配件號 描述
2 1 汽缸蓋
3 CV20814 6 CV20814 閥座氣門座圈
3 CV21069 1 CV21069 氣門座圈
4 CV20815 6 CV20815 閥座氣門座圈
4 CV21070 1 CV21070 氣門座圈
5 OE47572 6 OE47572 氣門導管
6 OE47573 6 OE47573 氣門導管
7 CV14134 3 CV14134 套筒
8 OE43636 6 OE43636 氣門導管
9 ST20701 1 ST20701 堵塞
10 ST43322 9 ST43322 堵塞
11 ST43309 3 ST43309 堵塞
12 ST43317 9 ST43317 堵塞
13 CV17435 6 CV21058 進氣門
14 OE43638 6 OE43638 位子
15 CV11403 6 CV11403 氣門彈簧
16 OE43262 6 OE43262 位子
17 OE42571 12 OE42571 氣門鎖夾
18 CV17434 6 排氣門閥
19 OE43638 6 OE43638 位子
20 CV11403 6 CV11403 氣門彈簧
21 CV18761 6 CV18761 回轉的人
22 OE42570 12 OE42570 氣門鎖夾

威爾遜勞斯萊斯發電機配件CV65430 啟動馬達
序號 零配件號 最近的零配件號 描述
1 CV5296 1 CV65430 啟動馬達
(1) CV5296R 1 CV65430R 啟動馬達 -交換
2 ST44500 2 ST44500 固定螺釘
3 ST43164 2 ST43164 墊圈
4 ST44500 1 ST44500 固定螺釘
5 ST43164 1 ST43164 墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 OD17688 1 OD17688 LOCKNUT
3 OD15391 1 OD15391 WASHER
4 OD15390 1 OD15390 NUT
5 OD15400 1 OD15400 WASHER
6 CV3022 1 CV3022 LEAD
7 OD19782 1 OD19782 WASHER
8 OD15396 2 OD15396 BUSH
9 OD17266 1 OD17266 HOUSING
10 OD15401 4 OD15401 SETSCREW
11 OD15402 4 OD15402 WASHER
12 OD15392 1 OD15392 PLUG
13 OD16762 1 OD16762 WICK
14 OD15404 12 OD15404 WASHER
15 OD17267 1 OD17267 CONNECTION
16 OD15400 1 OD15400 WASHER
17 OD15397 1 OD15397 CIRCLIP
18 OD17268 4 OD17268 HOLDER
19 OD15415 8 OD15415 BRUSH
20 OD15408 4 OD15408 SCREW
21 OD15407 4 OD15407 WASHER
22 OD15406 4 OD15406 WASHER
23 OD15405 4 OD15405 BUSH
24 CV4828 1 CV4828 CONNECTION
25 OD15412 8 OD15412 SCREW
26 OD15411 4 OD15411 PLATE
27 OD15417 1 OD15417I SEAL - O RING
28 OD15399 1 OD15399 BUSH
29 OD17269 1 OD17269 BAND
30 OD17270 2 OD17270 SCREW
31 OD15419 2 OD15419 NUT
32 OD15410 1 OD15410 WASHER
33 OD15409 1 OD15409 WASHER
34 OD21480 1 OD21480 ARMATURE
35 OD15423 1 OD15423 WASHER
36 OD15424 1 OD21474 WASHER
37 CV3024 1 CV3024 CASE ASSEMBLY
38 CV3027 1 CV3027 SCREW
39 OD20701 1 OD20701 INSULATOR
40 CV3026 4 CV3026 MAGNETIC PLATE
41 CV3025 1 CV3025 COIL
42 OD16748 8 OD16748 SCREW
43 OD15422 2 OD15422 SCREW
44 CV3021 1 CV3021 CONNECTION
45 OD17688 3 OD17688 LOCKNUT
46 CV3030 1 CV3030 WASHER
47 OD20703 1 OD20703 INSULATOR
48 OD15397 1 OD15397 CIRCLIP
49 OD20702 1 OD20702 INSULATOR
50 OD15390 1 OD15390 NUT
51 OD15392 1 OD15392 PLUG
52 OD16762 1 OD16762 WICK
53 OD19783 1 OD19783I SLEEVE
54 OD16755 1 OD16755 SEAL - O RING
55 OD15417 1 OD15417I SEAL - O RING
56 OD17275 1 OD17275 HOUSING
57 OD16754 5 OD16754 SCREW
58 OD15402 5 OD15402 WASHER
59 OD16753 1 Check History LEVER
60 OD16752 1 OD16752 SEAL - O RING
61 OD16751 1 OD16751 SCREW
62 OD17276 1 OD17276 WASHER
63 OD16765 1 OD16765 BOOT
64 OD16756 1 OD16756 SCREW
65 CV3031 1 CV3031 LEVER
66 OD16747 1 OD16747I ROLL PIN
67 OD15424 2 OD21474 WASHER
68 OD16758 1 Y97/00032 DRIVE
69 CV4838 1 CV4838 THRUST WASHER
70 CV3032 2 CV3032 ARM
71 OD16759 1 OD16759 SEAL - O RING
72 OD20704 1 OD20704 HOUSING
73 OD16761 6 OD16761 SCREW
74 OD15399 1 OD15399 BUSH
75 OD16764 1 OD16764 SOLENOID

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
77 OD17291 1 OD17291 MAGNET
78 OD17297 1 OD16764 PLUNGER
79 OD17282 1 OD17282 SPRING
80 OD18509 1 OD18509 SHAFT
81 OD17252 3 OD17252 WASHER
83 OD17283 1 OD17283 SPRING
84 OD17284 1 OD17284 CONTACT
85 OD17285 1 OD17285 BUSH
86 OD17287 1 OD17287 INSULATOR
87 OD17185 1 OD17185 WASHER
88 OD17288 1 OD17288 NUT
89 1 TERMINAL
90 1 TERMINAL
91 OD17286 1 OD17286 GUARD
92 2 TERMINAL
93 2 SCREW
94 OD17292 2 OD17292 INSULATOR
95 OD17279 2 OD17279 RING
96 OD17252 1 OD17252 WASHER
98 OD17196 2 OD17196 NUT
99 OD17245 1 OD17245 BASE
100 OD17231 1 OD17231 SCREW
101 OD17298 1 OD17298 SCREW
102 OD17299 1 OD17299 SCREW
103 OE52575 4 OE52575 SEAL - O RING
104 OD17280 2 OD17280 WASHER
105 OD15391 2 OD15391 WASHER
106 OD15390 2 OD15390 NUT

珀金斯Perkins3012 CV12350油底殼
序號 零配件號 最近的零配件號 描述
1 CV2852/1 1 CV12350 油底殼
4 CV20214 1 CV20214I 油底殼
5 ST43586 4 ST43586 螺拴
6 2134 A010 4 2134 A010 墊圈
7 2131 A010 4 2131 A010 墊圈
8 ST43561 20 ST43561 螺拴
9 2134 A010 20 2134 A010 墊圈
10 2131 A010 20 2131 A010 墊圈
11 CV985 1 CV985 堵塞
12 ST49206 1 ST49206 墊圈
13 CV2874 1 CV2874 過濾器
14 CV1275 7 CV1275 自己的出鐵固定螺釘

序號 零配件號 最近的零配件號 描述
1 CV13339 1 CV13339 油底殼承接器
5 CV20213 1 CV20213 油底殼
6 ST43502 2 ST43502 螺拴
7 2134 A008 2 2134 A008 墊圈
8 2131 A008 2 2131 A008 墊圈
9 ST10619 1 ST10619 密封O型圈
10 ST46633 2 ST46633 CAPSCREW
11 2134 A010 2 2134 A010 墊圈
12 2131 A010 2 2131 A010 墊圈
13 ST43561 12 ST43561 螺拴
14 2134 A010 12 2134 A010 墊圈
15 2131 A010 12 2131 A010 墊圈
16 ST46633 5 ST46633 CAPSCREW
17 2134 A010 5 2134 A010 墊圈
18 ST43558 14 ST43558I 螺拴
19 2134 A010 14 2134 A010 墊圈
20 2131 A010 14 2131 A010 墊圈

珀金斯perkins發電機增壓器總成 CV13727/1Z
威爾遜660KW發電機配件CV13727/1 Z渦輪增壓器
序號 零配件號 最近的零配件號 描述
1 CV13727/1 Z 2 CV13727/1 Z 渦輪增壓器
25 CV378 8 CV378 圖釘
26 CV235 8 CV235 螺帽
27 2131 A010 8 2131 A010 墊圈
28 CV13795 2 CV13795 密封墊 -排氣
29 KRP1249 1 KRP1249 修補組件 -渦輪增壓器
30 CV13728 2 CV13728 手風箱
31 ST43604 6 ST43604 螺拴
32 CV1343 6 CV1343 公制的螺帽
33 2131 A012 6 2131 A012 墊圈
34 CV5654 1 CV5654 托架
35 CV5655 1 CV5655 托架
36 CV235 12 CV235 螺帽
37 2131 A010 12 2131 A010 墊圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CV13727/1Z 2 CV13727/1Z TURBOCHARGER
36 CV235 12 CV235 NUT
37 ST43057 12 2131A010 WASHER
38 CV13795 2 CV13795 GASKET - EXHAUST
45 CV378 8 CV378 STUD
46 CV235 8 CV235 NUT
47 ST43057 8 2131A010 WASHER
90 KRP1249 1 KRP1249 REPAIR KIT - TURBOCHARGER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 HOUSING
3 OE45224 1 OE45224 COUPLING
4 CV3017 1 CV3017 LOCKNUT
5 OE45510 1 OE45510 HOUSING
27 1 HOUSING
28 OE45275 4 OE45275 CLAMP
29 OE45220 12 OE45220 BOLT
35 CV378 6 CV378 STUD
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
6 1 HOUSING
7 OE45507 1 OE45507 BACKPLATE
8 OE45508 1 OE45508 SEAL - O RING
9 OE41325 2 OE41325 RING
10 OE45283 1 OE45283 THRUST BEARING
11 OE45509 3 OE45509 SCREW
12 OE45284 2 KRP1249 BEARING
13 OE45235 3 OE45235 RING
14 OE45281 1 OE45281 SHROUD
15 CV3005 1 CV3005 RING
22 OE45230 1 OE45230 SPACER
23 OE45234 1 OE45234 COLLAR
24 OE45280 1 OE45280 WHEEL
25 CV9940 1 CV9940 WHEEL
26 OE45188 1 OE45188 LOCKNUT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
16 OE48586 2 OE48586 STRAP
17 ST44436 2 ST44436 SETSCREW
18 ST43160 2 2134A008 WASHER
36 CV17963 1 CV17963 BRACKET
37 ST46633 2 ST46633 CAPSCREW
38 ST43161 2 2134A010 SPRING WASHER
39 OE49123 1 OE49123 MOUNTING
40 ST44605 2 2318A208 METRIC NUT
41 ST43160 2 2134A008 WASHER
42 ST43056 2 2131A008 WASHER
44 ST43059 1 ST43059 WASHER
45 OE49123 1 OE49123 MOUNTING
46 ST44605 2 2318A208 METRIC NUT
47 ST43160 2 2134A008 WASHER
48 ST43056 2 2131A008 WASHER

序號 零配件號 最近的零配件號 描述
2 1 殼
3 OE45224 1 OE45224 聯結器
4 CV3017 1 CV3017 鎖緊螺母
5 OE45510 1 OE45510 殼
21 1 殼
22 OE45275 4 OE45275 固定夾
23 OE45220 12 OE45220 螺拴
24 CV2533 6 CV2533 圖釘
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CV7361 2 CV7361 DISTANCE PIECE U950398A
ST46076 1 ST46076I PLUG
ST49851 1 ST49851 WASHER
1 CV20188 1 CV20188 TURBO FEED PIPE
4 ST46007 1 ST46007 SLEEVE
5 ST46032 1 ST46032 NUT
6 OE50898 2 OE50898 GASKET
7 ST43504 2 ST43504 BOLT
8 0920053 2 0920053 WASHER
9 CV19552 1 CV19552 OIL PIPE
14 ST43504 2 ST43504 BOLT
15 ST16259 2 0920053 WASHER
16 ST46182 1 ST46182 TEEPIECE
17 CV20187 1 CV20187 OIL PIPE
20 ST49853 1 ST49853 WASHER
21 CV18096 1 CV18096 OIL PIPE
22 OE50899 2 OE50899 GASKET - BLANKING PLATE
23 ST44441 2 2314C045 SETSCREW
24 ST16259 2 0920053 WASHER
25 ST44439 2 2314C044 SETSCREW
26 ST16259 2 0920053 WASHER
27 ST44439 2 2314C044 SETSCREW
28 ST16259 2 0920053 WASHER
29 CV18097 1 CV18097 OIL PIPE
30 OE50899 2 OE50899 GASKET - BLANKING PLATE
31 ST44441 2 2314C045 SETSCREW
32 ST16259 2 0920053 WASHER
33 ST49458 1 ST49458 ADAPTOR
34 ST49891 1 ST49891 WASHER
35 OE9691 1 OE9691 CLIP
36 OE9692 1 OE9692 BUSH
37 CV1726 1 CV1726 DISTANCE PIECE
38 ST43506 1 ST43506 BOLT
39 ST16259 1 0920053 WASHER
40 OE9691 2 OE9691 CLIP
41 OE9692 2 OE9692 BUSH
42 ST43511 2 ST43511 BOLT
43 0920053 2 0920053 WASHER
44 OE9691 1 OE9691 CLIP

序號 零配件號 最近的零配件號 描述
6 1 殼
7 OE45507 1 OE45507 背板
8 OE45508 1 OE45508 密封O型圈
9 OE41325 2 OE41325 圈
10 OE45230 1 OE45230 間隔器
11 OE45234 1 OE45234 軸環
12 OE45283 1 OE45283 止推軸承
13 OE45509 3 OE45509 固定螺釘
14 2 軸承
15 OE45235 3 OE45235 圈
16 OE45281 1 OE45281
17 CV3005 1 CV3005 圈
18 OE45280 1 OE45280 輪
19 CV9940 1 CV9940 輪
20 OE45188 1 OE45188 鎖緊螺母
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
10 ST46007 1 ST46007 SLEEVE
10 1 SLEEVE
11 ST46032 1 ST46032 NUT
11 1 NUT
12 ST46076 1 ST46076I PLUG
13 ST49851 1 ST49851 WASHER

序號 零配件號 最近的零配件號 描述
1 CV13732 1 CV13732 油管
2 OE9691 2 OE9691 夾
3 OE9692 2 OE9692 襯套
4 ST46076 1 ST46076I 堵塞
5 ST49851 1 ST49851 墊圈
6 ST44444 2 ST44444 固定螺釘
7 2134 A008 2 2134 A008 墊圈
8 DV807 2 OE50898 密封墊
9 ST46007 1 ST46007 套筒
10 ST46032 1 ST46032 螺帽
11 CV12871 1 CV12871 油管
12 ST46008 1 ST46008 套筒
13 ST46033 1 ST46033 螺帽
14 ST46183 1 ST46183 TEEPIECE
15 OE9691 1 OE9691 夾
16 ST46269 1 ST46269
17 ST46008 1 ST46008 套筒
18 ST46033 1 ST46033 螺帽
19 ST49459 1 ST49459 承接器
20 ST49891 1 ST49891 墊圈
21 CV13733 1 CV13733 油管
24 2314 C044 2 2314 C044 固定螺釘
25 2134 A008 2 2134 A008 墊圈
26 ST20557 1 ST20557 承接器
27 CV13729 1 CV13729 油管
28 OE9691 1 OE9691 夾
29 OE9692 1 OE9692 襯套
30 CV1726 1 CV1726 距離塊
31 ST46076 1 ST46076I 堵塞
32 ST49851 1 ST49851 墊圈
33 ST44444 2 ST44444 固定螺釘
34 2134 A008 2 2134 A008 墊圈
35 ST43506 1 ST43506 螺拴
36 2134 A008 1 2134 A008 墊圈
37 ST46007 1 ST46007 套筒
38 ST46032 1 ST46032 螺帽
39 ST49449 1 ST49449 承接器
40 ST49853 1 ST49853 墊圈
41 CV17106 1 CV17106 油管
42 OE50899 2 OE50899 切片密封墊的板
43 2314 C044 2 2314 C044 固定螺釘
44 2134 A008 2 2134 A008 墊圈
45 CV20236 1 CV20236I 密封墊
46 ST43556 2 ST43556 螺拴
47 2134 A010 2 2134 A010 墊圈
48 ST49891 1 ST49891 墊圈
49 CV7361 2 CV7361 距離塊
50 ST43511 2 ST43511 螺拴
51 2134 A008 2 2134 A008 墊圈

珀金斯3012柴油機配件CV21058進氣門
序號 零配件號 最近的零配件號 描述
1 CV17435 24 CV21058 進氣門
2 OE43638 24 OE43638 位子
3 CV11403 24 CV11403 氣門彈簧
4 OE43262 24 OE43262 位子
5 OE42571 48 OE42571 氣門鎖夾
6 CV17434 24 排氣門閥
7 OE43638 24 OE43638 位子
8 CV11403 24 CV11403 氣門彈簧
9 CV18761 24 CV18761 回轉的人
10 OE42570 48 OE42570 氣門鎖夾
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CV1209 6 CV1209 SNAP RING
3 ST10614 4 ST10614 SEAL - O RING
4 ST10609 8 ST10609 SEAL - O RING
5 CV19541 1 CV19541 GASKET
6 CV20742 1 CV20742 GASKET - TIMING CASE
7 CV20397 1 CV20397 GASKET
8 CV17402 1 CV17402 SEAL - FRONT END OIL
9 ST10615 19 ST10615 SEAL - O RING
10 CV20362 1 CV20362 GASKET
11 CV20206 1 CV20206 GASKET
12 CV20398 1 CV20398 GASKET
13 CV20231 1 CV20231 GASKET - WATER OUTLET
14 CV20232 4 CV72181 GASKET
15 CV19540 1 CV19540 GASKET - BLANKING PLATE
16 CV68115 1 CV68115 GASKET
17 CV17404 1 CV17404 SEAL - REAR END OIL
18 CV20213 1 CV20213 GASKET - SUMP
19 CV20214I 1 CV20214I GASKET - SUMP
19 CV20214 1 CV20214I GASKET - SUMP
20 CV334 1 CV334 TAB WASHER
21 CV390 1 CV390 SEAL
22 CV20218 2 CV20218 GASKET
23 CV5531 1 CV5531 SEAL
24 CV20222 1 CV20222 GASKET
25 CV20234 2 CV20234 GASKET
26 CV20235 2 CV20235 GASKET
27 CV20236I 1 CV20236I GASKET
27 CV20236 1 CV20236I GASKET
28 2413695 2 2413695 SEAL - O RING
29 ST10563 4 ST10563 SEAL - O RING
30 ST49209 6 ST49209 WASHER
31 ST10616 2 ST10616 SEAL - O RING
32 ST10619 2 ST10619 SEAL - O RING
33 ST49852 5 ST49852 WASHER
34 ST49853 4 ST49853 WASHER
35 ST49891 1 ST49891 WASHER
36 ST49206 1 ST49206 WASHER
37 ST49856 2 ST49856 WASHER
38 ST49859 1 ST49859 WASHER
39 OE50898 2 OE50898 GASKET
40 OE50899 2 OE50899 GASKET - BLANKING PLATE
41 24865083 2 24865083 SEAL - O RING

久久人人爽人人爽人人片av麻烦|人人澡人摸人人添欧美|亚洲国产成人7777在线播放|一级特黄aa黑寡妇大片欧美|

勞斯萊斯P625E柴油發電機配件CV14543凸輪軸
