首頁 產品展示>perkins發動機CH10964

perkins發動機CH10964

我們是專業的perkins發動機CH10964凸輪軸配件銷售服務商,想要了解更多的perkins發動機CH10964凸輪軸配件類型和資料,請現在聯系我們!寧波日興動力科技有限公司
產品咨詢

詳細描述

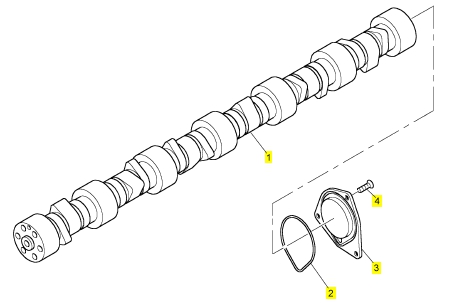

perkins發動機CH10964 凸輪軸配件

項序 零配件號碼 最近的零配件號碼  描述

1 CH10964 1 CH10964 凸輪軸

1 CH10964 1 CH10964 凸輪軸

1 CH12778 1 CH12778 凸輪軸

2 CH10587 1 CH10587 密封墊O形圈

3 CH10588 1 CH10588 端蓋

4 CH10589 3 CH10589 公制的螺旋

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH10964 1 CH10964 CAMSHAFT

1 CH10964 1 CH10964 CAMSHAFT

1 CH12778 1 CH12778 CAMSHAFT

2 CH10587 1 CH10587 SEAL - O RING

3 CH10588 1 CH10588 END COVER

4 CH10589 3 CH10589 SCREW METRIC

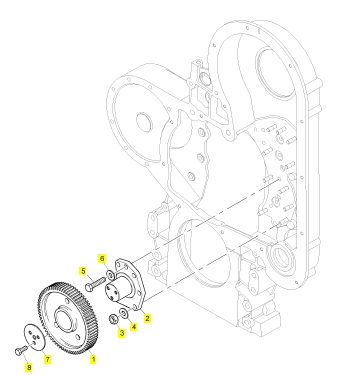

項序 零配件號碼 最近的零配件號碼  描述

1 CH10635 1 CH10635 惰輪傳動機構

2 CH10623 1 CH10623 螺木樁

3 CH10614 1 CH10614 推力板

4 CH10621 3 CH10621 螺拴

5 CH10609 1 CH10609 螺拴

6 CH10615 1 CH10615 墊圈

7 CH10615 5 CH10615 墊圈

8 CH10290 5 CH10798 螺帽

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH10635 1 CH10635 IDLER GEAR

2 CH10623 1 CH10623 STUB

3 CH10614 1 CH10614 THRUST PLATE

4 CH10621 3 CH10621 BOLT

5 CH10609 1 CH10609 BOLT

6 CH10615 1 CH10615 WASHER

7 CH10615 5 CH10615 WASHER

8 CH10290 5 CH10798 NUT

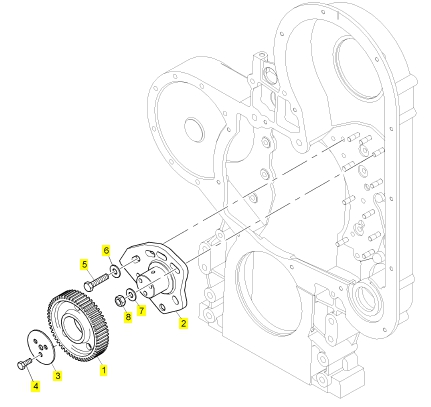

項序 零配件號碼 最近的零配件號碼  描述

1 CH10632 1 CH10632 惰輪傳動機構

2 CH10624 1 CH10624 螺木樁

3 CH10290 5 CH10798 螺帽

4 CH10615 5 CH10615 墊圈

5 CH10609 1 CH10609 螺拴

6 CH10615 1 CH10615 墊圈

7 CH10614 1 CH10614 推力板

8 CH10621 3 CH10621 螺拴

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH10632 1 CH10632 IDLER GEAR

2 CH10624 1 CH10624 STUB

3 CH10290 5 CH10798 NUT

4 CH10615 5 CH10615 WASHER

5 CH10609 1 CH10609 BOLT

6 CH10615 1 CH10615 WASHER

7 CH10614 1 CH10614 THRUST PLATE

8 CH10621 3 CH10621 BOLT

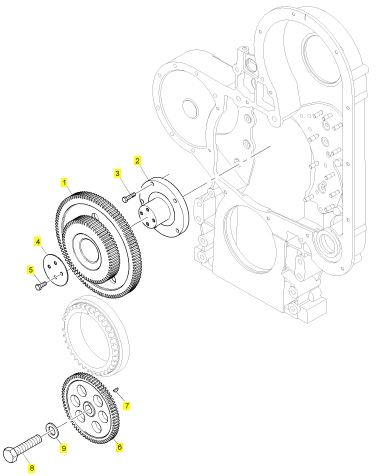

項序 零配件號碼 最近的零配件號碼  描述

1 CH10963 1 CH10963 惰輪傳動機構

2 CH10876 1 CH10876 螺木樁

3 CH10611 5 CH10611 螺拴

4 CH10619 1 CH10619 推力板

5 CH10621 4 CH10621 螺拴

6 CH10622 1 CH10622 油泵傳動機構

7 CH10005 1 CH10005 半圓鍵

8 CH10609 1 CH10609 螺拴

9 CH10610 1 CH10610 墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH10963 1 CH10963 IDLER GEAR

2 CH10876 1 CH10876 STUB

3 CH10611 5 CH10611 BOLT

4 CH10619 1 CH10619 THRUST PLATE

5 CH10621 4 CH10621 BOLT

6 CH10622 1 CH10622 OIL PUMP GEAR

7 CH10005 1 CH10005 WOODRUFF KEY

8 CH10609 1 CH10609 BOLT

9 CH10610 1 CH10610 WASHER

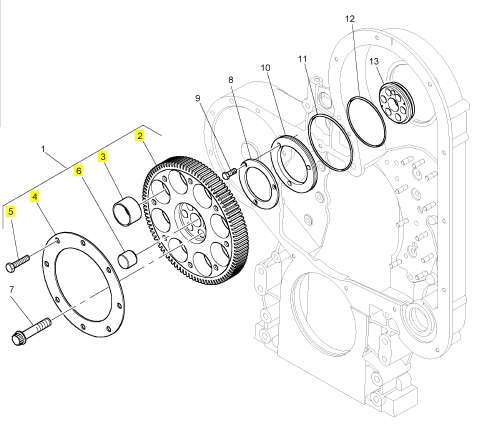

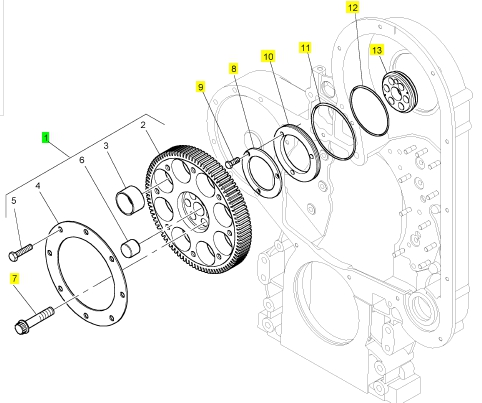

項序 零配件號碼 最近的零配件號碼  描述

1 T400235 1 T400235 凸輪軸傳動機構

7 CH10616 6 CH10616 螺拴

8 CH10617 1 CH10617 推力板

9 CH10618 3 CH10618 螺拴

10 CH10625 1 CH10625 密封墊

11 CH10620 1 CH10620 密封墊O形圈

12 CH10612 1 CH10612 密封墊O形圈

13 CH10627 1 CH10627 承接器

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 T400235 1 T400235 CAMSHAFT GEAR

7 CH10616 6 CH10616 BOLT

8 CH10617 1 CH10617 THRUST PLATE

9 CH10618 3 CH10618 BOLT

10 CH10625 1 CH10625 GASKET

11 CH10620 1 CH10620 SEAL - O RING

12 CH10612 1 CH10612 SEAL - O RING

13 CH10627 1 CH10627 ADAPTOR

項序 零配件號碼 最近的零配件號碼  描述

2 1 凸輪軸傳動機構

3 8 滾子

4 1 保有板

5 CH10609 8 CH10609 螺拴

6 CH10641 1 CH10641 合釘

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 CAMSHAFT GEAR

3 8 ROLLER

4 1 RETAINING PLATE

5 CH10609 8 CH10609 BOLT

6 CH10641 1 CH10641 DOWEL
